Isotra LARRA 30 Measurement And Assembly Manual

Interior roller blind
Hide thumbs

Advertisement

Quick Links

Download this manual
MEASUREMENT AND ASSEMBLY MANUAL
INTERIOR ROLLER BLIND LARRA 30, LARRA
30mp, LARRA 30 box

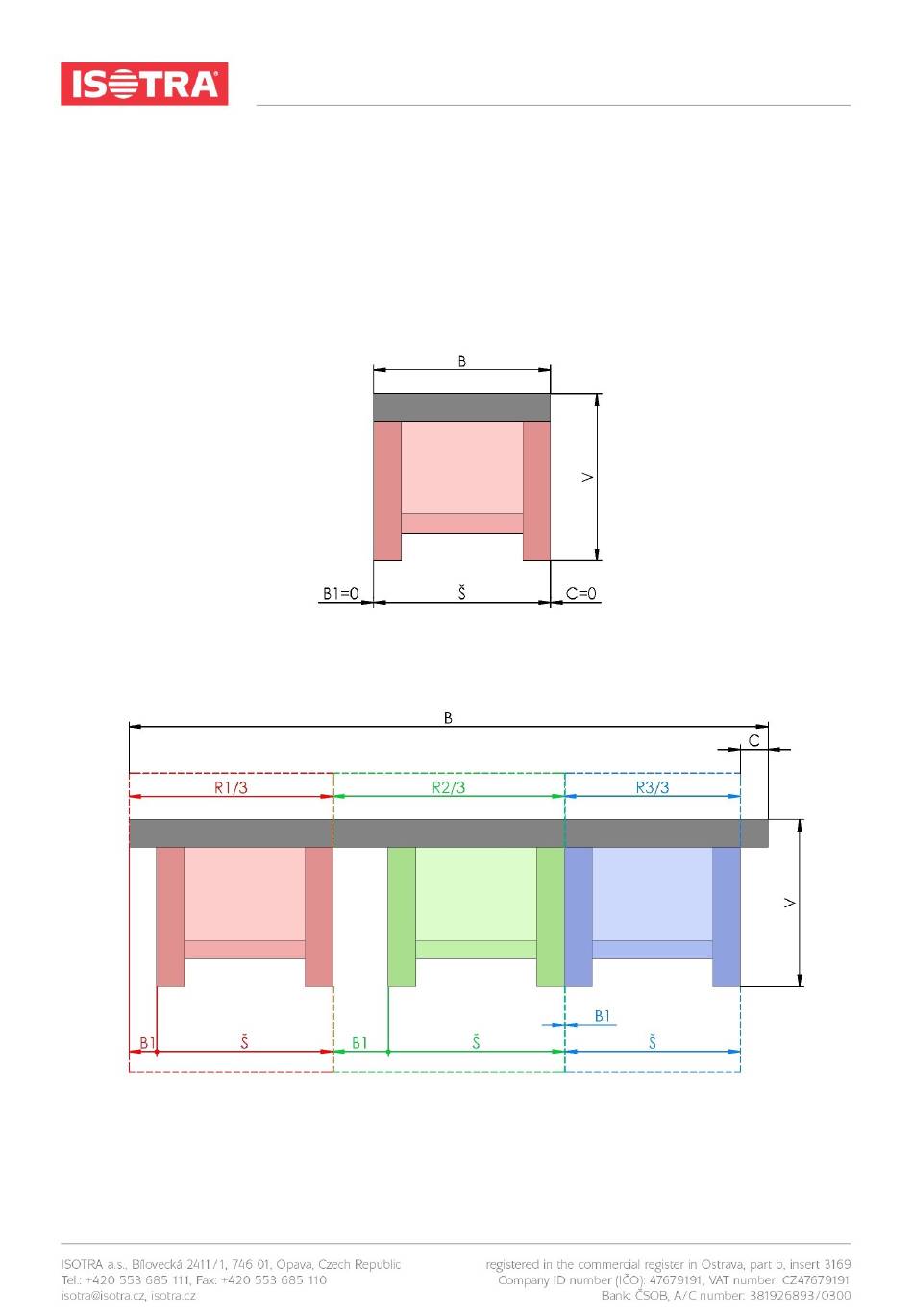

1. MEASUREMENTS
Sole roller blind
More roller blinds in one cassette
It is possible to place the roller blind into lining or above the opening (on the wall or ceiling).
Manual validity: 1. 8. 2019
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LARRA 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Isotra LARRA 30

Summary of Contents for Isotra LARRA 30

  • Page 1 MEASUREMENT AND ASSEMBLY MANUAL INTERIOR ROLLER BLIND LARRA 30, LARRA 30mp, LARRA 30 box 1. MEASUREMENTS Sole roller blind More roller blinds in one cassette It is possible to place the roller blind into lining or above the opening (on the wall or ceiling).
  • Page 2 MEASUREMENT AND ASSEMBLY MANUAL THE WIDTH AND HEIGHT ARE MEASURED IN THE FOLLOWING MANNER: Sole roller blind:  B – Cassette length – value is same as Š – for LAR30 and LAR30mp is always 0  Š – Width of blind for installation into lining. You shall measure real width of the opening, deduct 5mm and put this value into the order form.
  • Page 3 MEASUREMENT AND ASSEMBLY MANUAL Gaps deduction for real size of fabric Sole roler blind More roller blinds in one cassette Gaps sizes may vary with +/- 5mm tolerance Manual validity: 1. 8. 2019...
  • Page 4 MEASUREMENT AND ASSEMBLY MANUAL Standard sizes LARRA Fabric Width (mm) Height (mm) weight thickness min.* max. min. max. up to 0,3 mm 300/600 2200 4600 up to 170 g/m up to 0,5 mm 300/600 2200 3500 up to 0,7 mm 300/600 2200 2400...

  • Page 5: Assembly Tools

    MEASUREMENT AND ASSEMBLY MANUAL 2. ASSEMBLY Please make the assembly only according to this manual. You can avoid useless mounting failures or other concerning inconveniences. ASSEMBLY TOOLS:  Tape measure  Spirit level  Electric drill as per the source of surface ...
  • Page 6 MEASUREMENT AND ASSEMBLY MANUAL ROLLER BLIND ON SEPARATE BRACKETS:  Roller blind LARRA with separate brackets is delivered in disassembled condition  Check the roller blind sizes  Make the mounting according to the picture manual below  Check end positions, brake function and overall functionality of the roller blind. Manual validity: 1.
  • Page 7 MEASUREMENT AND ASSEMBLY MANUAL Assembly: Manual validity: 1. 8. 2019...
  • Page 8 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 9 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 10 MEASUREMENT AND ASSEMBLY MANUAL Disassembly: Manual validity: 1. 8. 2019...
  • Page 11 MEASUREMENT AND ASSEMBLY MANUAL ROLLER BLIND WITH ASSEMBLY PROFILE:  Roller blind LARRA with mounting profile is delivered in assembled condition directly from the production plant.  Check the roller blind sizes  Make the mounting according to the picture manual below ...
  • Page 12 MEASUREMENT AND ASSEMBLY MANUAL Assembly: Manual validity: 1. 8. 2019...
  • Page 13 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 14 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 15 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 16 MEASUREMENT AND ASSEMBLY MANUAL Disassembly: Manual validity: 1. 8. 2019...
  • Page 17 MEASUREMENT AND ASSEMBLY MANUAL ROLLER BLIND WITH CASSETTE:  Roller blind LARRA with cassette is delivered in disassembled condition  The Velcro, which the box is pulled, we do not remove. The Velcro remove after assembly.  Check the roller blind sizes ...
  • Page 18 MEASUREMENT AND ASSEMBLY MANUAL Assembly: Manual validity: 1. 8. 2019...
  • Page 19 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 20 MEASUREMENT AND ASSEMBLY MANUAL   Manual validity: 1. 8. 2019...
  • Page 21 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 22 MEASUREMENT AND ASSEMBLY MANUAL Manual validity: 1. 8. 2019...
  • Page 23 MEASUREMENT AND ASSEMBLY MANUAL Disassembly: CLICK 8 mm Manual validity: 1. 8. 2019...
  • Page 24 MEASUREMENT AND ASSEMBLY MANUAL ATTENTION According to the norm EN 13 120 we inform you about potential danger which may occur while using control cords and chains. Safety instructions / Strangulation danger ATTENTION Loops made of control cords, chains and tapes can cause danger of strangulation.

This manual is also suitable for:

Larra 30mpLarra 30 box
