Contents/Pre-Installation Checklist

Major components of DynaPro Go are shown in Figure 1. In addition to the components shown,
the device has a tamper trigger recessed in the bottom that is intended for manufacturer use only.
DO NOT INSERT ANYTHING INTO THE TAMPER TRIGGER HOLE! DOING SO WILL ERASE ALL INJECTED KEYS;
THE DEVICE WILL STOP FUNCTIONING, AND WILL HAVE TO BE RETURNED TO THE MANUFACTURER FOR RE-
CONFIGURATION.
Figure 2.
Device in Optional Charging cradle

Charging the Device

DynaPro Go's power comes from an on-board rechargeable battery when it is not connected to a
host's USB port. The battery must be periodically recharged by connecting it to a charging cradle, a
USB port, or a stand-alone USB charger. Charging the device requires a micro-USB cable 6 feet (1.8
Meter) maximum length to ensure proper battery charging.
To charge the device in the charging cradle for power only (no USB communication):
1. Connect the charging cradle to a USB port or to a USB charger.
2. Place the device in the charging cradle with the charging contacts pointing into the charging
cradle and the LCD display facing front.
Both the charging cradle and the device require a USB power supply that can provide at least
500mA @ 5V.
DynaPro Go's Lithium Polymer (LiPo) battery may be charged from MagTek's charging cradle or a
USB charger until the device's battery indicator shows maximum charge has been reached. The
device will stop charging its battery automatically.
Registered to ISO 9001:2015 © Copyright 2019 MagTek, Inc. PN D998200135 rev 60 3/19

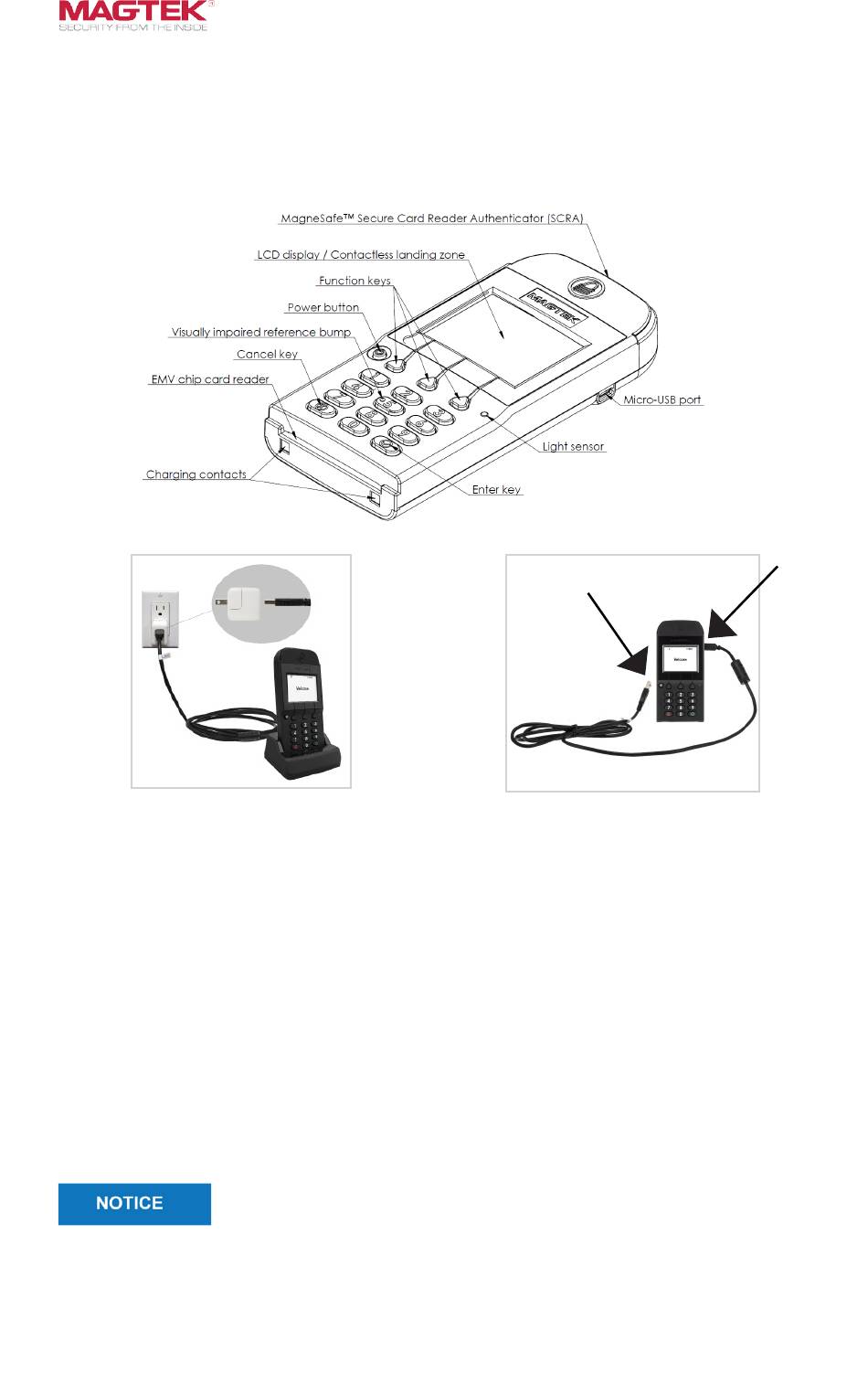

Figure 1. Major Components Diagram
MAGTEK RECOMMENDS CHARGING ATLEAST EVERY
6 MONTHS TO MAXIMIZE OPERATION.
Figure 3. USB connection
