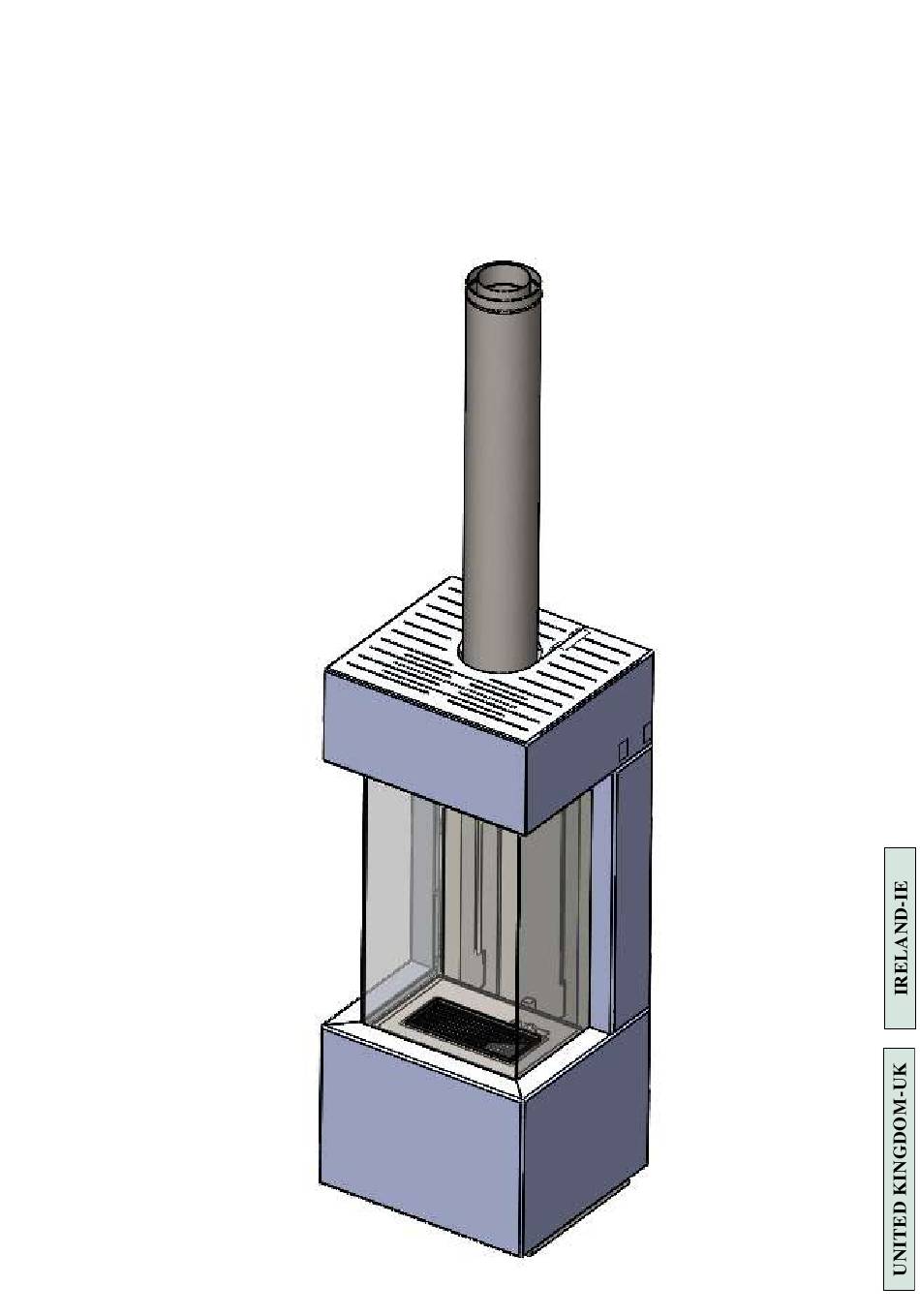

- Page 1 Pag.1 PLACEMENT INSTRUCTIONS Trimline 38 FS Pano mantle...
- Page 2 / mantle. Your sales receipt is your warranty. 1.0 General The appliance is supplied in two parts uk, the Trimline 38 panorama fireplace and Trimline 38 FS Pano mantle. As for the gas equipment connection see the requirements associated with the fireplace.
- Page 3 Pag.3 3.0 Placement requirements. Before placing the mantle, you must first mount the Control box on the underside of the gas fire unit Place the gas fire on the back side so that the bottom is easily accessible. Attach the two provided strips at the Control box. (See Figure A) Drill four holes in the tubes under the unit as shown and attach the Control box.
- Page 4 Pag.4 4.0 Mounting the mantle Position the unit before the wall (or indipendent situation at the desired position). The unit must always be placed in front of a non-flammable wall (also no wallpaper or similar material). The mantle may be placed adjacent to the wall. If desired, the device can also be placed at a short distance from the wall.
- Page 5 Pag.5 Then place the plinth (2) around the adjustable legs back until it stops.
- Page 6 Pag.6 Slide Mantle cautious about the finishing edge of the fireplace. Place the cover (3) back on top of the mantle. Note: When the unit is completely independent set then also the cover (4) can be placed. Do not place the cover (4) if the device is placed against or in small distance from the wall. maintenance: If there should be periodic maintenance on the gas fire unit, the mantle can be taken away easily.
- Page 7 Pag.7...
- Page 8 Pag.8 Thermocet International B.V. Laagerfseweg 31 3931 PC Woudenberg www.thermocet.nl...
