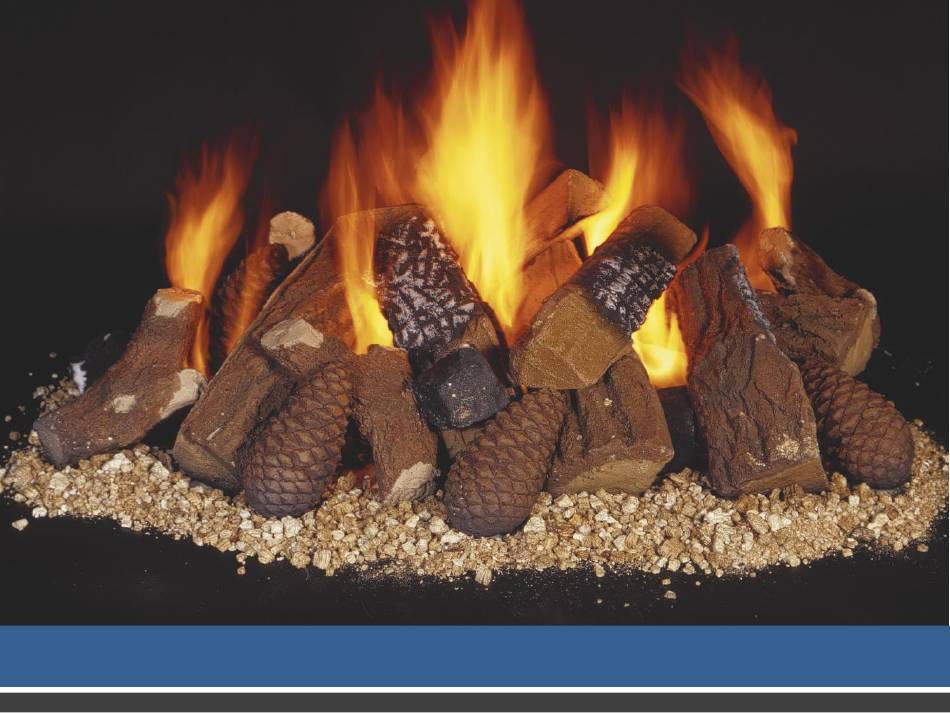

- Page 1 INSTALLATION TOPPER GASFIRE...
- Page 2 Topper Gasfires assortment build up: 3 BOX SYSTEM BOX 1: BURNER(TOPPER CERAMIC) CERAMIC BURNERS TOPPER OPEN GASFIRES NATURAL GAS G20-25 121000002413 TOPPER CU 2413 G25/G20 NL/NO/ES/PT/DE/IE/GB/BE/FR/IT 121000002424 TOPPER CU 2424 G25/G20 NL/NO/ES/PT/DE/IE/GB/BE/FR/IT 121000003613 TOPPER CU 3613 G25/G20 NL/NO/ES/PT/DE/IE/GB/BE/FR/IT 121000004813 TOPPER CU 4813 G25/G20 NL/NO/ES/PT/DE/IE/GB/BE/FR/IT...
- Page 3 Topper Gasfires assortment build up: 3 BOX SYSTEM BOX 1: BURNER(TOPPER STEEL) TOPPER STEEL BURNERS NATURAL GAS & LPG 121001060050 TOPPER STEEL 5015 G20/G25 NL/DE/BE/DK/GB/IE/NO/ES/FR/GR/AT/ 121001061080 TOPPER STEEL 8015 G20/G25 NL/DE/BE/DK/GB/IE/NO/ES/FR/GR/AT/ 121001062100 TOPPER STEEL 10015 G20/G25 NL/DE/BE/DK/GB/IE/NO/ES/FR/GR/AT/ 121001063120 TOPPER STEEL 12015 G20/G25 NL/DE/BE/DK/GB/IE/NO/ES/FR/GR/AT/ 121001064140 TOPPER STEEL 14015 G20/G25 NL/DE/BE/DK/GB/IE/NO/ES/FR/GR/AT/ TOPPER STEEL...
- Page 4 Topper Gasfires assortment build up: 3 BOX SYSTEM BOX 2: TOPPER MERTIK AB REMOTE CONTROL REMOTE GAS CONTROLS TOPPER 123010121000 TOPPER MERTIK AB G25/G20 NL/NO/ES/PT/DE/IE/GB/BE/FR/IT 123010121099 TOPPER MERTIK AB G30/G31 NL/NO/ES/PT/DE/IE/GB/BE/FR 123010151000 TOPPER MERTIK AB POWER FLUE G25/G20 NL/NO/ES/PT/DE/IE/GB/BE 123010151099 TOPPER MERTIK AB POWER FLUE G30/G31 NL/NO/ES/PT/DE/IE/GB/BE 629900024 GV60 WALLSWITCH...
- Page 5 Topper Gasfires assortment build up: 3 BOX SYSTEM BOX 3: DECORATIVE MATERIALS DECORATIVE PARTS TOPPER CERAMIC GASFIRES 241000000100 LOGSET STANDARD (8 PCS) 241000000110 LOGSET DELUXE (4 PCS) 241000000120 SET BARK(4 PCS) 241000000130 SET PINE CONES(5 PCS) 241000000140 SET CHARRED (3 PCS) 241000000150 SET BIRCH (3 PCS) 241000000160...
- Page 6 Topper Gasfires assortment build up: 3 BOX SYSTEM BOX 3: DECORATIVE MATERIALS TOPPER STEEL 241000001036 CARRARASET 1061/ 8015 241000001037 CARRARASET 1062/ 10015 LOGSET 241000001039 CARRARASET 1063/ 12015 241000001064 CARRARASET 1064/ 14015 241000005710 LOGSET 1060 NG/ 5015 241000005720 LOGSET 1060 LPG/ 5015 241000010361 LOGSET 1061/ 8015 241000010371...
-
Page 7: Installation Requirements
Topper Gasfires; installation requirements • Combustion air(directly from outside) 175cm2(dia 15cm) recommended* • Combustion air underneath burner • Gap between burner and fireplace • Never close the fireplace opening! • Gascontrols to be positioned at a well ventilated space(max ambient temperature 65degrC). •... - Page 8 Topper Gasfires; installation of burner • Gap between burner and fireplace/hearth 15mm to allow combustion airflow • Topper Ceramic support example; 2x support strips made of metal or fireboard. • Topper Steel, burner can be fixed left & right on support strips. INSTALLATION REQUIREMENTS...
- Page 9 Topper Gasfires; powerflue solutions 123010151000 TOPPER MERTIK AB POWER FLUE G25/G20 NL/NO/ES/PT/DE/IE/GB/BE 123010151099 TOPPER MERTIK AB POWER FLUE G30/G31 NL/NO/ES/PT/DE/IE/GB/BE thermoCet supplies extra relay cable G6R-CD40 with the Topper Mertik AB Power Flue set. FOR FURTHER POWERFLUE SOLUTIONS ALSO CHECK: http://www.exodraft.com/ POWERFLUE SOLUTIONS...
- Page 10 Topper Gasfires; build-up in detail Mains gas inlet Flex gasline to burner Pilotgas connection Thermocouple connection GV60 gasvalve backside connections Push connectors in plastic isolator(small/big connector!) Fix thermocouple (1/4 turn over hand tight!!) Push isolator in interrupter & turn hand tight! Thermocouple interrupter fixing BUILD-UP IN DETAIL...
- Page 11 Topper Gasfires; build-up in detail Multicable 8 connection Red thermocouple cable Yellow(switch) thermocouple cable Battery hatch Ignition cable Connections on receiver Click in gasvalve Multicable 8 connection Optional powerflue Cable with connection switch Thermocouple switch cable BUILD-UP IN DETAIL...
- Page 12 Topper Gasfires; build-up in detail Ignition cable Thermocouple(fixed) Gastube incl compression fitting Pilot connections 12mm Full leak compression test after fitting installation! Mains gas supply Main gassupply underneath or on side of burner Pilot compression fitting on GV60 gascontrol Burner gas supply 12mm Pilot compression fitting compression...
- Page 13 Topper Gasfires; pressure adjustments & remote synchronisation Burner pressure measuring point Pressure setting Setting full load burnerpressure, see manuals for correct values Pressure setting Burner pressure measuring point Synchronization process: Low flame setting of burnerpressure, see • Press & hold receiver reset button until you hear 2 acoustic signals, release manuals for correct values reset button.
