Summary of Contents for AVOCOR AVE-7510

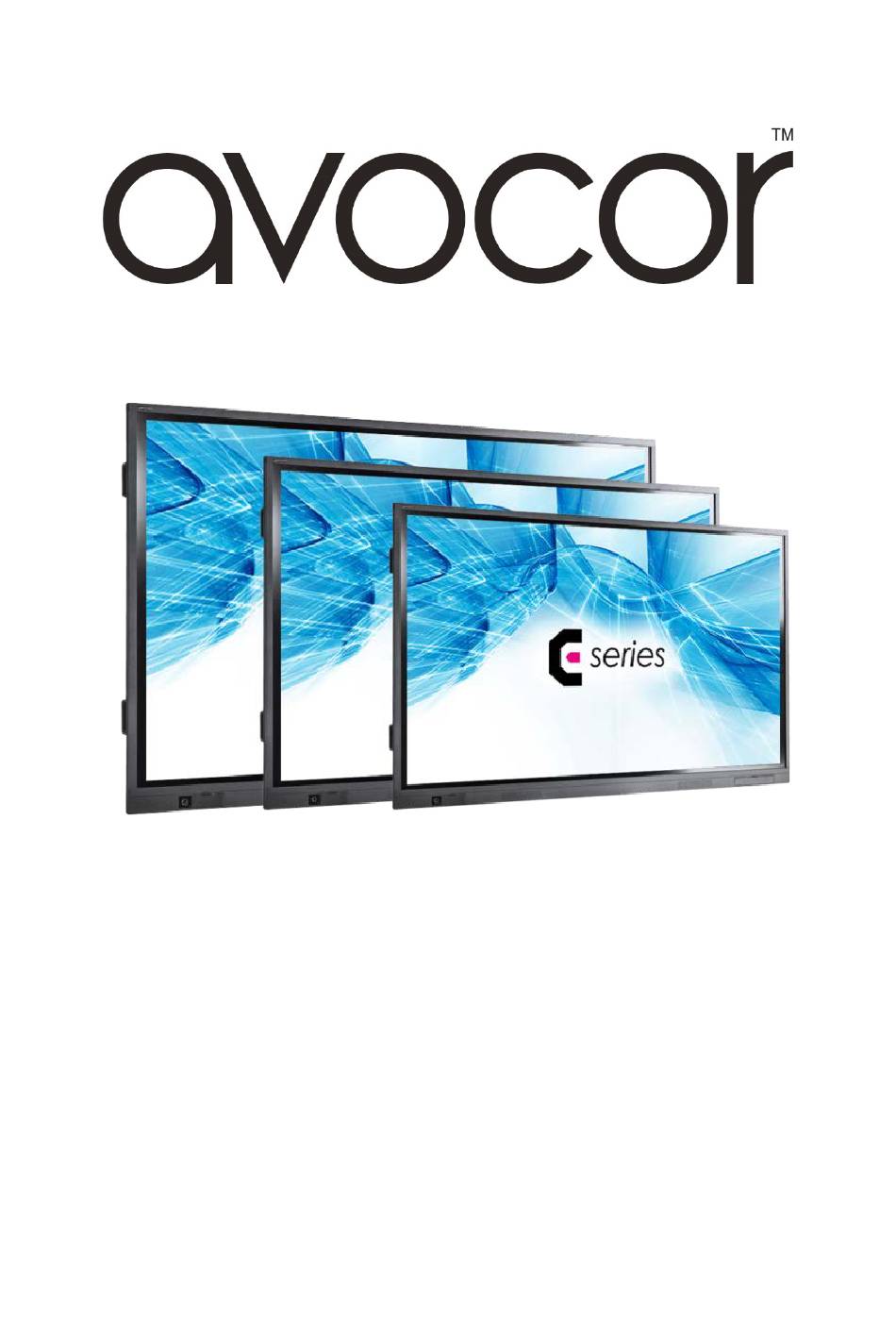

- Page 1 AVE Series Quick Start Guide AVE-6510, AVE-7510, AVE-8610...
-
Page 2: Table Of Contents
E Series Quick Start Guide Table of Contents Contents of Packaging The Display at a Glance Display Input Sources The Remote Control 10. Switching the display on and off Source Selection Connecting to the Display 11. Connecting to an external PC using a HDMI connection 12. -
Page 3: Contents Of Packaging
Power Cables - UK Cable 2m & European Cable 2m • 2x 3m HDMI Cable • 2x 3m USB-A – USB-A Cable • Cleaning Cloth • Pen Holder • Please visit www.avocor.com to download the full E-Series user manual and the Pen Aware Touch Drivers. v.08_08_2018... -
Page 4: The Display At A Glance
The Display at a Glance Front View Rear View v.08_08_2018... - Page 5 v.08_08_2018...
- Page 6 Front Buttons Button Operation Function Power on/off Indicator LED status: Power Short Press ● Solid Red : Sleep mode ● Solid Green : Working state ● Blinking Red and Green : Standby mode Menu Short press Open the Settings menu Source Short press Open the Source menu...
- Page 7 E-Series Display Inputs Front Ports v.08_08_2018...
- Page 8 Rear Ports v.08_08_2018...
- Page 9 Remote Control Label Description Turns the display on and off. Select the OPS PC source. Blanks the display. Press again to restore. Freezes the display. Press again to restore. Navigates through menus and settings. Selects highlighted menu choice When the menu system is already open, pressing this button will close the on screen menu.
-
Page 10: The Remote Control
2. The display will then cycle and shut down. Selecting the Source You can access several sources on the Avocor E-Series display including, HDMI, DisplayPort, & OPS. The Source button is located on the Connect & Control Bar or on the Remote Control. - Page 11 Connecting to an external PC using a HDMI connection In addition to a HDMI connection, a USB touch connection is required when connecting an external PC. Connect the enclosed HDMI cable to the HDMI port of the touchscreen and to the external PC.
-
Page 12: Connecting To An External Pc Using A Displayport Connection
Connecting to an external PC using a DisplayPort connection In addition to a DisplayPort connection, a USB touch connection is required when connecting an external PC. Connect a DisplayPort cable to the DisplayPort port of the touchscreen and to the external PC. - Page 13 Enabling the Touch Screen Before setting up your display to support touch screen capability, ensure that: The touch screen controller host computer is turned off. • The display is turned on. • • The video output from the computer is connected to a video input on the display. Connecting the Display to a Host Computer Connect the signal cable to the display, and then turn on the display.
-
Page 14: Installing An Ops Module
Step 5. Ensure the installation is complete before turning on the power. Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on the side of the OPS, this will indicate that the OPS PC is switched on and operational. -
Page 15: Warranty Support
Warranty Support team. Please provide as much information to the support team about the fault and any steps you have taken in trying to try and resolve the fault. Remember the first instance to look for known faults and how to resolve them on the avocor Website www.avocor.com/support Organisation Name... - Page 16 v.08_08_2018...
