LFS4100
3.4.

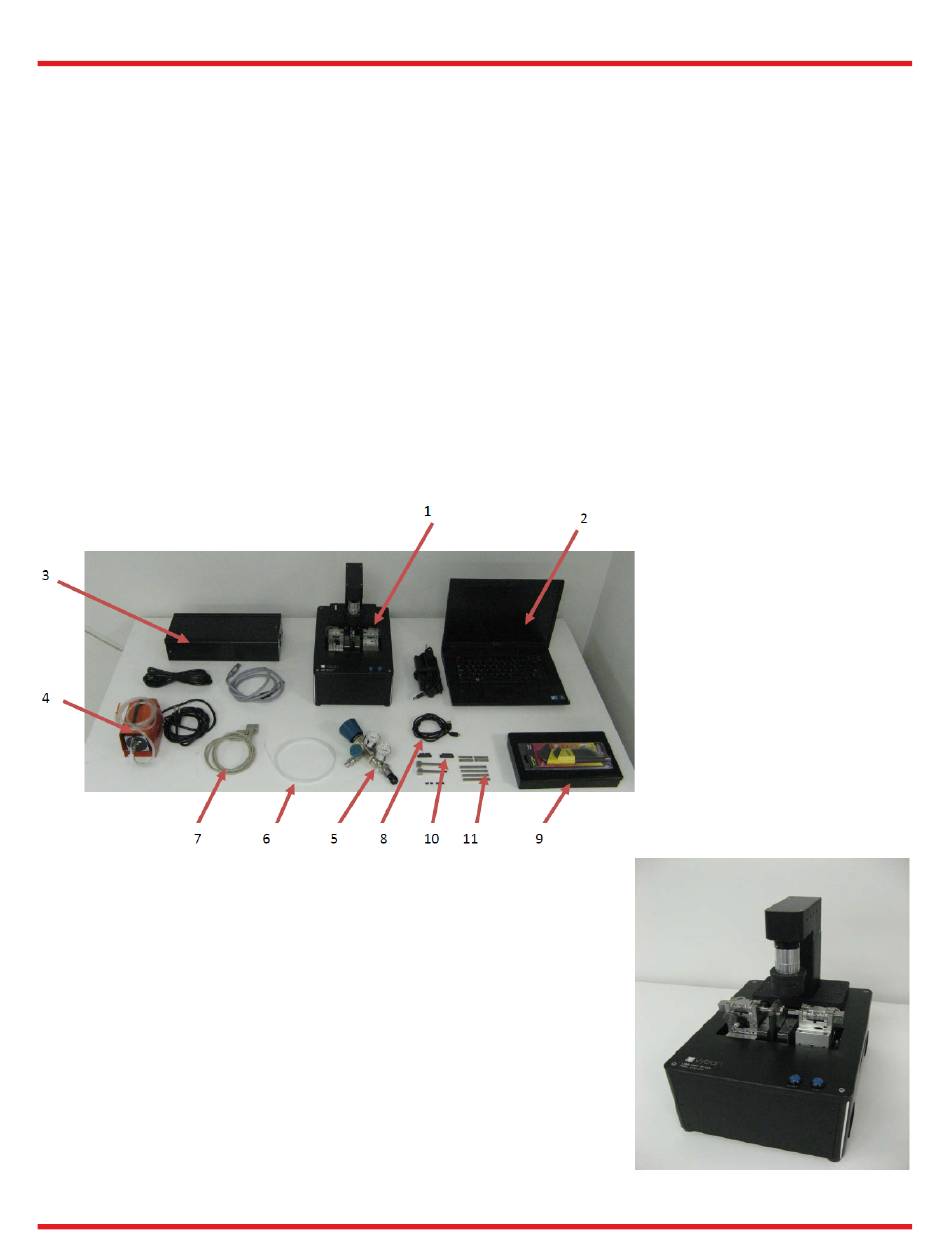

LFS4100 System and Accessories

1. LFS4100:
2. Desktop Computer:
3. External Power Supply:
4. Vacuum Pump:
5. Gas Tank Regulator:
6. 1/8" PTFE Gas Line:
7. RS-232 Comm. Cable:
8. Camera Cable:
9. Tool kit:
10. FHB inserts:
11. Filament Assemblies:
Figure 1
3.5.

System Overview

The LFS4100 splicing system has three basic components: a splicing
workstation, a desktop computer, and a gas supply. The splicer workstation
is illustrated in Figure 2:
Page 4
Splicing system
Dell
Dual voltage power supply and cable
Vacuum pump LV-125A for vacuum V-groove (alternative model
supplied for 230V markets.)
Regulator for argon tank (Note: European DIN 477 Number 6 fittings are
supplied in European markets. An adapter may be required to allow
connection of the supplied CGA-580 output port to the gas tank fittings in
other areas or countries).
Gas line for gas tank regulator
9-pin D-sub cable for RS-232 communication
6-pin IEEE-1394 firewire cable
Allen wrenches for filament and V-groove replacement
Top and bottom inserts for fiber holding blocks (Sold Separately)
Filament heating elements and protective shrouds (Sold Separately)
LFS4100 System and Components
Chapter 3: Description
Figure 2 LFS4100 Splicing Workstation
TTN047498-D01
