Kramer TP-752T Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
TP-752T 2-Wire Extra Range HD Transmitter /
TP-752R 2-Wire Extra Range HD Receiver
Step 2: Get to know your TP-752T/TP-752R

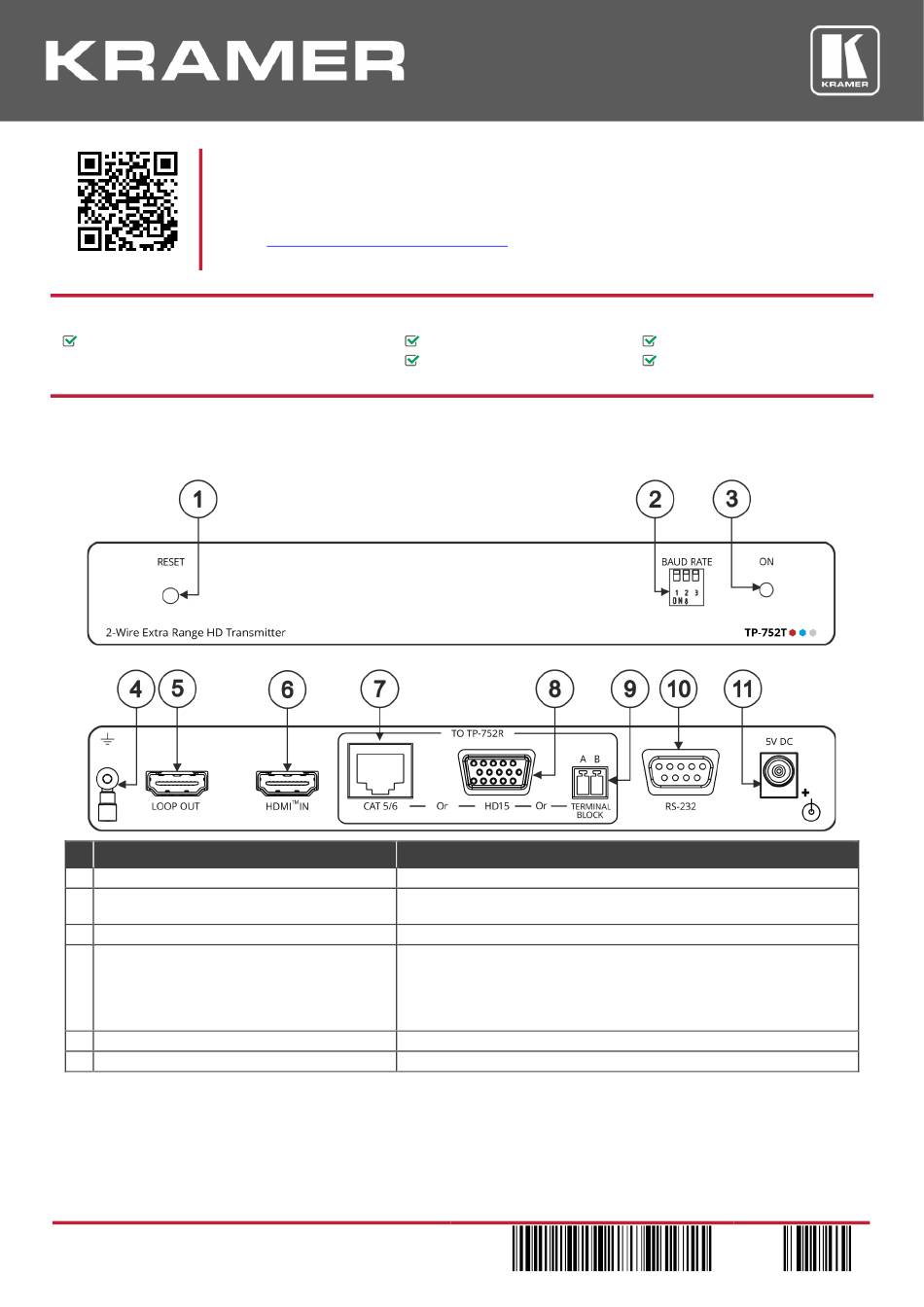

TP-752T 2-Wire Extra Range HD Transmitter
# Feature
1 RESET Recessed Button
2 BAUD RATE DIP-switches
3 ON LED
4 Ring Tongue Terminal Ground Screw
5 LOOP OUT HDMI Connector
6 HDMI TM IN Connector
TP-752T/TP-752R Quick Start
TP-752T/TP-752R Quick Start Guide
This guide helps you install and use your TP-752T/TP-752R for the first time.
Go to www.kramerav.com/downloads/TP-752T
upgrades are available.
Function
Press to reset the device.
Set the RS-232 baud rate (baud rate on TP-752T and TP-752R should
be identical).
Lights green when the device is powered.
Use to shield the cable between the transmitter and the receiver, for
example, when using coax cabling or 2-wire shielded cabling connected
to the terminal block connector.
Note that for multiple TP-752T / TP-752R systems in close proximity, it is
highly recommended to use shielded cable.
Connect to a local monitor.
Connect to an HDMI source.
to download the latest user manual and check if firmware
Power adapter
Quick start guide
P/N:
2900- 301041QS
Bracket set
Rubber feet
Rev:
5
