TP-789Rxr Quick Start Guide
This guide helps you install and use your TP-789Rxr for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
TP-789Rxr HDMI Line Receiver
1 Power adapter and cord

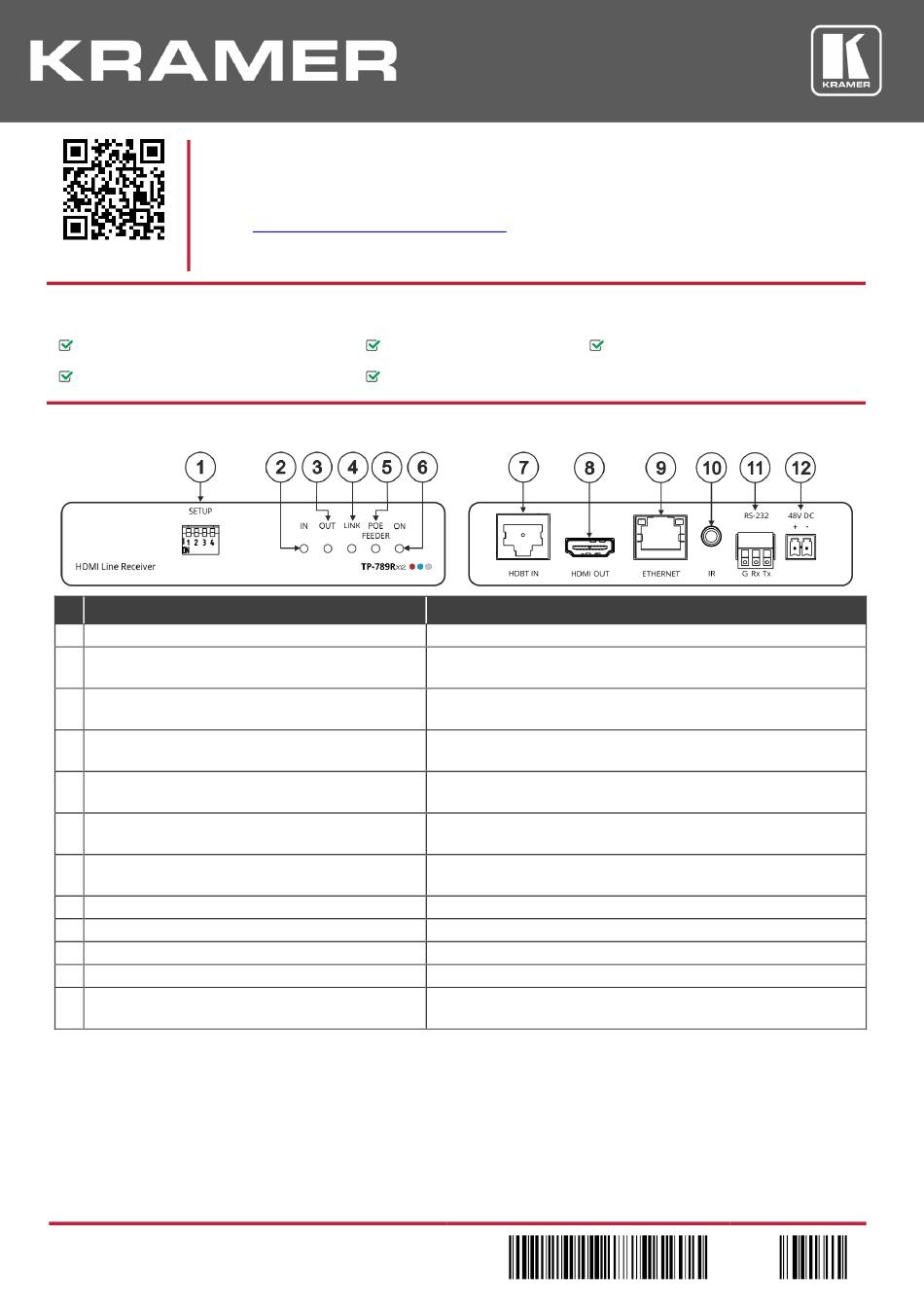

Step 2: Get to know your TP-789Rxr
# Feature
1 SETUP DIP-switches
2 IN LED
3 OUT LED
4
LINK LED
5 POE FEEDER LED
6 ON LED
7 HDBT IN RJ-45 Connector
8 HDMI OUT Connector
9 ETHERNET RJ-45 Connector
10 IR 3.5mm Mini Jack Connector
11 RS-232 (G, Rx, Tx) 3-pin Terminal Block Connector
12 48V DC Power Terminal Block Connector
TP-789Rxr Quick Start (P/N: 2900-301008QS REV 1)
www.kramerav.com/downloads/TP-789Rxr
4 Rubber feet
1 Bracket set
to download the latest user manual and check if firmware
Function
Set the operation DIP-switches.
Lights green when an active, far-end source device input signal is
detected.
Lights green when an active sink (acceptor) output signal is detected
via the HDBT link.
Lights green when an HDBT link is established with the HDBT
transmitter.
Lights green when the device is feeding PoE power to the HDBT
connected transmitter.
Lights green when the device receives power either from the power
supply unit or by PoE.
Connect to the RJ-45 HDBT OUT connector on a transmitter (for
example, WP-20, TP-780Txr).
Connect to an HDMI acceptor.
For LAN extension to the transmitter.
Connect to an external infrared emitter / sensor.
Connects to an RS-232 port for serial link extension to a transmitter.
If TP-789Rxr provides PoE, connect it to the Kramer power supply.
If it accepts PoE, no power connection is needed.
P/N: 2 9 0 0 - 3 0 1 0 0 8 QS
1 Quick start guide
