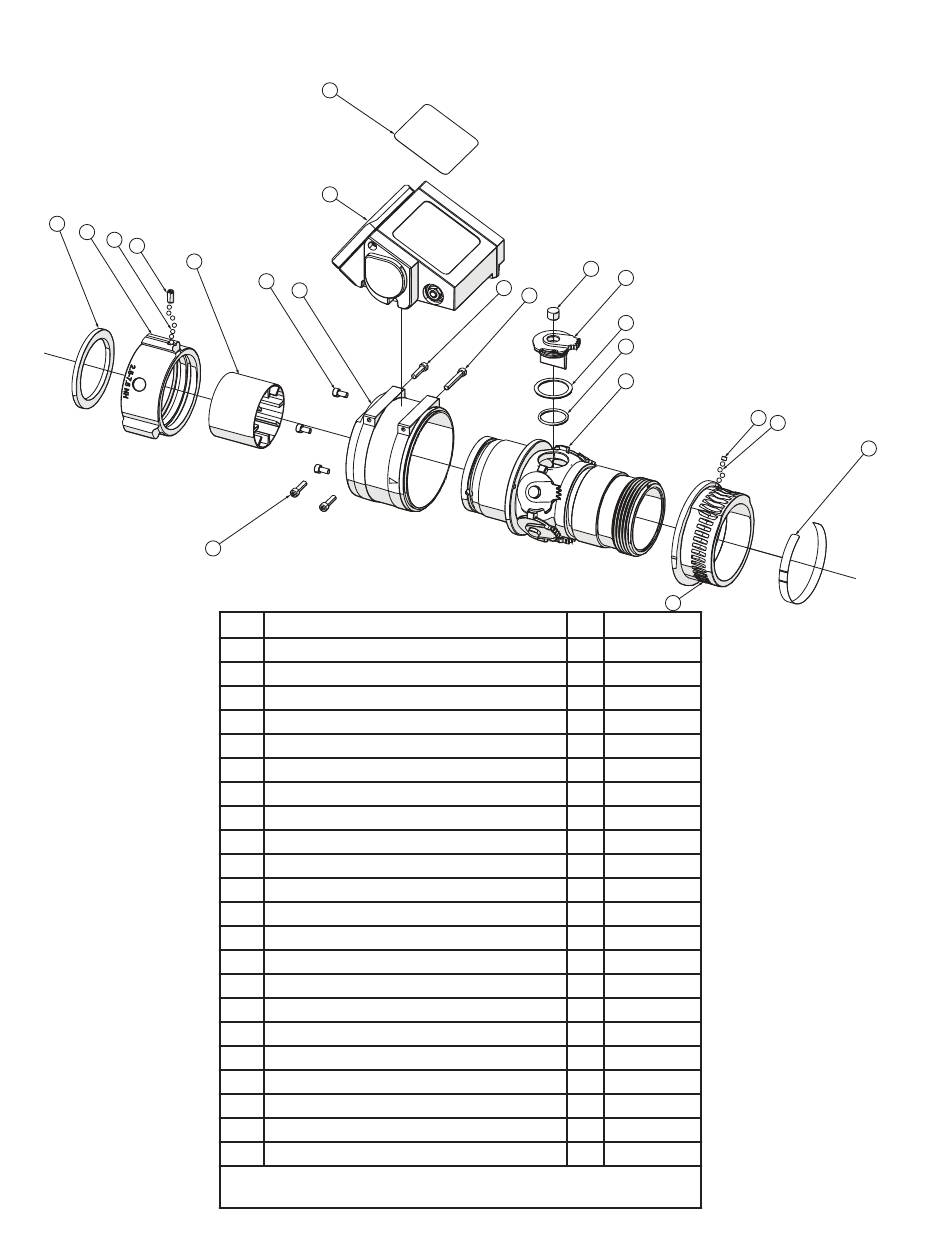

9.0 EXPLODED VIEW AND PARTS LIST
9.1 VORTEX 2 & VORTEX 2 ER NOZZLE ASSEMBLY
1
2
3
4
5
©Copyright Task Force Tips LLC 2018 - 2019
10
9
6
7
8
ITEM DESCRIPTION
1 GASKET - 2.5" HOSE COUPLING
2 COUPLING 2.5"
3 BALL 3/16" STAINLESS
4 1/4-28 X 1/2 SOCKET SET SCREW CUP POINT
5 2.5" STREAM STRAIGHTENER
6 10-32 X 3/8 SOCKET HEAD CAP SCREW
7 SHAPER
8 10-32 X 1/2 SOCKET HEAD CAP SCREW
9 ACTUATOR VORTEX ER
ACTUATOR VORTEX MANUAL
10 GEARBOX LABEL: VORTEX
11 10-32 X 3/4 SOCKET HEAD CAP SCREW
12 10-32 X 1-1/4 SOCKET HEAD CAP SCREW
13 VANE BUSHING CAP
14 VANE
15 VANE WEAR WASHER
16 O-RING 120
17 BASE 2.5"
18 3/8-24 X 1/4 SOCKET SET SCREW CUP POINT
19 BALL 5/16" TORLON
20 RING LABEL: VORTEX 2
21 DRIVE RING
* - DENOTES MULTIPLE OPTIONS OR SPECIAL THREADS AVAILABLE.
CONSULT FACTORY FOR MORE INFORMATION.
13
14
11
12
15
16
17
QTY PART #
1 V3190
1 M307*
48 V2120
1 VT25-28SS500
1 SVJ116
3 VT10-32SH375
1 SVJ120
1 VT10-32SH500
1 Y7210
Y7220
1 SVX130L
2 VT10-32SH750
1 VT10-32SH1.2
6 SVJ121
6 SVJ110
6 SVJ122
6 VO-120
1 SVJ100*
1 VT37-24SS250
30 VB.312TO
1 SVJ131L
1 SVJ115
12
18
19
21
LIS-045 April 22, 2019 Rev01
