ST STM8S User Manual page 16

Advanced evaluation using a debugging environment
16/23
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from

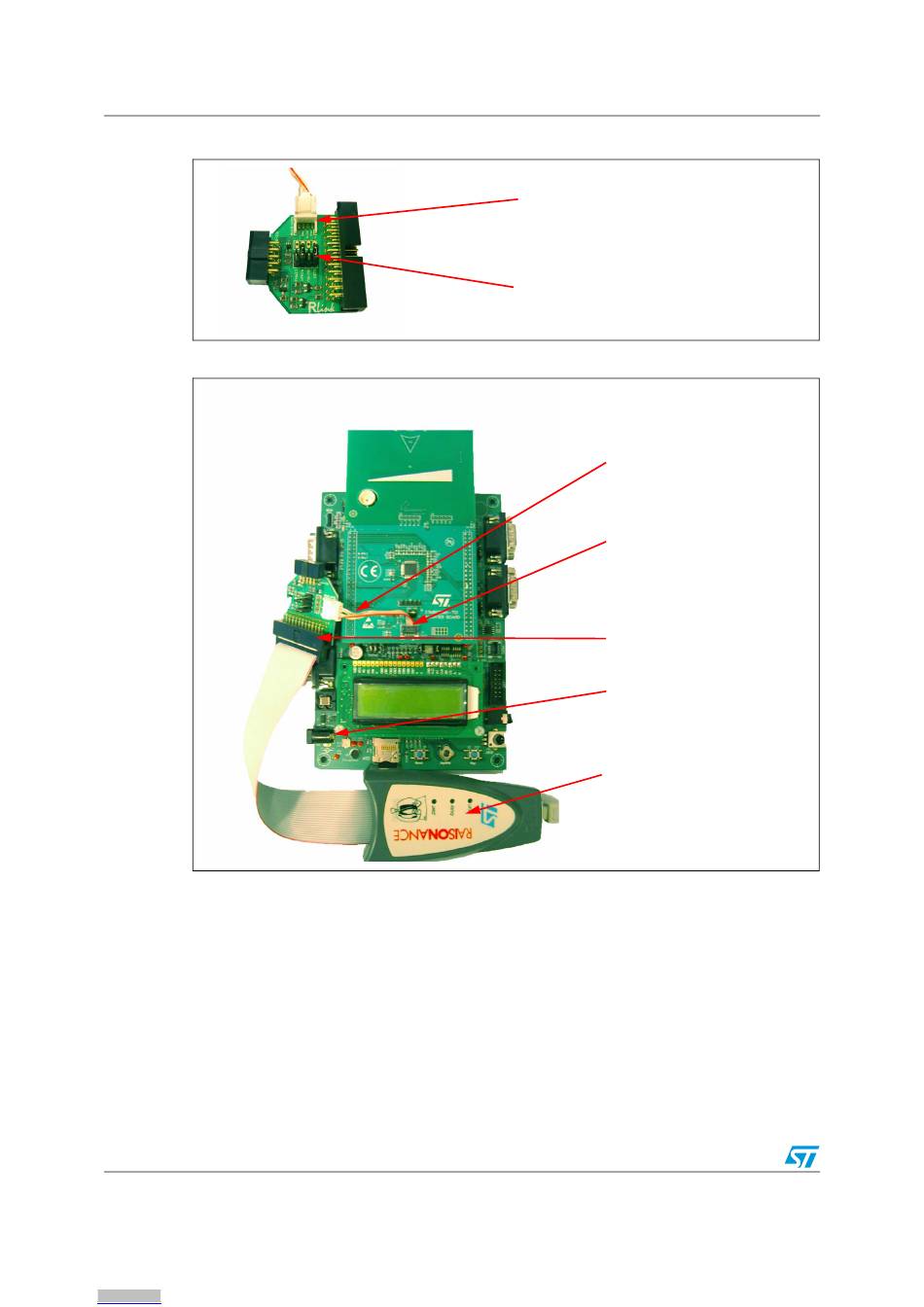

Figure 8. RLink configuration jumpers
Figure 9. RLink USB and SWIM configuration
6. Download the STM8 touch sensing library from www.st.com/touch-sense-sw-lib
7. Launch the ST Visual Develop (STVD) integrated development environment.
8. Load the STM8 TS evaluation firmware
– In the "File" menu, click "Open workspace" and select/open the file
STM8S20xK_TS1_EVAL_FW.stw.
(Default path file @ \STM8S20xK_TS1_EVAL_FW\Project\STVD\Cosmic)
SWIM connector
Configuration jumper location
(Figure 10):
Doc ID 15330 Rev 4
UM0671
SWIM cable
Daughterboard
SWIM connector
SWIM/STM8 adaptor
Power supply
RLink USB adaptor
