English
1.4.2 Sitting and reclining positions of the child
The HEYNER® seats are equipped with a 4-stage adjustment feature.
The operation is quick and easy with just one hand.
By pushing the positioning handle (PG) up the seat part (ST) will be brought into the desired posi-
tion for your child. For longer trips orthopedic surgeons recommend a lying position if possible.

1.5 Release of ISOFIX and Top Tether / expansion

HEYNER® Capsula MultiFix ERGO 3D
HEYNER® Capsula MultiFix AERO
Push the seat part (ST) in the sitting position by pressing the
positioning handle (PG), which is under the central adjusting belt (G5).
Release the Top Tether (TT) and remove it from the fastening point of the
car. Put the Top Tether (TT) over the child car seat.
Press the child car seat a little into the car seat, then turn the ISOFIX fi xing
lever (IE) slightly upward to loosen the ISOFIX terminals (IK).
Now pull the entire seat forward until the ISOFIX terminals are fully
extended and you will see the green markings.
Now you can press the ISOFIX release buttons (IT) on the ISOFIX
terminals (IK) to loosen them from the ISOFIX anchors (IA).
Pull the HEYNER® child car seat forward and press again the ISOFIX fi xing
lever (IE) to push the two ISOFIX terminals (IK) again into the base (BT)
of the seat.
25

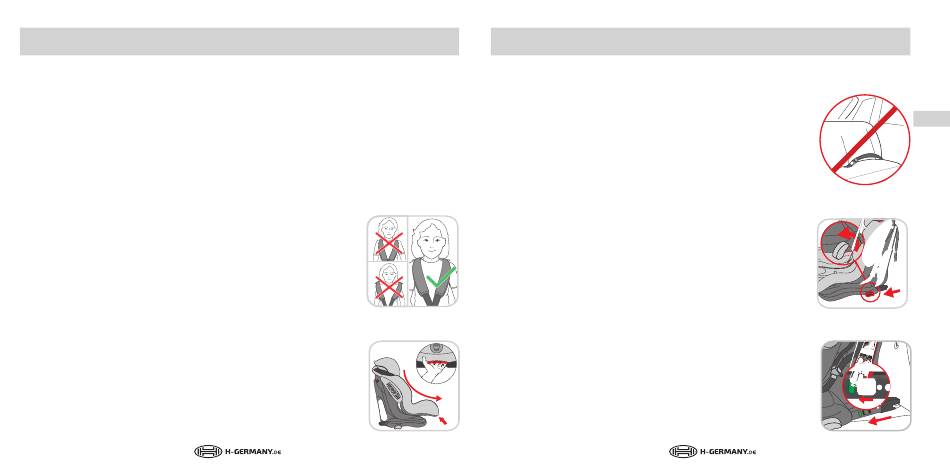

2. Age Group II + III (15-36 kg)

2.1 requirements

The seat can be used on all approved seats of your vehicle fi tted with a
Three-point belt. For best protection, use the child car seat seats
preferably on the back seats.
The seat must NOT be placed in the middle rear seat as it only has
a lap belt!
2.2 Preparation of the seat / Expansion of the fi ve-point belt system (G) of the seat
Push the seat part (ST) in the furthest reclined position (lying position)
by pressing the positioning handle (PG), which is under the central
adjusting belt (G5).
Release the safety bar (SR) of the safety bolt (SB) at the top of the
back of the base (BT) and pull out the safety bolt (SB) sideways from
the base holes (BL). Now the seat part (ST) is unlocked and will be
clapped forward.
Release the belt ends of the harness belt (G2) on the back of the seat
part (ST) from the belt anchor (R) and pull out the two ends of the belts
through the shoulder belt guide (G1).
1
2
3 4
Then unhook the shoulder belt pad (SG) out of the connecting hook (VH).
To remove the crotch strap push the belt together with the metal plate
English
GB
26
