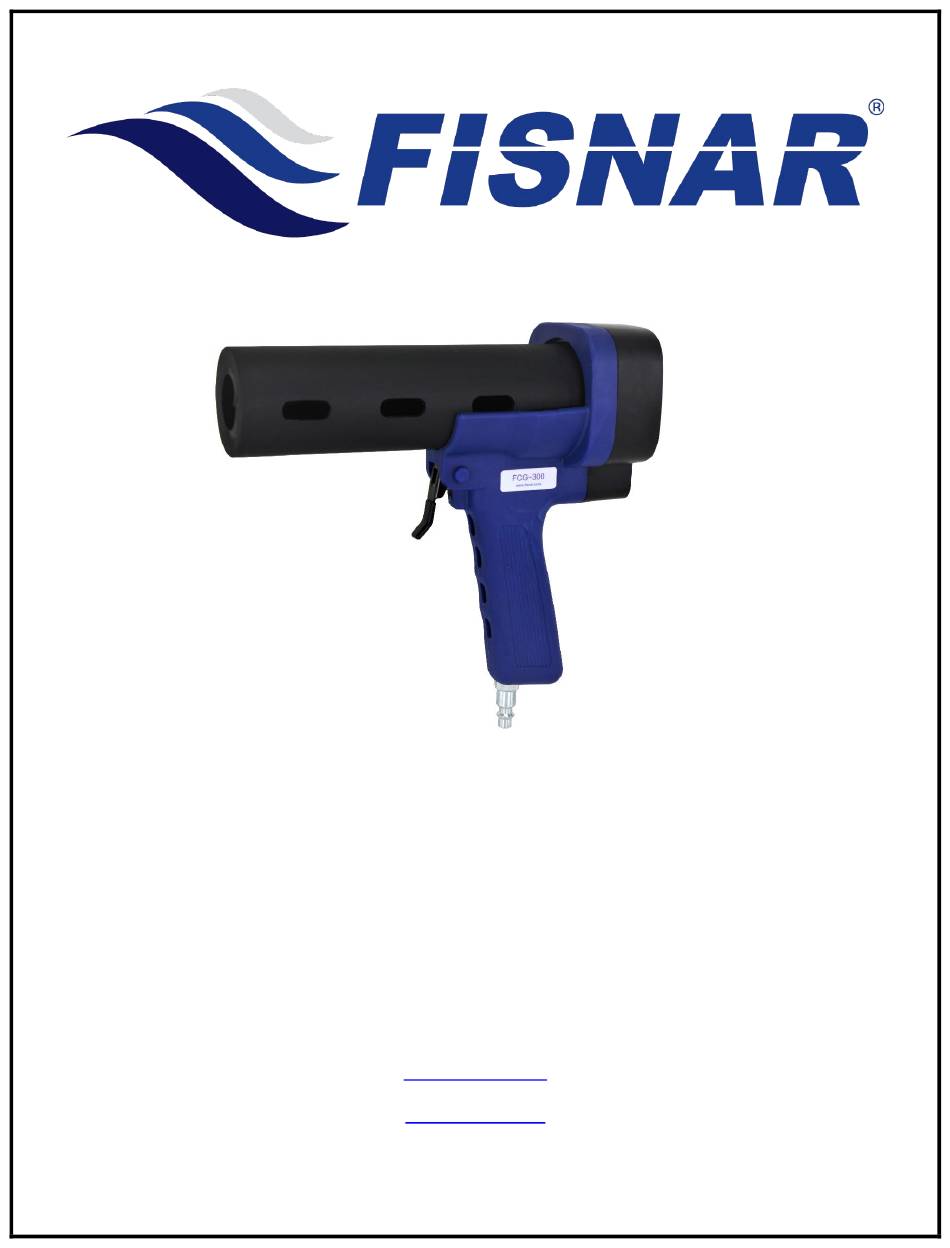

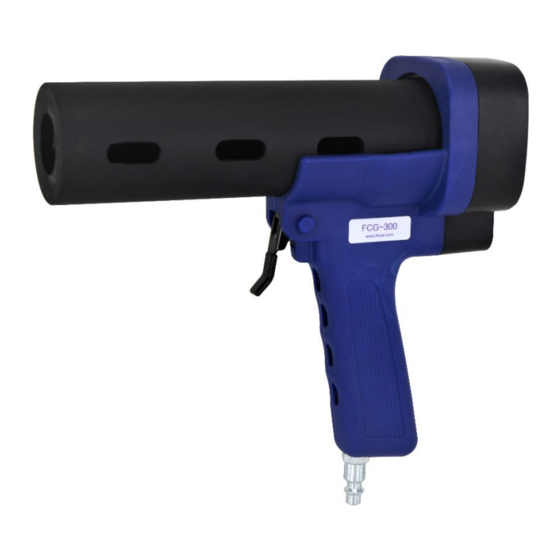

- Page 1 FCG-300 Pneumatic Caulk Tube Dispenser info@fisnar.com www.fisnar.com...
- Page 2 FCG-300 Pneumatic Caulk Tube Dispenser OVERVIEW The FCG-300 is a tough, durable, and lightweight caulking tool designed for industrial assembly and sealing applications. Compatible with all standard plastic 1/10th gallon (300/310 ml) caulking style cartridge systems. The FCG-300 produces consistent beads and dots in a controlled manner.
- Page 3 Do not operate the applicator in excess of its maximum ratings / settings. Maintenance The FCG-300 is generally a maintenance free dispenser. However, to ensure smooth operation please follow the below instructions. When replacing the O-ring be sure to add a lubricant to extend the life of the seal.
- Page 4 FCG-300 Pneumatic Caulk Tube Dispenser REPLACEMENT PARTS LIST Ref. Item Number Description 5801383 300ML Retainer Body 5801384-SEAL 300ML Nylon Retainer Cap Seal 580108 1/4” Plug x 1/4" NPT Male 560737 Hose Barb 1/4” NPT Pipe 560716 1/4" NPT Male Nipple...
- Page 5 FCG-300 Pneumatic Caulk Tube Dispenser OPTIONAL ACCESSORIES 560779 Pressure Regulator 0-100psi 5801386 Hose Assembly 10ft (3m) 5601950 Quick Connect Coupler ¼” Male 5601951 Quick Connect Coupler ¼” Female OPTIONAL CARTRIDGE ADAPTERS Cartridge Adapter ¼” NPT x 5/8”-11UNC 561129-SS 316 Stainless Steel Cartridge Adapter ¼”...
- Page 6 FCG-300 Pneumatic Caulk Tube Dispenser STANDARD COMPATIBLE 1/4” NPT NOZZLES Item Number Length (inch) Dimension (inch) Material 1/16 EA2160-HD HDPE EA2180-LD LDPE EA2180-HD HDPE 1/16 EA4160-HD HDPE 1/16 EA4160-LD LDPE EA4180-LD LDPE 1/32 EA4320-HD HDPE 1/32 EA4320-LD LDPE 3/32 EA4900-LD...
- Page 7 FCG-300 Pneumatic Caulk Tube Dispenser SPECIALTY COMPATIBLE 1/4” NPT NOZZLES Item Number Length (inch) Dimension (inch) Material Nozzle Style EA1050 1/2 x 1/16 HDPE Spreader 45° Spreader EA1050-45 1/2 x 1/16 HDPE EA1075 3/4 x 1/8 HDPE Spreader EA1100 1 x 1/8...
- Page 8 www.fisnar.com...
