Summary of Contents for FISNAR DTD50

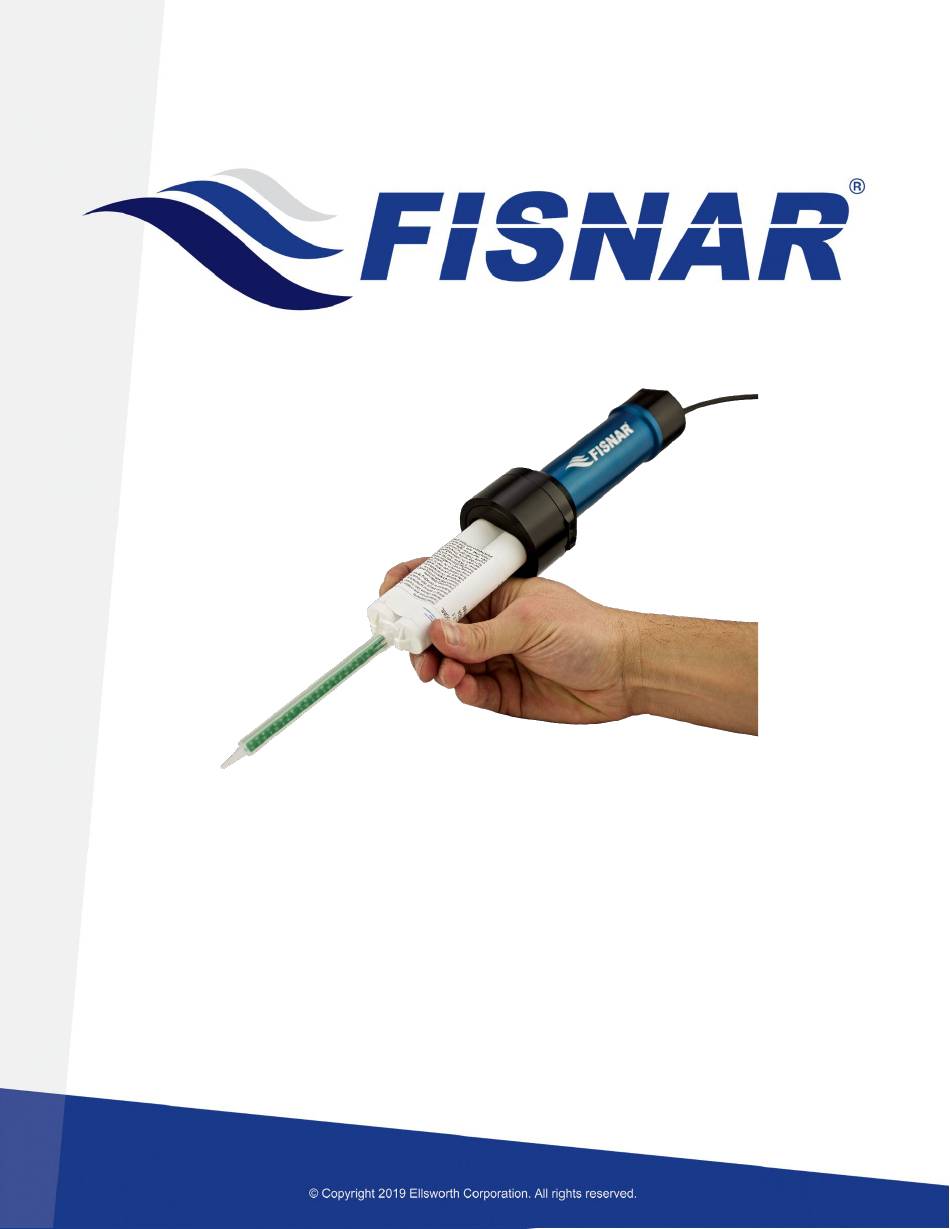

- Page 1 DTD50 50ML Dispenser Operating Guide...
- Page 2 DTD50 Operating Guide www.fisnar.com Rev B 2019 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 3 Rev B 2019 Changing Ratios The DTD50 works with 1:1, 2:1, 4:1 and 10:1 ratio 50ml standard A- style and B-style cartridges. *Max operating pressure 100 psi. • Set for use with 1:1 and 2:1 ratios right out of the box ready to dispense.
- Page 4 DTD50 Operating Guide www.fisnar.com Rev B 2019 • WARNING- Do not remove or adjust the piston located on the right side shown below at any time due to risk of breaking the plunger. It is a stationary piston, adjustment not required.
- Page 5 Rev B 2019 Installing the Cartridge Step 1 • The DTD50 works with most standard square back 50ml cartridges. To install the cartridge, unscrew the retainer cap and remove from the retainer body. Then insert the cartridge nose down in the cap.
- Page 6 DTD50 Operating Guide www.fisnar.com Rev B 2019 Installing the Cartridge Step 2 • While holding the cartridge tight in the retaining cap, line up the corresponding locking pins with the cap holes to ensure a proper fit. • Tighten the cap in place again by screwing it back on. Always make...
- Page 7 DTD50 Operating Guide www.fisnar.com Rev B 2019 Installing the Air Line into the DTD50 applicator • Remove the air line that comes supplied with the unit and firmly insert the pre-cut portion into the push fitting located in the back of the applicator.
- Page 8 DTD50 Operating Guide www.fisnar.com Rev B 2019 • For DC Style controllers that use a push to connect fitting you will need to cut the male quick connect adapter off from the supplied air- line. • To install the air line into DC style controllers you will need the black adapter (Part number 5779K712) shown below that comes supplied with the unit.
- Page 9 DTD50 Operating Guide www.fisnar.com Rev B 2019 General Operating Instructions • To retract the pistons after depleting the cartridge remove the cap and the cartridge from the retaining cap. Manually push the pistons back into the unit to reset them. You do not need to remove the unit from the airline prior to retracting the pistons.
-
Page 10: Optional Configurations
DTD50 Operating Guide www.fisnar.com Rev B 2019 Optional Configurations (sold separately) - Page 11 DTD50 Operating Guide www.fisnar.com Rev B 2019 Optional Configurations (sold separately)
-
Page 12: Contact Details
DTD50 Operating Guide www.fisnar.com Rev B 2019 Contact Details Asia info@fisnar.com.hk 852-2389-2827 Europe Infoeurope@fisnar.com +44 (0) 1355 577222 India info@fisnar.in +91-11-4556 6223 to 5 info@fisnar.com 262-253-8600... - Page 13 DTD50 Operating Guide www.fisnar.com Rev B 2019...
