BZB Gear BG-UM-88ANS User Manual

8x8 4k 18gbps uhd matrix with ip/rs-2323 control and audio de-embedding
Hide thumbs Also See for BG-UM-88ANS:
Table of Contents

Advertisement

Quick Links

Download this manual

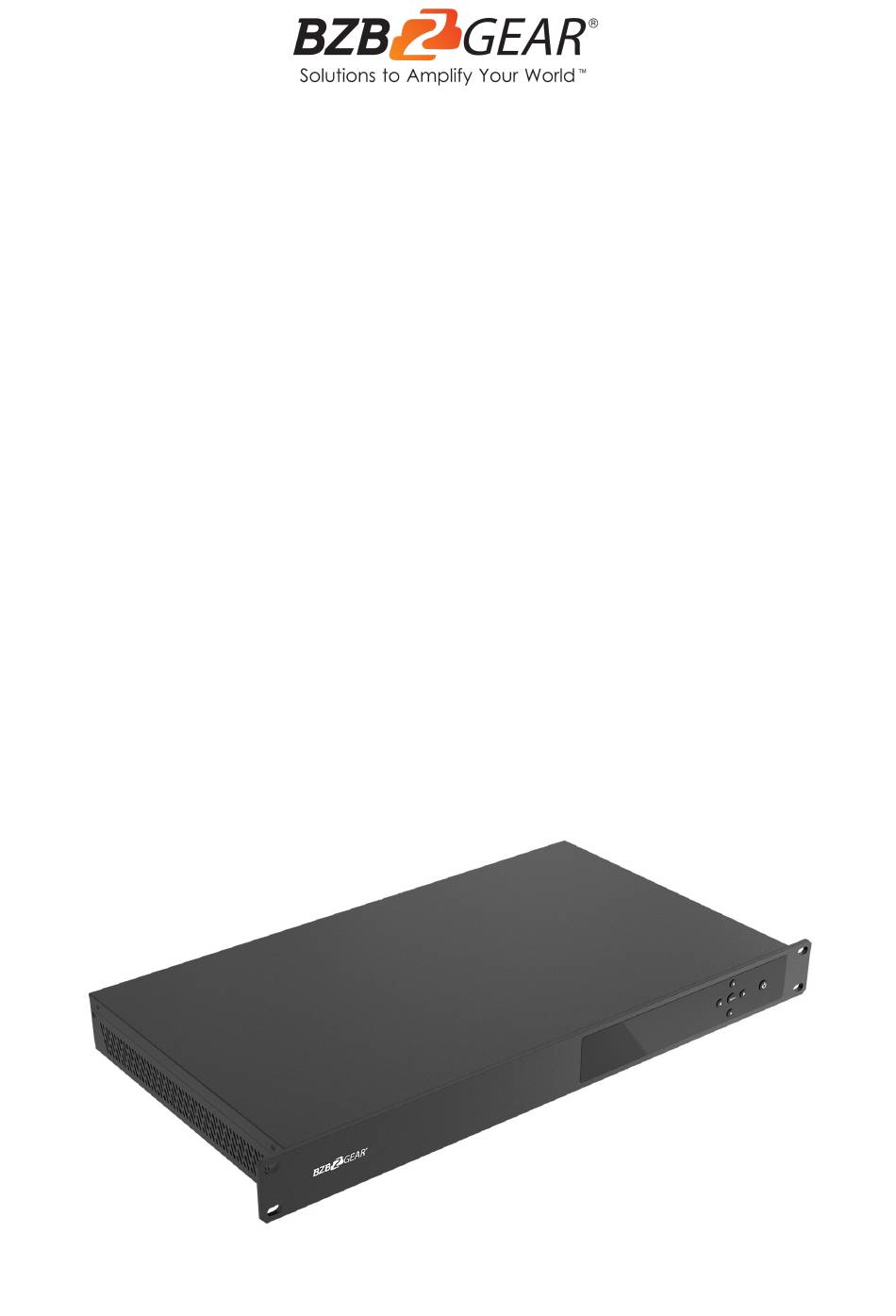

BG-UM-88ANS
8X8 4K 18Gbps UHD Matrix with IP/RS-2323 Control
and Audio De-Embedding
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-UM-88ANS and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-UM-88ANS

Summary of Contents for BZB Gear BG-UM-88ANS

  • Page 1 BG-UM-88ANS 8X8 4K 18Gbps UHD Matrix with IP/RS-2323 Control and Audio De-Embedding User Manual...
  • Page 2 BZBGEAR BG-UM-88ANS PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Remote Web GUI User Guide Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 4: Statement

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BG-UM-88ANS is an 8x8 4K HDMI matrix switch, supporting resolutions up to 4K@60Hz 4:4:4 is HDCP 1.4 & 2.2 compliant. Featuring 8 HDMI 2.0b inputs and 8 HDMI 2.0b outputs, this device offers 18Gbps uncompressed bandwidth on all HDMI ports.

  • Page 6: Specifications

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolutions Up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz, and 1080p 3D@60Hz Color Depth 8-bit, 10-bit, 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio Formats LPCM 2/5.1/7.1,...

  • Page 7: Operation Controls And Functions

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description OLED display Display system input/output port status, EDID management and matrix IP address. IR Window IR receiver window, it receives IR remote control signal to control this device.
  • Page 8 BZBGEAR BG-UM-88ANS PRODUCT MANUAL Rear Panel Name Function Description LAN: connects to an active Ethernet link by an RJ-45 cable. CONTROL RS-232: Connect to a PC or control system by DSub 9-pin cable to control the matrix with RS-232 commands.

  • Page 9: Ir Remote

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL IR Remote 1. Power on or Standby: Power on the Matrix or set it to standby mode. 2. Input 1/2/3/4/5/6/7/8: Select input source button. ◀ ▶ : Select the last or next input source button. 3. Output 1/2/3/4/5/6/7/8 button: Select output source button.

  • Page 10: Web Gui User Guide

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL Web GUI User Guide The Matrix can be controlled via Web GUI. You must know the current IP address of the matrix. The static IP address is 192.168.1.100. You can connect PC Web GUI through dynamic IP address. Generally speaking, you can get IP address from two ways. The first way gets the IP address via Upper Controller.
  • Page 11 BZBGEAR BG-UM-88ANS PRODUCT MANUAL Step 2: On the PC, go to Control Panel> Network and Internet>Network Connections> Local Area Connections, right click on it, choose Properties. Double click Internet Protocol Version 4 (TCP/IPv4) Choose Use the following IP address, input 192.168.1.200 as IP address, 255.255.255.0 as Subnet mask, and then click on OK, click on OK again.
  • Page 12 BZBGEAR BG-UM-88ANS PRODUCT MANUAL Note: The IP address of the computer and matrix should be in the same network segment. As the matrix's IP address is 192.168.10.100, the computer's IP should be 192.168.10.X (X contains 1~255 except 100). Step 3. Input the IP address from front panel into a browser on the PC to enter Web GUI page, The pages like below.
  • Page 13 BZBGEAR BG-UM-88ANS PRODUCT MANUAL 3. Power switch. The Matrix will work when open this switch. Otherwise, the Matrix will standby. 4. Beep switch. Open this switch, press the Matrix on-panel button will have voice. Close this switch, it will mute.
  • Page 14 BZBGEAR BG-UM-88ANS PRODUCT MANUAL 1. Select EDID mode to input source, then click “Set” button. 2. Copy EDID from output display to input source, then click “Set” button. 3. Open EDID file to input source. 4. Display the input source EDID mode status.

  • Page 15: Application Example

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL Upgrade page ● Open upgrade file, then click the “Upgrade” button. Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 16: Tech Support

    BZBGEAR BG-UM-88ANS PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
