Summary of Contents for Aerial AERCUBE VP2 Series

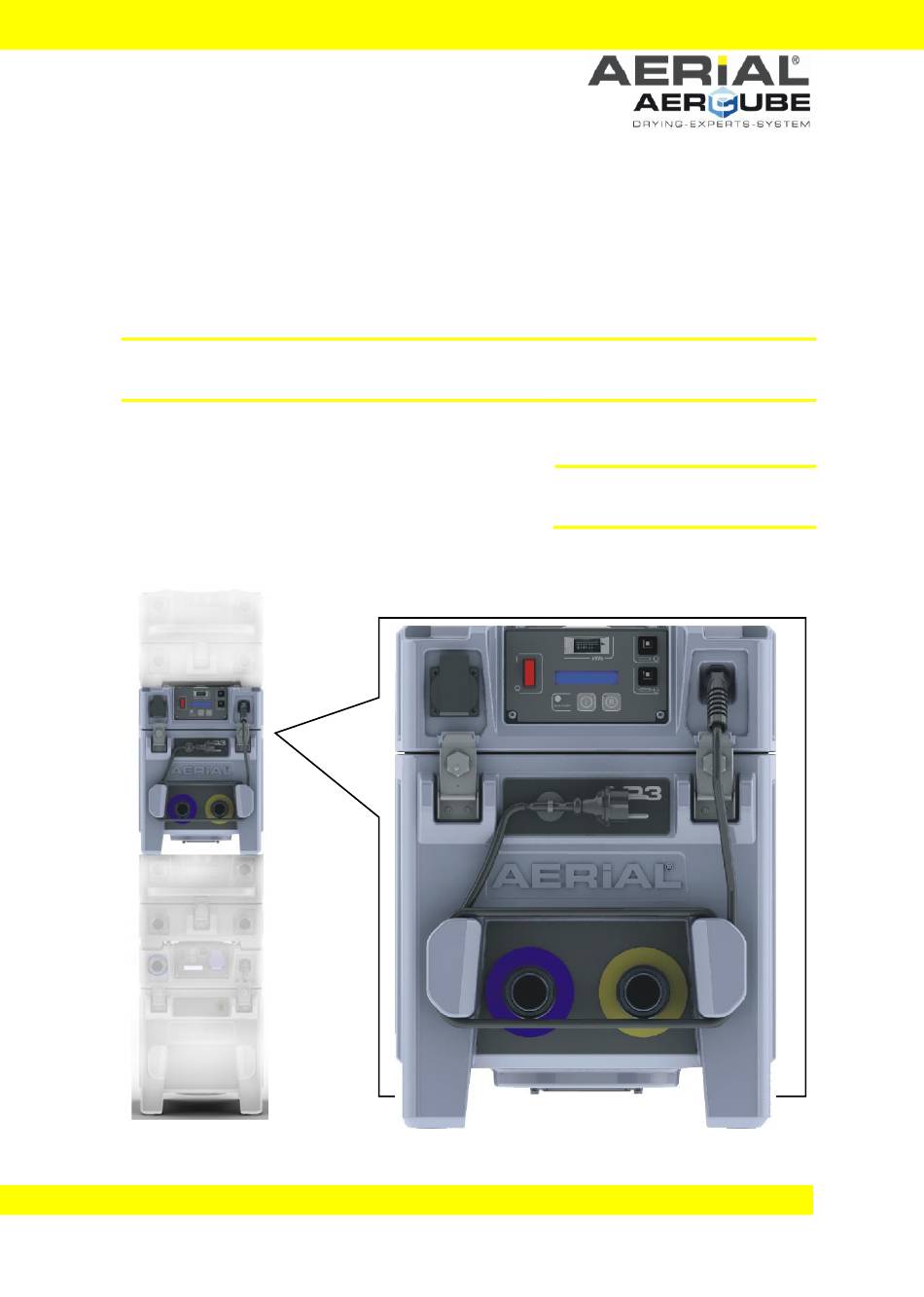

  • Page 1 Instruction manual Soundbox Series VP2 Page 1 of 18...
  • Page 2 This instruction manual shall not be reproduced, copied and distributed, neither in parts nor completely, without the manufacturer's written permit. All rights reserved. The instruction manual is based on the technical and product-specific parameters. The manufacturer reserves the right to add supplementary information to the instruction manual.
  • Page 3: Table Of Contents

    NOTES ON THIS INSTRUCTION MANUAL Notes on this instruction manual _________________________________________ 2 Target groups ________________________________________________________________ 2 Conventions _________________________________________________________________ 3 Designated use ______________________________________________________________ 4 Safety _______________________________________________________________________ 4 Safety devices ________________________________________________________________ 4 Hazards from accessories ____________________________________________________ 5 Authorised operator _________________________________________________________ 5 User __________________________________________________________________________ 5 Safety instructions ___________________________________________________________ 5 Construction ________________________________________________________________ 6 Transport and installation _________________________________________________ 7...
  • Page 4: Notes On This Instruction Manual

    Target groups This instruction manual addresses the users and operators of the devices manufactured by AERIAL. They must have read and understood the instruction manual. The physical and psychological preconditions for proper and safety- conscious handling of the devices must always be guaranteed.
  • Page 5: Conventions

    NOTES ON THIS INSTRUCTION MANUAL Conventions Warnings In this instruction manual you will find information intended to warn you of possible hazards at the beginning of a specific action. Type and source of hazard This symbol in connection with the signal word "DANGER" refers DANGER to a life-threatening situation.
  • Page 6: Designated Use

    SAFETY Designated use The soundbox VP2 / VP3 is designed for conveying air and non-explosive gases and gas/air mixtures as pressure or vacuum pump. The soundbox VP2 is designed exclusively for use at atmospheric pressure. Operating the adsorption dryers within the limits of designated use also involves observing the specified operating conditions (refer to page 7).
  • Page 7: Hazards From Accessories

    SAFETY Hazards from accessories Air hoses, power cables and air filters must be properly installed, and must not disable the protection devices of the VP2 / VP3.. The operating elements must always be accessible. Authorised operator The soundbox VP2 / VP3 may only be operated by persons commissioned and instructed by the user.
  • Page 8: Construction

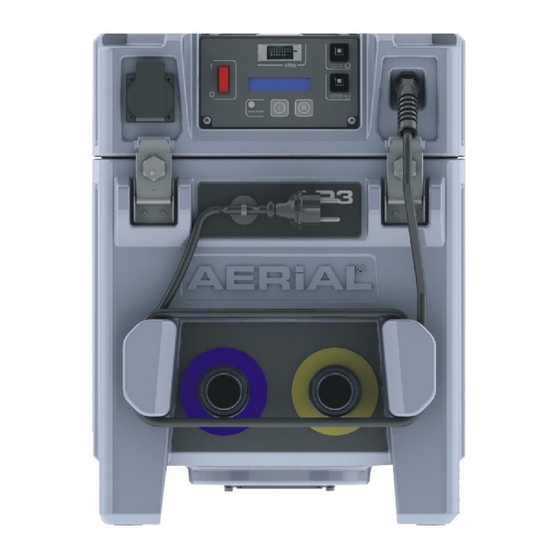

    CONSTRUCTION Construction Fig. 1: AERIAL soundbox series VP2 / VP3 - overview On / Off switch Tube connector, pressure side Appliance socket Power cable Control panel with full text Tension lock display Tube connector, intake side The sound box VP2 / VP3 is equipped with a side channel compressor installed with vibration damping.
  • Page 9: Transport And Installation

    TRANSPORT AND INSTALLATION Transport and installation Transport Remove the packaging material completely and dispose of according to the local regulations. Check the delivery for completeness. Use the lateral handles or the handle in the middle of the cover to transport the sound box to the place of installation.
  • Page 10 TRANSPORT AND INSTALLATION Connection Danger to life due to electric shock Prior to commissioning the technical data of the soundbox  DANGER VP2 / VP3 must be compared with the conditions prevailing in the room of installation! The following items must be checked prior to electrical connection of the soundbox: Is the mains voltage in conformity with the voltage of the device? ◼...
  • Page 11: Operation And Operator Control

    OPERATION AND OPERATOR CONTROL Operation and operator control Danger of injury and damage to appliance Inadmissible ambient conditions and improper operation of the CAUTION device may constitute a risk. Read the instruction manual before commissioning the  soundbox VP2 / VP3.. Operating elements Fig.
  • Page 12: Commissioning And Operator Control

    OPERATION AND OPERATOR CONTROL Membrane key "Info" Display also when power plug has been pulled, time 5 seconds. Press briefly Operating hours 123456 h Temperature in the box T1 = 35 C press for 3 s Software version V 6.0 Software serial number SN 12345 Membrane key "Reset"...
  • Page 13: Maintenance And Service

    MAINTENANCE AND SERVICE Switch on the soundbox VP2 / VP3 via the On switch (s. page 6, Fig. 1, item 1). The following indication appears in the display: V6.0 Then the device starts and the display changes to: 123456 h ◼◼◼◼◼◼◼...
  • Page 14 MAINTENANCE AND SERVICE Remove and clean air filter (see fig. 4). Replace, if required. ◼ Insert new or cleaned filter. Use only original filters to guarantee proper ◼ functioning of the soundbox VP2 / VP3. Visual inspection: Coarse filter (see fig. 5, arrow) in intake socket. If the coarse ◼...
  • Page 15: Troubleshooting

    TROUBLESHOOTING Troubleshooting If problems arise with the soundbox VP2 / VP3 please check the following points. Should the fault not be located please contact your technical advisor. Danger of injury by electric shock and risk of material damage WARNING The device may only be repaired by trained specialised staff. ...
  • Page 16: Shutdown, Storage And Disposal

    TROUBLESHOOTING Shutdown, storage and disposal Shutdown If you do not need the soundbox VP2 / VP3 for a longer period of time you can shut it down for some time. To do so proceed as follows: Switch off the soundbox via the On/Off switch (page 6, Fig.
  • Page 17: Specifications

    SHUTDOWN, STORAGE AND DISPOSAL Specifications General data Power supply 230 V/50 Hz Protection class IP 22 Fusing RCCB to be installed by user Operating conditions 0 °C to +35 °C Type Unit Air circulation rate m³/h Max. differential pressure mbar Vacuum mbar Pressure...
  • Page 18: Eu Declaration Of Conformity

    Product / Article Soundbox Type VP-2, VP-3 Project number Aerial VP 2, VP-3 Funktion The soundboxes VP-2 /VP-3 is designed for conveying air and non-explosive gases and gas/air mixtures as pressure or vacuum pump. The soundbox VP6 is designed exclusively for use at atmospheric pressure.
  • Page 19 2014/30/EU Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast) Published in L 96/79 of 29.03.2014 Reference to the harmonised standards used, as referred to in Article 7 (2): EN ISO 12100:2010-11 Safety of machinery - General principles for design - Risk...
  • Page 20 Dealer stamp: Dantherm GmbH · Systeme zur Luftbehandlung Oststraße 148 · D-22844 Norderstedt Phone 0049 (0) 40 526 879 0 · Telefax 526 879 20 E-Mail: info.de@dantherm.com · Internet: www.aerial.de Page 18 of 18...
