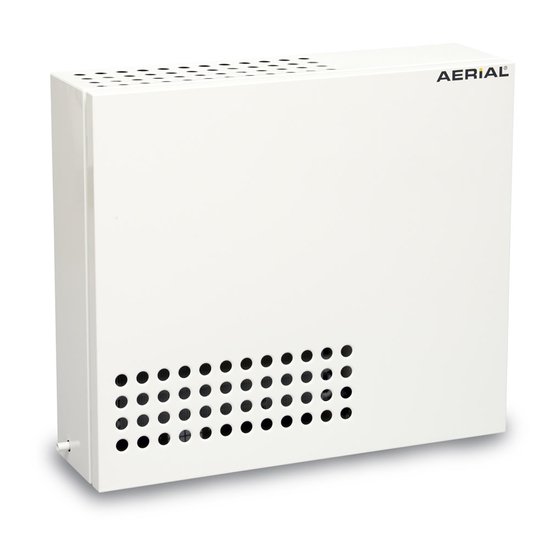

Summary of Contents for Aerial AP 50

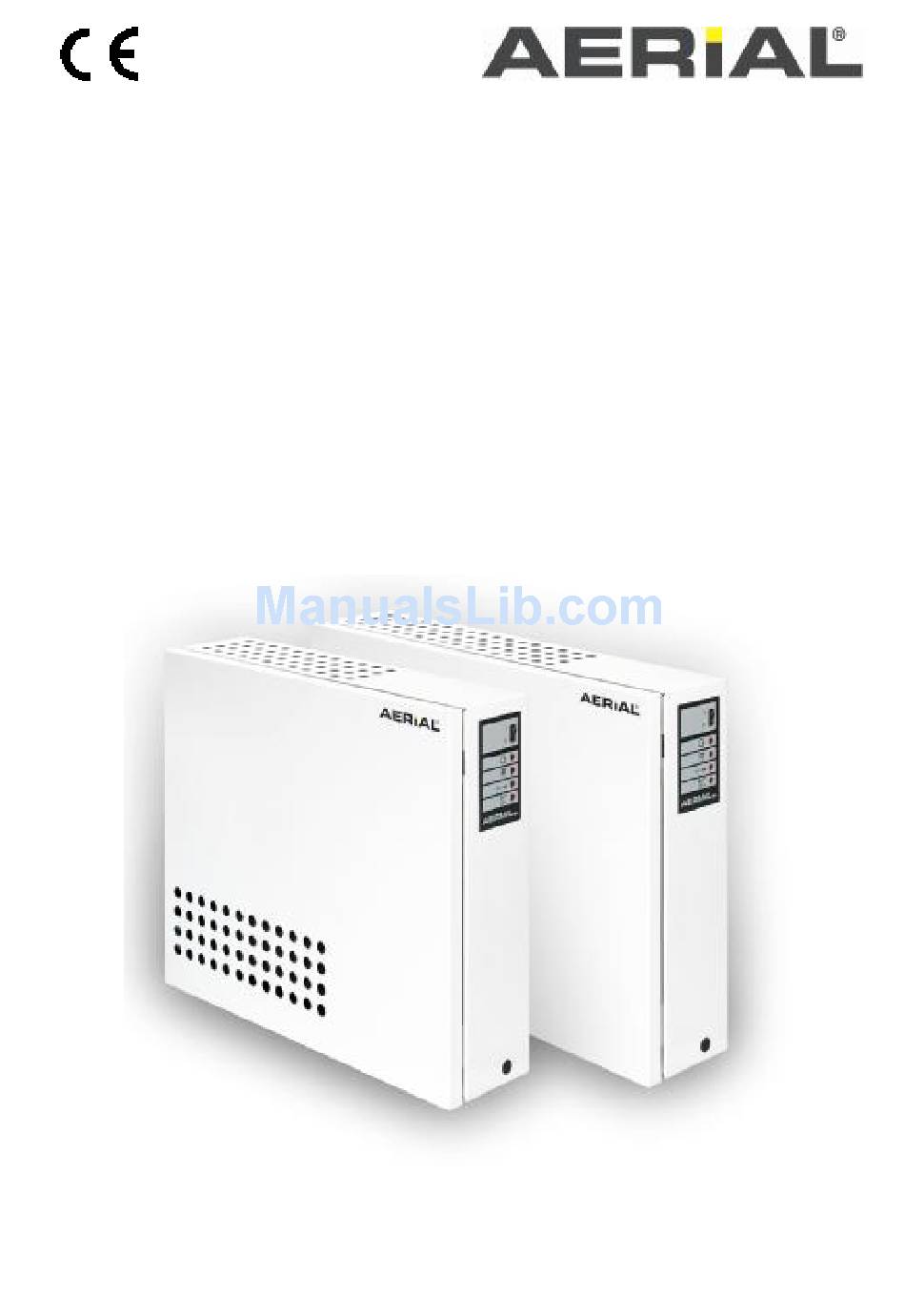

- Page 1 Instruction manual _____________________________________ Swimming pool dehumidifier AP 50 / AP 70 _____________________________________ Valid: 12-2010 page 1 of 17...
-
Page 2: Table Of Contents
Mode of functioning 3 - 4 Safety Operating conditions Figures View from rear Front view (without cover) Operation panel Dimensions AP 50 Dimensions AP 70 Installation and transport Place of installation Fixing at a wall Electrical connection Condensate removal Add fresh air... -
Page 3: General Advice
1.General advice You have bought an air dryer made by AERIAL thus deciding for a proven quality product "Made in Germany". If there are any questions, you will find some advice in this manual how to eliminate such difficulties as quickly as possible. -
Page 4: Safety
1 - wet room air 2 - dry air 3 - evaporator (chilling) 4 - condenser (warm) 5 - condensate outlet 6 - compressor 7 - fan 3. Safety The condensation dryers AP are furnished with protective devices. The devices were subjected to a safety examination. -
Page 5: Operating Conditions
Ø in rooms of an extremely high ratio of dust. In the case of doubtful operating conditions it is recommended to contact the Technical Department of Messrs. AERIAL or a specialized dealer. Using an AP-air dryer under inadequate operating conditions will entail that the warranty becomes null and void. -
Page 6: Figures
5. Figures 5.1 View from rear Aperture for hygrostat-sensor (measuring point) Wall mounting bar (see 6.2) Connection box for electrical supply (see 6.3) Cable entries (see 6.3) Room-temperature sensor for ThermoLogic (see 6.9) Spacer / distance to the wall Bleed air / fresh air aperture (see 6.5) Apertures for changing the position of condensate outlet (see 6.4) Aperture to chill the compressor page 6 of 17... -
Page 7: Front View (Without Cover)
5.2 Fron view (without cover) Condenser (heat exchanger) Radial fan with motor Evaporator (epoxy-coated) Cover for e-box Cover for compressor 5.3 Operation panel On- / Off- Hygrostat switch (see hygrostat- control 6.7) Neon green: Unit has been Voltage on switched off, because adjusted humidity has been achieved... -
Page 8: Dimensions Ap
5.4 Dimensions AP 50 5.5 Dimensions AP 70 page 8 of 17... -
Page 9: Installation And Transport
6. Installation and transport The AP-series is planned for the stationary effort. The units are for wall mounted using. During the setting up and transportation of the dehumidifier, the following items are to be considered: Ø That dehumidifier can be transported upright or laid flat! The upright transportation is to be preferred if possible. -
Page 10: Electrical Connection
Before connecting the air dryer, the following items must be checked: Ø Does the mains voltage coincide with the voltage of the appliance? (Voltage at AP 50 and AP 70 is 230V / 50 Hz) Ø Adequate fusing of supply system? Ø... -
Page 11: Add Fresh Air
6.5 Add fresh air (option) Ø The series AP is fitted with an aperture for additional air. (Figure 5.1 - Pos. 7) Ø With the help of a flange D= 100 mm (optional accessories, article no. 6109- 0020) fresh air can be added over this opening. In addition an appropriate wall opening (D = 80 mm) is to be created behind the equipment, over which fresh air will then be sucked from outside 6.6 Putting into operation... -
Page 12: Automatic Defrost
Please consider: Humidity values of a minimum of 40 % - 45 % r.h. can be achieved with a condensation dryer. In a swimming pool room a humidity of approx. 60% r.h. is recommended. 6.8 Automatic defrost During air drying, ice may form at the evaporator. The volume of ice depends on the ambient conditions prevailing in the room to be dried. -
Page 13: Technical Data
Protection class: IP X4 Voltage : 230 V / 50 Hz Fusing in swimming halls: residual-current-operated circuitbreaker (r.c.c.b) has to be installed AP 50 Air volume 875 m³/h Noise level 50 dB(A) dimensions (width/height/depth) 824 mm / 740 mm / 261 mm... -
Page 14: Trouble Shooting
9.Trouble shooting Assign that dehumidifier a putative defect on, please, first check the following points. If this should provide no relief, please contact your technical consultant. 1) The dehumidifier shows a bad or no drying capacity - The humidity is lower than 40% r.h. or the temperature in that room is lower than +10°C. -
Page 15: Disposal
If you have any questions regarding defects and malfunctions of AERIAL-air dryers we recommend get in touch with your supplier. The producer AERIAL GmbH you reach under 0049-40-526879-0 or www.aerial.de 10.Disposal... -
Page 16: Circuit Diagram
11. circuit diagram AP 50 / AP 70 page 16 of 17... -
Page 17: Manufacturer´s Declaration
AERIAL GmbH - Systeme zur Luftbehandlung Oststraße 128, D-22844 Norderstedt Product description: swimming pool dryer AP 50 / AP 70 capacity: 47,0 / 66,2 l/day The product described above is an ambient air dryer ready for connection. Related standards:...
