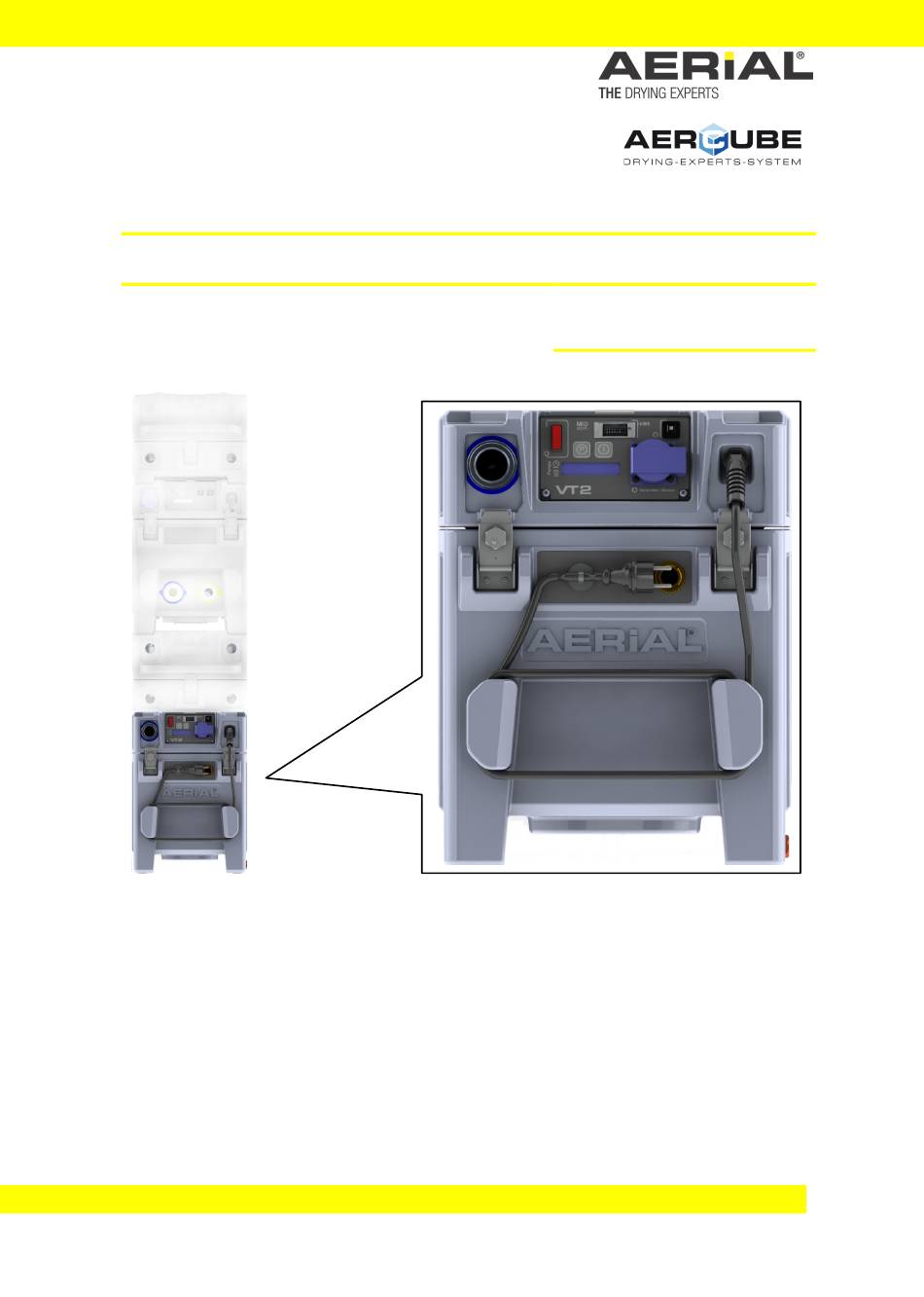

- Page 1 MADE IN GERMANY INSTRUCTION MANUAL Water Separator Series...
- Page 2 This instruction manual shall not be reproduced, copied and distributed, neither in parts nor completely, without the manufacturer's written permit. All rights reserved The instruction manual is based on the technical and product-specific parameters. The manufacturer reserves the right to add supplementary information to the instruction manual.
-
Page 3: Table Of Contents
CONTENTS Notes on this instruction manual ____________________________________________ 2 Target groups ______________________________________________________________ 2 Conventions _______________________________________________________________ 2 Designated use ____________________________________________________________ 3 Safety ____________________________________________________________________________ 3 Safety devices ______________________________________________________________ 3 Hazards from accessories __________________________________________________ 3 Authorised operator _______________________________________________________ 4 User _______________________________________________________________________ 4 Safety instructions _________________________________________________________ 4 Construction ____________________________________________________________________ 5 Connections on the device rear side _______________________________________ 6 Drain plug on device rear side _____________________________________________ 6... -
Page 4: Notes On This Instruction Manual
Notes on this instruction manual This instruction manual is part of the product. It contains all important information on how to transport, install, operate, store and dispose of the device from AERIAL properly and safely. Therefore keep this instruction manual in a safe place. -
Page 5: Designated Use
SAFETY In this box you find tips and information concerning the use of the device. Designated use The water separator VT2 shall be used exclusively as a water suction device. The device is designed for vacuum operation. Please observe the permissible combinations (see chapter Operator Control, page 8 - 9). -
Page 6: Authorised Operator
SAFETY Authorised operator The water separator VT2 may only be operated by persons commissioned and instructed by the user. In the working area the operator is responsible to third parties. For all activities on the device the responsibilities must be clearly defined and observed. Unclear competences are a safety risk. -
Page 7: Construction

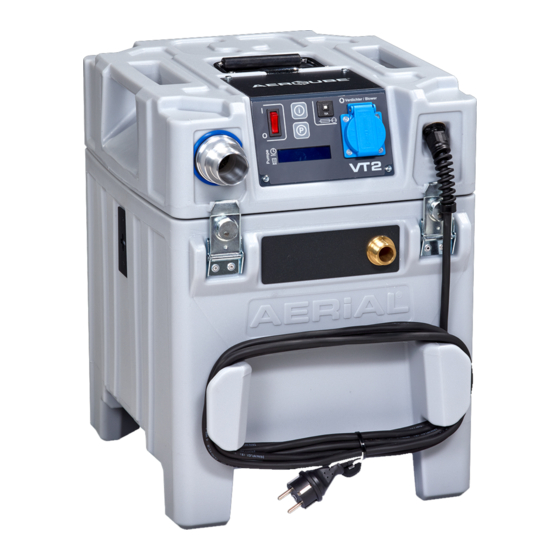

CONSTRUCTION Construction Fig. 1: AERIAL water separator series VT2 - overview On / Off switch Appliance socket for compressor Connection for compressor Power cable Control panel with full text G¾“ threaded connector for display waste water Tension lock Holder for power cable... -
Page 8: Connections On The Device Rear Side
Use tubes of 50 mm diameter for efficient drying. Smaller tubes result in high energy consumption and longer drying times. Connections on the device rear side Fig. 2: AERIAL water separator VT2 rear side Screw cap Screw cap Connection pipe Ø38 mm / Ø50 mm or Ø50 pipe... -
Page 9: Transport And Installation
TRANSPORT AND INSTALLATION Transport and installation Transport Remove the packaging material completely and dispose of according to the local regulations. Check the delivery for completeness. Use the lateral handles or the handle in the middle of the cover to transport the water separator to the place of installation. -
Page 10: Operation And Operator Control
OPERATION AND OPERATOR CONTROL Operation and operator control Danger of injury and damage to appliance Inadmissible ambient conditions and improper operation of the device CAUTION may constitute a risk. Read the instruction manual before commissioning the water separator VT2. Operating elements Fig. -
Page 11: Commissioning
OPERATION AND OPERATOR CONTROL Membrane key "Info" Duration 5 seconds PG = 54621.0l Press 1x Total delivery volume of the pump 435.8l (value not erasable) Delivery volume since last switching-on of device Membrane key "P" Pump Press Pump switches on and runs as long active as the key is kept pressed, indicator flashes... -
Page 12: Operation
MAINTENANCE AND SERVICE Operation The water separator operates as follows: At the moment when the water separator is switched on the compressor (soundbox VP2/VP3/VP6) connected to the appliance socket of the water separator starts running. The separated water is collected in the water container. ... -
Page 13: Drain Residual Water
MAINTENANCE AND SERVICE Drain residual water Fig. 6: AERIAL water separator VT2, drain plug for residual water Drain plug for residual water In case of longer periods without operation the residual water in the device must be discharged. To do so turn out the drain plug (s. fig. 6, item 1). Tilt and move the housing to and fro so that the residual water can flow out. -
Page 14: Troubleshooting
TROUBLESHOOTING Troubleshooting If problems arise with the water separator VT2 please check the following points. Should the fault not be located please contact your technical advisor. Danger of injury by electric shock and risk of material damage The device may only be repaired by trained specialised staff. WARNING Within the warranty period, any work on the device shall only be carried out by the manufacturer or persons commissioned... -
Page 15: Shutdown, Storage And Disposal
SHUTDOWN, STORAGE AND DISPOSAL Shutdown, storage and disposal Shutdown If you do not need the water separator VT2 for a longer period of time you can shut it down for some time. To do so proceed as follows: Switch off the water separator VT2 via the On / Off switch (s. -
Page 16: Specifications
SPECIFICATIONS Specifications General data Power supply 230 V/50 Hz Protection class IP 22 Fusing RCCB to be installed by user Operating conditions 0 °C to + 35 °C Type Unit Pump delivery volume Pump delivery height Power consumption of pump watt Dimensions 507 / 390 / 490... -
Page 17: 11 Eu Declaration Of Conformity
EC machinery directive 2006/42/EC, Annex II, 1.A Machinery directive 2006/42/EC EMC directive 2014/30/EU Low voltage directive 2014/35/EU Manufacturer: AERIAL GmbH - Systeme zur Luftbehandlung Oststraße 148, D-22844 Norderstedt Product description: Water separator VT2 The product described is a water separator ready for connection. - Page 20 Dealer stamp: AERIAL GmbH Systeme zur Luftbehandlung Oststrasse 148 · D-22844 Norderstedt Phone 0049 (0) 40 526 879 0 · Telefax 526 879 20 E-Mail: info@aerial.de · Internet: www.aerial.de...
