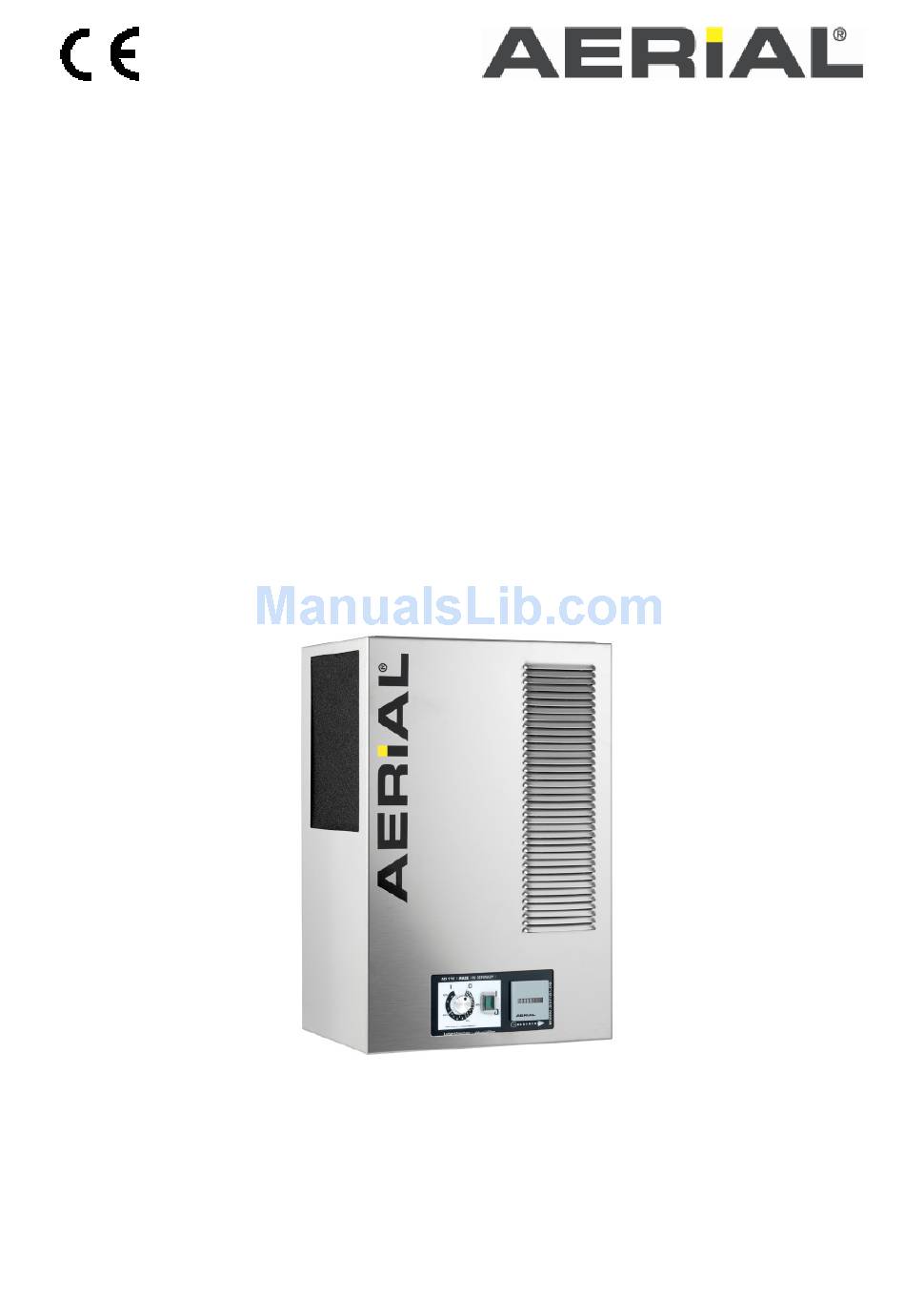

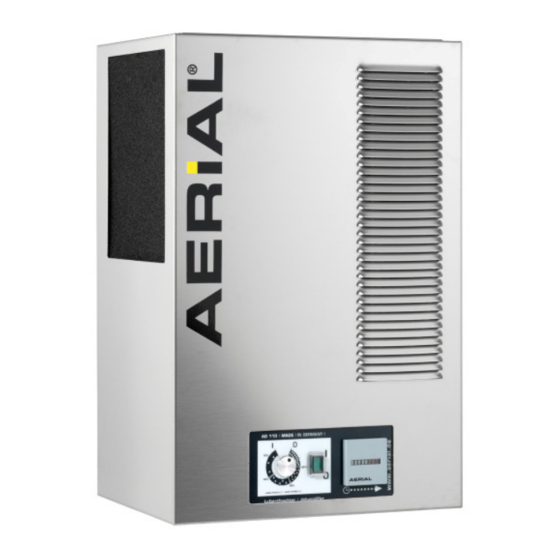

- Page 1 Instruction manual _____________________________________ Dehumidifier AD 110 _____________________________________ valid: 02-2012 page 1 of 13...
-
Page 2: Table Of Contents
Operation panel Hygrostat control 7 - 8 Condensate outlet Automatic defrosting Operating conditions 8 - 9 Technical data 9 - 10 Service & Maintenance Trouble shooting 11 - 12 Disposal Circuit diagram AD 110 Manufacturer´s declaration page 2 of 13... -
Page 3: General Advice
1. General advice You have bought an air dryer made by AERIAL thus deciding for a proven quality product "Made in Germany". If nevertheless complications should occur, you will find some advice hereinafter how to eliminate such difficulties as quickly as possible. -
Page 4: Safety
7 – operation panel 8 – condensate outlet (hose) 3. Safety The condensation dryers AD 110 are furnished with protective devices. The devices were subjected to a safety examination. Dangers threaten in the case of operating error or abuse - for the user. -
Page 5: Installation & Transport
4.Installation and transport The AD-dehumidifier AD 110 is planned for wall mounting only. During the setting up and transportation of the dehumidifier, the following items are to be considered: That dehumidifier must be installed so that the air can circulate without obstruction through him. -
Page 6: Operation
5.Operation 5.1 electrical connection Before connecting the air dryer, the following items must be checked: Does the mains voltage coincide with the voltage of the appliance? Adequate fusing of socket and supply system? Has the required residual-current-operated circuitbreaker (r.c.c.b) been installed in case of swimming baths? If a cable drum is used: has it been unwound completely? Is the appliance connector suitable for the building socket? -
Page 7: Operation Panel
5.3 Operation panel AD 110 neon „Operating“ Hygrostat Operation time counter 5.4 hygrostat control The air dryers of the AD-series dispose of a hygrostat for setting the required humidity value. This hygrostat is located in the front of the unit. It makes that the air dryer cuts in as soon as the ambient humidity exceeds the preset value. -
Page 8: Condensate Outlet
For unclear drying request, please contact your dealer. 5.5 Condensate outlet The dehumidifier AD 110 is with 3 mtr. Run off hose (12 mm) The end of the hose must be situated lower than the beginning of the hose (runoff... -
Page 9: Technical Data
In the case of doubtful operating conditions it is recommended to contact the Technical Department of Messrs. AERIAL or a specialized dealer. Using an AD-air dryer under inadequate operating conditions will entail that the warranty becomes null and void. -
Page 10: Service & Maintenance
Capacity / power consumption at l/24h 30° C / 80% Watt l/24h 27° C / 60% Watt l/24h 20° C / 60% Watt l/24h 10° C / 70% Watt dimensions 494 x 330 x 241 weight 8. Service & Maintenance ATTENTION! When performing any repair or maintenance, the general safety rules and provisions must be adhered to! -
Page 11: Trouble Shooting
9.Trouble shooting Assign that dehumidifier a putative defect on, please, first check the following points. If this should provide no relief, please contact your technical consultant. 1)The dehumidifier shows a bad or no drying capacity - The humidity is lower than 40% r.h. ort he temperature in that room is lower than +3°... -
Page 12: Disposal
The appliance must be repaired by a trained and expert personnel only. In the case of interventions by unauthorized people, any and all warranty claims shall become null and void! If you have any questions regarding defects and malfunctions of AERIAL-air dryers we recommend to get in touch with your supplier. 10. Disposal Please do not dispose this unit with the domestic waste and please do not dispose this unit in the environment. -
Page 13: Manufacturer´s Declaration
12.Manufacturer´s declaration (EU-directive 2006/42/EG) (EU-directive 2004/108/EG) (EU-directive 2006/95/EG) manufacturer: AERIAL GmbH - Systeme zur Luftbehandlung Oststraße 128, D-22844 Norderstedt Product description: dehumidifier type AD 110 capacity: 8,5 l/day The product described above is an ambient air dryer ready for connection.
