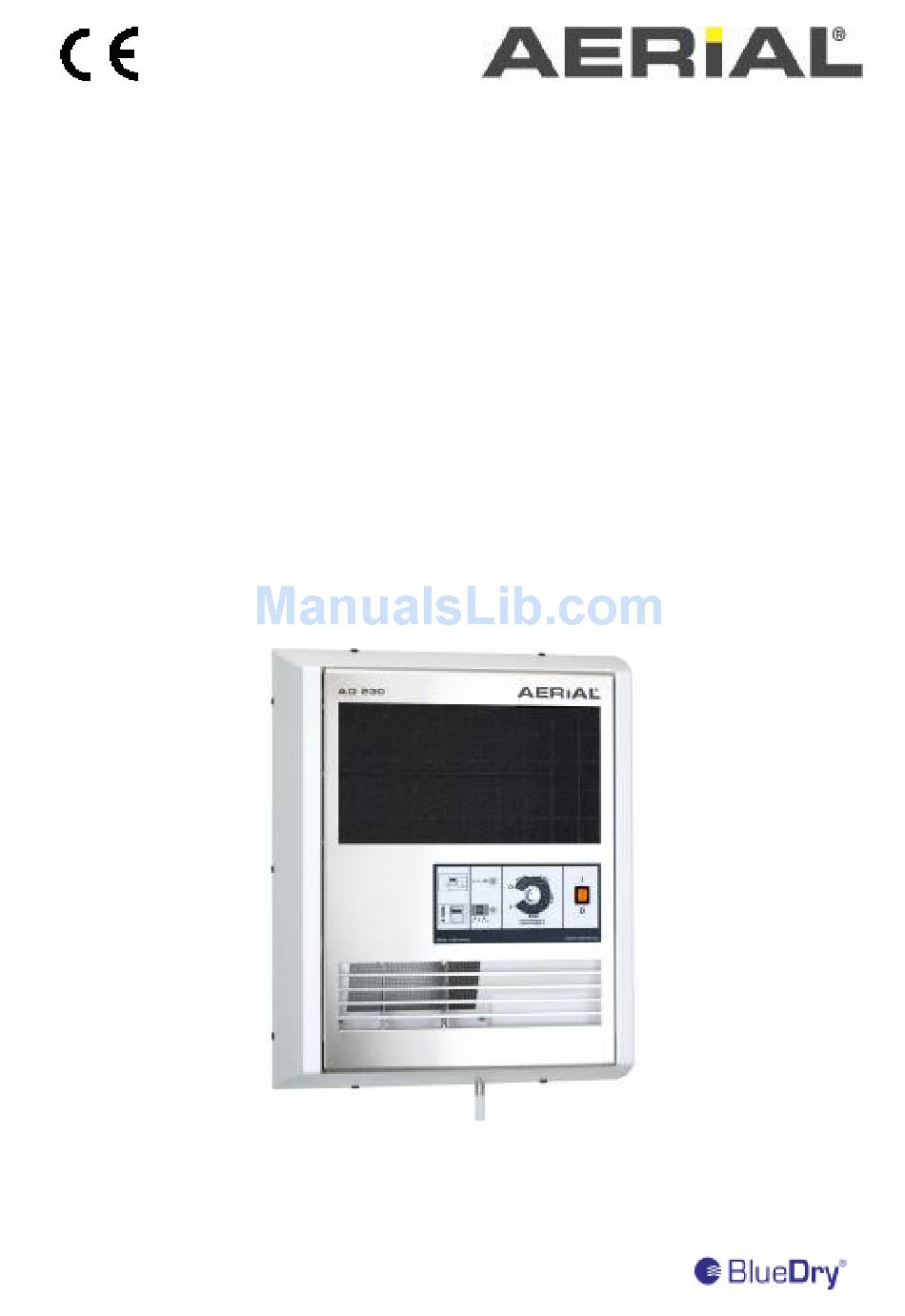

- Page 1 Instruction manual _____________________________________ Dehumidifier AD 230 / AD 250 Laundry dryer WT 230 / WT 250 Laundry dryer with final switch off WT 230-E / WT 250-E _____________________________________ valid: 01/2012 Page 1 of 17...
-
Page 2: Table Of Contents
Index Illustration 1.1. AD 230 / 250 Dehumidifier 1.2. WT 230 / WT 250 Laundry dryer 1.3. WT 230-E / WT 250-E Laundry dryer with final switch off 1.4. View from rear General advice Mode of functioning 5 - 6... -
Page 3: Illustration

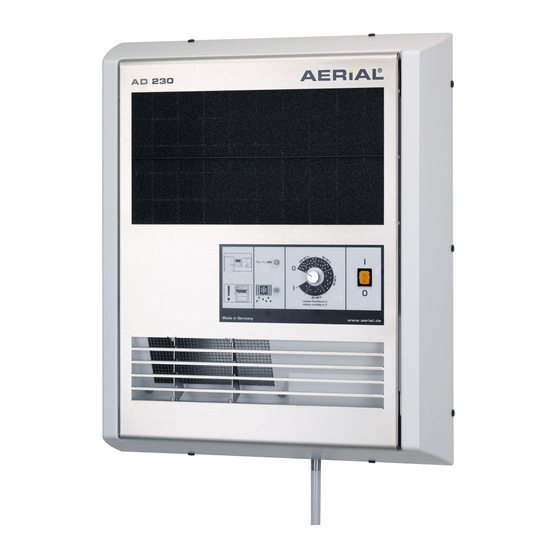

1.Illustration 1.1 Series AD 230 / AD 250 (1) air inlet with filter and filter holder (2) Operation panel (Pt. 8.1) (3) Air outlet with two air (5) equipment baffle plug socket for main cable (not shown in the (4) Condensate picture) outlet (Pt. -
Page 4: View From Rear
1.3 Series WT 230-E / WT 250-E (1) air inlet with filter and filter holder (2) Operation panel (Pt. 8.3) (3) Air outlet with two air (5) equipment baffle plug socket for main cable (not shown in the (4) Condensate picture) outlet (Pt. -
Page 5: General Advice
2.General advice You have bought an air dryer made by AERIAL thus deciding for a proven quality product "Made in Germany". If there are any questions, you will find some advice in this manual how to eliminate such difficulties as quickly as possible. - Page 6 The Serial AD 2xx / WT 2xx is equipped with a radial fan (Pos 2), with that the air is blown up to 10 mtrs. far into the room. Thus these devices are particularly for the laundry drying process or suitable for the employment in long areas.
-
Page 7: Safety
4. Safety The condensation dryers AD 2xx / WT 2xx are furnished with protective devices. The devices were subjected to a safety examination. Dangers threaten in the case of operating error or abuse - for the user. - for the machine and other real values. - for the efficient work of the machine. -
Page 8: Dimensional Drawing
5.1 Dimensional drawing 5.2 Fixing at a wall The wall rail (see following figure) and fixing material is included with the delivery. Fixing screws Affix the wall rail straight and safe at a suitable wall (use spirit level). Above the rail a distance must remain free from 30 cm up to the ceiling, in order to be able to hang the dryer problem-free into the wall rail. -
Page 9: Electrical Connection
The dryer is lifted from above in such a way into the wall rail that the fastening bar (Pt. 1.4 – Pos 6) hangs on the back of the dryer in the wall rail. Check the position of the dryer with a spirit level! With the help of the distance holder (Pt. -
Page 10: Wt 230 / Wt 250 Laundry Dryer
8. Operation panel 8.1 Dehumidifier AD 230 / AD 250 1 – Advice: Close windows and doors! 2 – Advice: Clean filter regularly. 3 – neon yellow: Device has been switched off, because the humidity is below the adjusted hygrostat value. -
Page 11: Hygrostat Control
8.3 Laundry dryer with final switch off WT 230-E / WT 250-E 1 – Advice: Close windows and doors! 2 – Advice: Clean filter regularly. 3 – neon yellow: Device has been switched off, because the humidity is below the adjusted hygrostat value. 4 –... -
Page 12: Ad 230 / 250 Dehumidifier
9.1 Dehumidifier AD 230 / AD 250 Pos. 0 = Device has been switched off Pos. 1 = Continues operation 80 – 100% The dehumidifier switches off when a humidity of approx. 80 - 95% r.h. has achieved and switches on again when humidity is higher than 80-95%. -
Page 13: Condensate Outlet
9.3 Laundry dryer with final switch off WT 230-E / WT 250-E The hygrostat is identical with the one of WT 230 / WT 250 (see Pt 9.2) But the devices WT 230-E and WT 250-E are equipped with a final switch off. That means that the device switches off with reaching the adjusted humidity value and does not restart automatically. -
Page 14: Technical Data
In the case of doubtful operating conditions it is recommended to contact the Technical Department of Messrs. AERIAL or a specialized dealer.. Using an AD-/ WT-air dryer under inadequate operating conditions will entail that the warranty becomes null and void. -
Page 15: Service And Maintenance
Ø mount front cover. Ø Check hose connector and connected hose Ø Clean case with moist cloth. Do not use aggressive detergent Ø Insert new or cleaned filter. Use only original AERIAL-filter for problemfree working. Ø Insert filter holder Ø Put plug into socket Ø... - Page 16 If you have any questions regarding defects and malfunctions of AERIAL-air dryers we recommend get in touch with your supplier. The producer AERIAL GmbH you reach under 0049-40-526879-0 or www.aerial.de...
-
Page 17: Disposal
AERIAL GmbH - Systeme zur Luftbehandlung Oststraße 128, D-22844 Norderstedt Product description: - Dehumidifier AD 230 / AD 250 - Laundry dryer WT 230 / WT 250 - Laundry dryer with final switch off WT 230-E / WT 250-E...
