Instruction manual
_____________________________________

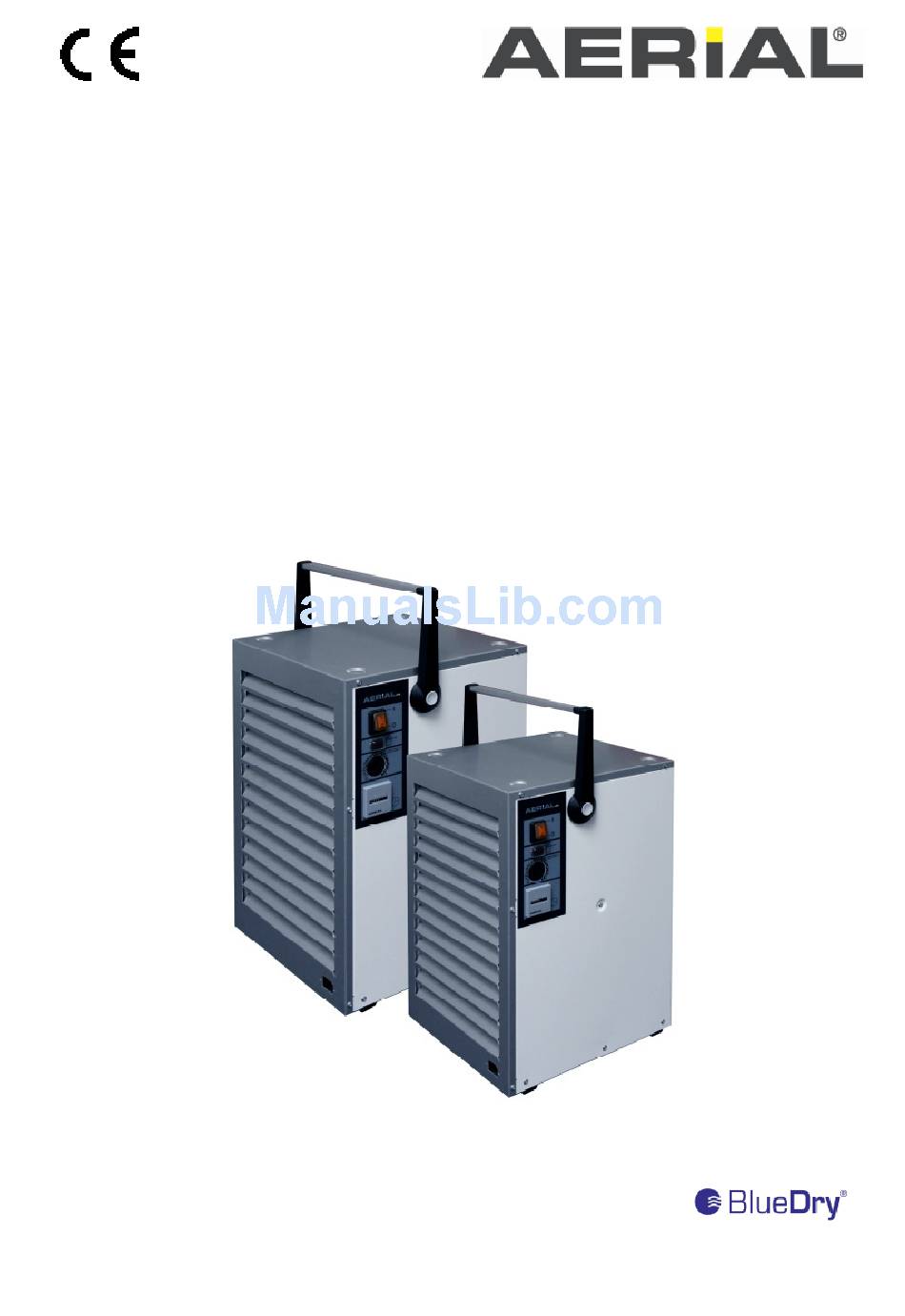

Dehumidifier AD 420 / AD 430
_____________________________________
valid: 02/2012
page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD 420 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aerial AD 420

  • Page 1 Instruction manual _____________________________________ Dehumidifier AD 420 / AD 430 _____________________________________ valid: 02/2012 page 1 of 16...
  • Page 2: Table Of Contents

    Index Illustration 1.1. View from rear AD 420 / 430 1.2. View from side / front AD 420 /430 General advice Mode of functioning Safety 5 - 6 Installation and transport Operation 6.1. Electrical connection 6.2. Putting into operation 6.3. Operation panel 6.4.
  • Page 3 (e) AMP-socket for connection of pump-out-kit (with blind-plug for using without pump-out-kit) (f) Balance for bucket (bucket is not shown) 1.2 View from front / side AD 420 / AD 430 (d) Hollows for adjusting an (a) stretcher identical type of device for handle storage purposes.
  • Page 4: General Advice

    2. General advice You have bought an air dryer made by AERIAL thus deciding for a proven quality product "Made in Germany". If there are any questions, you will find some advice in this manual how to eliminate such difficulties as quickly as possible.
  • Page 5: Safety

    6 – compressor 7 – fan 4. Safety The condensation dryers AD 420 / AD 430 are furnished with protective devices. The devices were subjected to a safety examination. Dangers threaten in the case of operating error or abuse - for the user.
  • Page 6: Installation And Transport

    5. Installation and transport The dehumidifiers of series AD 420 / 430 are conceived for the mobile or stationary employment. They are very light and can thereby carried completely simply by one person Optionally a wall bracket is available (optional extra) for stationary attachment at a wall.
  • Page 7: Operation 6.1. Electrical Connection

    That dehumidifier can be transported upright or laid flat! The upright transportation is to be preferred if possible. The AD 420 / 430 are stackable for storage. Maximum two units must be stack. The appliance must be used exclusively for air drying.
  • Page 8: Putting Into Operation

    6.2 Putting into operation ATTENTION: Before putting the air dryer into operation, the instruction manual should be studied carefully. Thus, damages by a false or inappropriate operation as well as by inadequate environmental conditions can be avoided. For using the air dryer, please proceed as follows: After having been transported, the air dryer should rest for about 15 min.
  • Page 9: Hygrostat Control

    6.4 Hygrostat control The air dryers of the AD-series dispose of a hygrostat for setting the required humidity value. This hygrostat is located in the operation panel of the unit. It makes that the air dryer cuts in as soon as the ambient humidity exceeds the preset value.
  • Page 10: Condensate Pump (Option)

    The dehumidifiers AD 420 / 430 are provided with water collecting bucket (AD 420 = 8,3 ltr / AD 430 = 12,0 ltr) and connection for hose 12 mm. The water bucket is in the device on a balance. The balance is activated by the weight of the full bucket and the device is switched off.
  • Page 11: Automatic Defrosting

    During air drying, ice may form at the evaporator. The volume of ice depends on the ambient conditions prevailing in the room to be dried. The AD 420 is equipped with an automatic air defrosting, the AD 430 is equipped with an automatic hot-gas defrosting. It ensures that, depending on the extent of ice...
  • Page 12: Operating Conditions

    In the case of doubtful operating conditions it is recommended to contact the Technical Department of Messrs. AERIAL or a specialized dealer. Using an AD-air dryer under inadequate operating conditions will entail that the warranty becomes null and void.
  • Page 13: Service And Maintenance

    (front/top-panel). Check hose connector and connected hose Clean case with moist cloth. Do not use aggressive detergent Insert new or cleaned filter. Use only original AERIAL-filter for problemfree working. Insert filter holder Put plug into socket...
  • Page 14: Condensate Outlet

    3) The compressor of the dehumidifier does not work, the fan still turns. - At AD 420: The unit is in defrost mode. In this case the fan still runs and the compressor does not run. After some minutes, the unit will start with regular working.
  • Page 15: Disposal

    If you have any questions regarding defects and malfunctions of AERIAL-air dryers we recommend get in touch with your supplier. The producer AERIAL GmbH you reach under 0049-40-526879-0 or www.aerial.de 11.
  • Page 16: Manufacturer´s Declaration

    AERIAL GmbH - Systeme zur Luftbehandlung Oststraße 128, D-22844 Norderstedt Product description: dehumidifier type AD 420 / AD 420-VA / AD 430 capacity: 19,0 l/Day / 30,5 l/day The product described above is an ambient air dryer ready for connection.
