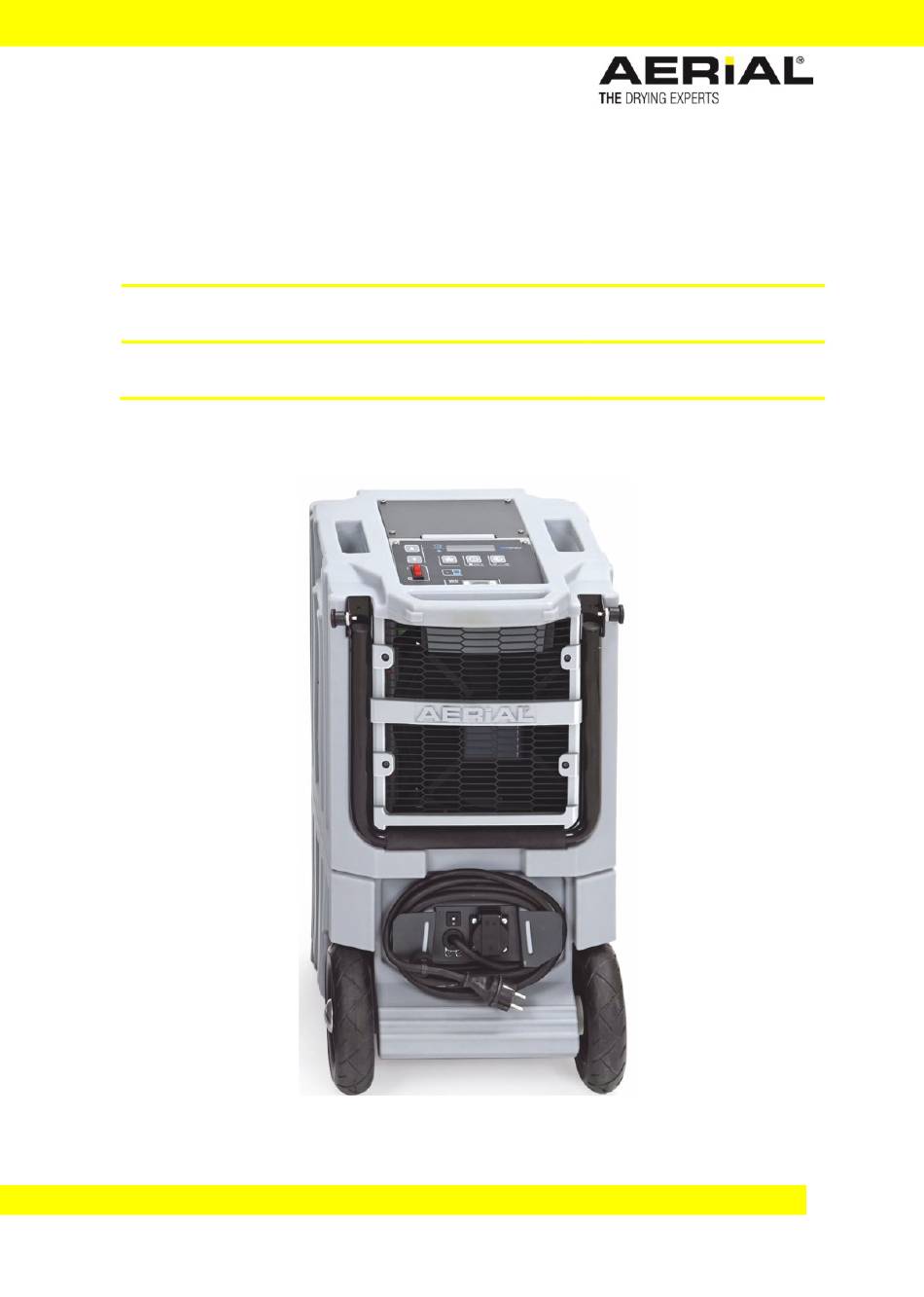

  • Page 1 MADE IN GERMANY INSTRUCTION MANUAL Air dehumidifier Series AD 740...
  • Page 2 This instruction manual shall not be reproduced, copied and distributed, neither in parts nor completely, without the manufacturer's written permit. All rights reserved. The instruction manual is based on the technical and product-specific parameters. The manufacturer reserves the right to add supplementary information to the instruction manual.

  • Page 3: Table Of Contents

    CONTENTS Notes on this instruction manual ____________________________________________ 3 Target groups ______________________________________________________________ 3 Conventions _______________________________________________________________ 3 Safety ____________________________________________________________________________ 4 Safety devices ______________________________________________________________ 4 Hazards from accessories __________________________________________________ 4 Authorized operator _______________________________________________________ 4 Safety instructions _________________________________________________________ 5 Performance description ______________________________________________________ 6 Designated use ____________________________________________________________ 6 Scope of delivery ___________________________________________________________ 6 Optional components ______________________________________________________ 6 Device description _________________________________________________________ 7...
  • Page 4 CONTENTS Specifications __________________________________________________________________ 27 EU Declaration of Conformity _______________________________________________ 29 Page 2 of 29...

  • Page 5: Notes On This Instruction Manual

    Target groups This instruction manual addresses all users / operators of the air dehumidifiers manufactured by AERIAL. These persons must have read and understood the instruction manual. The physical and psychological requirements for proper and safety-conscious handling of the dehumidifiers must always be met.

  • Page 6: Safety

    Type and source of hazard This symbol in connection with the word "Caution" warns of a risk CAUTION of minor or moderate injury and material damage.  Measures to avert danger or immediate measures if the risk occurs are described in this way In this box you find further tips and information concerning the use of the air dehumidifiers.

  • Page 7: Safety Instructions

    Responsibilities for the various activities on the air dehumidifiers must be clearly defined and observed. Unclear competencies are a safety risk. The user must: make the instruction manual accessible to the operator and  make sure that the operator has read and understood the instruction ...

  • Page 8: Performance Description

    Performance description You bought an air dehumidifier manufactured by AERIAL and thus decided for a well-proven product "Made in Germany". Designated use The air dehumidifier is designed exclusively for dehumidifying air at atmospheric pressure in enclosed indoor rooms. The air dehumidifier can prevent the formation of condensation water, remove excessive humidity and keep humidity at a defined constant level.

  • Page 9: Device Description

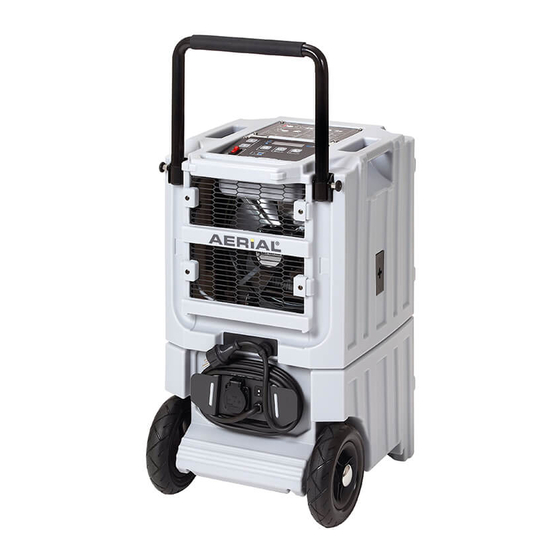

    Device description Fig. 1: Air dehumidifier AD 740 Handle Wheels Front wall (air outlet) Plug socket Fastening points for straps Fuse for plug socket 6 A Cable winder The air dehumidifier AD 740 is provided with two transport wheel and a fold-up handle.
  • Page 10 Fig. 2: Series AD740 air dehumidifier (rear view) Room sensor Defrosting tray Condensate drain pipe for Air intake area with air filter condensate drain hose Handle for removing the Water collecting tank refrigeration circuit Connection for a pump-out kit Bucket locking device or dewpoint kit Fig.

  • Page 11: Optional Components

    Pump-out kit for condensate Optionally the air dehumidifier can be equipped with a pump-out kit. Ask your AERIAL dealer for the "pump-out kit". It can be installed in just a few steps and can be removed just as quickly, too.

  • Page 12: Transport And Installation

    Transport and installation Transport Danger to life due to electric shock! Touching live parts can lead to death. Spillage of condensate on DANGER live parts can cause electric shock.  Switch off the air dehumidifier via the On/Off switch, and disconnect the power plug from the socket outlet before moving the unit.
  • Page 13 Danger of injury due to unfavourable posture and high weight! WARNING The air dehumidifier is heavy.  When moving or transporting the device always use the transport handles.  Lift the device with a colleague or use suitable lifting and transport equipment, as required.

  • Page 14: Installation

    We recommend to keep the packaging to ensure safe shipment of the air dehumidifier in case of any warranty claim. Use the carrying handles to transport the air dehumidifier to the place of installation. Installation Proceed as follows to install and transport the air dehumidifier: Install the air dehumidifier in a place in conformity with the operating conditions on a flat surface (see below).

  • Page 15: Electrical Connection

    Select the location in a way to ensure optimum circulation of the dehumidifier air in your room. The air dehumidifier must be installed on a flat ground. By using an air dehumidifier humidity values of 30% r. h. can be reached.
  • Page 16  Do not place any objects on the hose.  Check regularly whether condensate is properly discharged. Fig. 6: Cover plate with Fig. 7: Cover plate without water collecting tank water collecting tank Unlock the water collecting tank at the bucket locking device (fig. 2, item 4 on page 8).

  • Page 17: Operation And Operator Control

    Operation and operator control Danger of injury and damage to appliance Inadmissible ambient conditions or improper operation of the air CAUTION dehumidifier may constitute a risk.  Read the instruction manual before commissioning the air dehumidifier. Operating elements Fig. 8: Operating panel Current room humidity Watt meter (MID) Arrow key for increasing...

  • Page 18: Commissioning

    The energy consumption of the units connected to the unit socket (figure 1, item 6 on page 7) is not counted by the calibrated watt meter (item 7). Commissioning The air dehumidifier must have been properly installed and connected (chapter 5, from page 10) before it can be commissioned.
  • Page 19 Empty the water collecting tank as soon as it is full. In this case the red lamp on the operating panel is on. After re-inserting the water tank into the air dehumidifier, the air dehumidifier switches automatically on again. Automatic defrosting: During dehumidification ice may build up on the evaporator.

  • Page 20: Set Language

    Changing the fan steps fan speed high Step 2: Increased fan fan speed low performance Step 1: Lower fan performance When "Stop" or "Start" flashes on the display, operation is impossible. Set language Butto Press briefly Press for 5 s Display Switching off the air Stop...
  • Page 21 Select language Language Francais (EN, DE, FRA, ITA, SWE, NOR, FIN) Wait 3 sec. until flashing stops-> language saved Night mode activated Night mode 09:59 12345h Device runs 10 hours countdown mode at low fan speed, than at high fan speed Switch air dehumidifier on again...

  • Page 22: Maintenance And Service

    Maintenance and service Danger of injury by electric shock and risk of material damage WARNING  Always observe the general safety instructions when performing any maintenance and service work!  Switch the air dehumidifier off and pull the power plug before cleaning and inspection.

  • Page 23: Cleaning And Inspection

    Danger of cuts from the rotating fan blade and grilles during maintenance! WARNING  Do not reach into the air inlet and outlet grilles on the rear and front of the device.  Repairs or maintenance work may only be carried out by the manufacturer or personnel authorised by the manufacturer.

  • Page 24: Spare Parts And Customer Service

    Insert new or cleaned filter. Use only original filters to guarantee proper functioning of the air dehumidifier. Connect power cable. Switch air dehumidifier on. The air dehumidifier is ready for operation again and can be switched on by the On / Off switch, if required. Spare parts and customer service If you have any question concerning the air dehumidifier, or if you need spare parts, please contact your authorized dealer or the customer service.

  • Page 25: Fault Messages

    Fault messages Display Possible meaning Remedy Fault Sensor problem Get in touch with AERIAL Service Loss of coolant Get in touch with AERIAL Service Filter soiled Clean or, if required, replace the filter. Fan defective Get in touch with AERIAL...
  • Page 26 In the long described in chapter 7 at run, soiled filters can regular intervals! Use only cause damage to the air original AERIAL air filters. dehumidifier. Compressor and/or fan Entrust a specialized motor are/is defective. company with the repair of the air dehumidifier.
  • Page 27 5% of the set humidity are exceeded. Severe icing of cooling Automatic defrosting Get in touch with AERIAL coil (evaporator). An system defective Service ice block builds up. The humidity set on Hygrostat set to a value <...

  • Page 28: Shutdown, Storage And Disposal

    Shutdown, storage and disposal Shutdown If you do not need the air dehumidifier for a longer period of time you can shut it down for some time. To do so proceed as follows: Use the on/off button (see page 15, Fig. 8, item. 6) to switch the air dehumidifier off.
  • Page 29 10 Specifications Many different components installed in an air dehumidifier decide also on its dehumidifying performance. Since these components can never be completely identical the actual performance according to DIN EN 810 may deviate by up to 5% from the specified performance.
  • Page 30 watt Page 28 of 29...
  • Page 31 Description and identification of the machine Product Air dehumidifier Type AD740 Project number Aerial AD740 Function The air dehumidifier serves for dehumidifying air at atmospheric pressure in enclosed indoor rooms. It can prevent the formation of condensation water, remove excessive humidity and keep humidity at a defined constant level.
  • Page 32 Council of February 26, 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (revised version) Published in in L 96/79 dated 29-03-2014 Reference to the applied harmonised standards as referred to in Article 7(2): EN ISO 12100:2010-11 Safety of machinery - General principles for design - Risk assessment and risk reduction (ISO 12100:2010)
  • Page 33 Dealer stamp: Dantherm GmbH Oststrasse 148 · D-22844 Norderstedt Phone 0049 (0) 40 526 879 0 · Telefax 526 879 20 E-Mail: info@dantherm.de · Internet: www.aerial.de Page 31 of 29...
