Page 1: User Manual

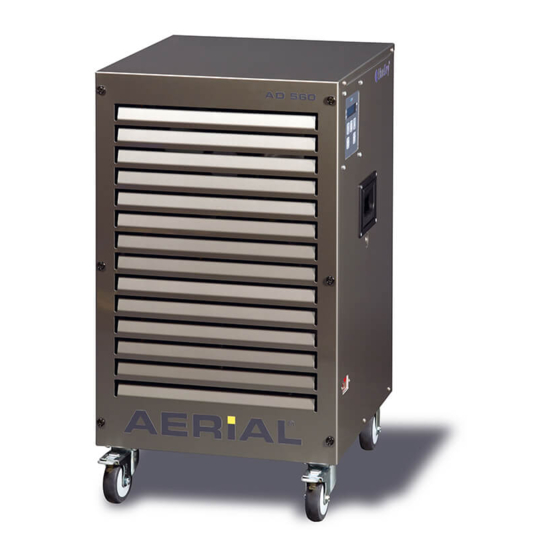

MADE IN GERMANY USER MANUAL Dehumidifiers Series AD 520 AD 580 AD 540 AD 660 AD 560 AD 680 AD 520 / 540 / 560 / 580 / 660 / 680... - Page 2 This Manual may not be reproduced, duplicated and distributed without the written permission of the manufacturer neither as a whole nor in part. All rights reserved. This Manual is based on the technical and product-specific parameters. The manufacturer reserves the right to add additional information to the user manual.
-
Page 3: Table Of Contents
Supplied Components _________________________________________ 6 Optional Components _________________________________________ 6 Device Description ____________________________________________ 7 Optional Components ________________________________________ 9 Wall Bracket for series AD 520/540 _______________________________ 9 Pump Kit for Condensation _____________________________________ 9 Transport and Installation ____________________________________ 10 Transport __________________________________________________ 10 Installation _________________________________________________ 11 Operating Conditions _________________________________________ 12 Electrical Connection. - Page 4 CONTENTS Decommissioning ____________________________________________ 24 Storage ____________________________________________________ 24 Disposal ___________________________________________________ 25 Technical Data _____________________________________________ 26 CE-Declaration of Conformity _____________________________________ 29 Page 2 of 29...
-
Page 5: About This Manual
Target Groups This manual is intended for operators and users of equipment from AERIAL. You must have read and understood the user manual. The physical and mental conditions for proper and safety-conscious handling of the equipment must be guaranteed at all times. -
Page 6: Safety
SAFETY Safety Safety Devices The dehumidifier AD-5 and AD-6 series has been subjected to a thorough security check. Incorrect operation or misuse can endanger: The operator, the Device and other property of the operator, the efficient working of the device. ... -
Page 7: Safety Instructions
SAFETY Safety Instructions The dehumidifier must not be used under the following conditions: In rooms with explosive atmospheres. In rooms with aggressive atmospheres, e.g Ammonia, Acids, Chemical and excessive chlorine content. In rooms with water which has a pH outside 7.0 to 9.0. ... -
Page 8: Specifications
SPECIFICATIONS Specifications You have purchased a dehumidifier from the company AERIAL and therefor chosen a high quality product “Made in Germany”. Intended Use The dehumidifier may only be used for dehumidification of air at atmospheric pressure in closed rooms. The dehumidifier can prevent the formation of condensation, reduce high levels of air humidity and hold a consistent level of air humidity. -
Page 9: Device Description
The dehumidifier can easily be carried by one person due to its light weight design. For the AD 520 and AD 540 a wall bracket for stationary fastening is available on request. Fig. 1: Dehumidifier series AD 520 / 540, AD 560 / 580, AD 660 / 680 (isometric view) Carrying handle... - Page 10 SPECIFICATIONS Fig. 2: Dehumidifiers AD Series 520 / 540, AD 560 / 580, AD 660 / 680 (Rear view) Room sensor Water collecting container AMP Connector for connecting Filter holder pump kits (With blind plugs for operation without the pump) AMP Connector for FGS Air intake area with air filter Sensor...
-
Page 11: Optional Components
Kit” available from your AERIAL dealer can be easily used with a few simple steps and removed again if desired. Fig. 2: Pump kit for dehumidifier series AD 520 / 540 (left), AD 560 / 580 und AD 660 / 680 (right) -
Page 12: Transport And Installation
TRANSPORT AND INSTALLATION Transport and Installation Transport Risk of death by electrocution Touching live parts can result in death. DANGER Before each change of location of the dehumidifier, turn off the device at the on / off switch and unplug the power cord from the wall outlet. -
Page 13: Installation
1. Place the dehumidifier on an appropriate place on a flat surface according to the terms of use (see page 12) 2. Make sure that the condensation can be safely collected. When using a wall bracket (optional for AD 520 and AD 540): Device damage by incorrect conditions of use/incorrect installation CAUTION ... -
Page 14: Operating Conditions
TRANSPORT AND INSTALLATION Operating Conditions Dehumidifiers are designed for mobile or stationary use indoors, on construction sites, in waterworks, swimming pools, garages and storage rooms. The dehumidifier easily work in the temperature range from +1 ° C to +34 ° C and the humidity range of 35% to 95% relative humidity. -
Page 15: Electrical Connection
TRANSPORT AND INSTALLATION Electrical Connection. Risk of death by electrocution The specifications of the dehumidifier must be DANGER compared with the conditions of the installation room before installing. Before connecting the dehumidifier the following points must be checked: The mains voltage must match the voltage of the dehumidifier! ... -
Page 16: Connecting The Pump Kit
TRANSPORT AND INSTALLATION in the bottom of the device facing downwards. Connecting the Pump Kit Equipment damage caused by improper installation Never push the pump kit with force into the dehumidifier. CAUTION Never place the screw caps with force. 1. - Page 17 4. Connect the AMP-socket of the pump kit with the now vacant slot. 5. Ensure that the turning bolt (AD 520 and 540) is turned all the way to the left (horizontal position). The lower fold of the pump kit rear panel must engage behind the lower edge of the water collection tank compartment.
-
Page 18: Operation And Control
OPERATION AND CONTROL Operation and Control Risk of injury and equipment damage Hazards may present from improper environmental conditions or CAUTION improper operation of the dehumidifier. Before commissioning the dehumidifier read the operation instructions. Controls AD 5 and 6 series Fig. -
Page 19: Installation
OPERATION AND CONTROL Installation To put the dehumidifier into operation, it must be correctly installed and connected (See chapter 5, page 10). Before putting the dehumidifier in operation, let it rest for 15 minutes in its final position after being moved. During this period, oil will be distributed in the refrigeration and compressor system. - Page 20 OPERATION AND CONTROL recommended for living spaces. For drying, the humidistat should be set to a continuous operation. For drying and keeping rooms dry with wood trims (E.g. parquet flooring) or paintings, antiques, etc. humidity should not be less than 55-60%. For unclear drying tasks, ask your consultant.
-
Page 21: Setting The Language
MAINTENANCE AND CARE Setting the Language Button Press briefly 5 second press Display After turning on the power switch deutsch Select your language (EN, DE) english Setting your language (EN, DE) The chosen language is set after three seconds. The language cannot be changed during operation. -
Page 22: Cleaning And Inspection
MAINTENANCE AND CARE Cleaning and Inspection The cleaning intervals are strongly dependant on the operating conditions. Therefore, check your dehumidifier regularly. To ensure trouble-free continuous operation of the dehumidifier, the dehumidifier must, especially the air filter, are regularly checked and cleaned. Proceed as follows: 1. -
Page 23: Troubleshooting
Intervention by unauthorized persons will void warranty claims. Error Messages Display shows Possible cause Solution Error Refer to the AERIAL Sensor problem service Refer to the AERIAL Loss of refrigerant service Unclean filter Clean or replace the... -
Page 24: Errors
Chapter 7! Use the dehumidifier. only original air filters from AERIAL. The compressor and / or Let a specialist repair the fan motor is defective. dehumidifier. The fan of the... - Page 25 TROUBLESHOOTING Problem Possible Cause Solution not plugged in or a pump kit is not connect correctly. Severe icing on the Incorrect ambient Set in a room with a min. + cooling coil conditions or a faulty 10 ° C room temperature (evaporator).
-
Page 26: Decommissioning, Storage And Disposal
DECOMMISSIONING, STORAGE AND DISPOSAL Decommissioning, Storage and Disposal Decommissioning If you do not need the dehumidifier for a prolong amount of time, you can temporarily take it out of service. Proceed as follows: 1. Turn off the dehumidifier at the on / off switch (Fig. 9, Pos. 5). 2. -
Page 27: Disposal
DECOMMISSIONING, STORAGE AND DISPOSAL Fig. 4: Dehumidifier AD 520 (also applies to AD 540) and the stacked AD 660 Disposal Please do not use household waste to dispose of this unit, you must dispose of it in accordance with the statutory provisions. -
Page 28: Technical Data
FI-Circuit breakers required on site pool Operating Conditions + 1 °C to + 34 °C 35% r.h. to 95% r. h. Type Unit AD 520 AD 540 Circulating air volume Fan Speed 1 m³ / h Fan Speed 2 m³ / h Power Consumption Watt max. - Page 29 TECHNICAL DATA Type Unit AD 560 AD 660 Circulating Air Volume Fan Speed 1 m³ / h Fan Speed 2 m³ / h Power Consumption Watt max. 1000 Noise Level dB (A) Dimensions 720 / 400 / 450 900 / 540 / 500 H x W x D Weight Refrigerant (see nameplate...
- Page 30 TECHNICAL DATA Type Unit AD 580 AD 680 Circulating Air Volume Fan Speed 1 m³ / h Fan Speed 2 m³ / h Power Consumption Watt max. 1074 Noise Level dB (A) Dimensions 790 / 450 / 450 975 / 600 / 520 H x W x D Weight Refrigerant (see nameplate...
-
Page 31: Ce-Declaration Of Conformity
Manufacturer: AERIAL GmbH - Systeme zur Luftbehandlung Oststraße 148, D-22844 Norderstedt Product Description: - Dehumidifier Series AD 520 / 540 / 560 580 / 660 / 680 The product described is an installation ready dehumidifier. Applicable Standards: EN ISO 12100... - Page 32 Täfernstrasse 14 · CH-5405 Baden-Dättwil Phone 0049 (0) 40 526 879 0 · Telefax 526 879 20 Phone 0041 56 470 21 55 · Telefax 56 470 21 57 E-Mail: info@aerial.de · Internet: www.aerial.de E-Mail: info@aerial.ch · Internet: www.aerial.ch · klima24.ch...
