- Page 1 MADE IN GERMANY INSTRUCTION MANUAL Air dehumidifier Series AD810-P...
- Page 2 This instruction manual shall not be reproduced, copied and distributed, neither in parts nor completely, without the manufacturer's written permit. All rights reserved. The instruction manual is based on the technical and product-specific parameters. The manufacturer reserves the right to add supplementary information to the instruction manual.
-
Page 3: Table Of Contents
CONTENTS Notes on this instruction manual ____________________________________________ 2 Target groups ______________________________________________________________ 2 Conventions _______________________________________________________________ 2 Safety ____________________________________________________________________________ 3 Safety devices ______________________________________________________________ 3 Hazards from accessories __________________________________________________ 3 Authorized operator _______________________________________________________ 3 Safety instructions _________________________________________________________ 4 Performance description ______________________________________________________ 5 Designated use ____________________________________________________________ 5 Scope of delivery ___________________________________________________________ 5 Optional components ______________________________________________________ 5 Device description _________________________________________________________ 6... -
Page 4: Notes On This Instruction Manual
AERIAL properly and safely. Therefore keep this instruction manual in a safe place. In the section below you will find information about the target groups of this instruction manual and the conventions used in this document. -
Page 5: Safety
SAFETY In this box you find further tips and information concerning the use of the air dehumidifiers. Safety Safety devices The series AD 810-P air dehumidifiers were subjected to thorough safety testing. Improper operation or misuse will cause danger to: the operator, ... -
Page 6: Safety Instructions
SAFETY Safety instructions The air dehumidifier must not be used under the following conditions: in rooms with potentially explosive atmospheres. in rooms with aggressive atmospheres, e.g. ammonia, wood acids, chemicals, excessive chlorine content etc. in rooms with water with a pH value outside the range from 7.0 to 7.4. ... -
Page 7: Performance Description
PERFORMANCE DESCRIPTION Performance description You bought an air dehumidifier manufactured by AERIAL and thus decided for a well- proven product "Made in Germany". Designated use The air dehumidifier is designed exclusively for dehumidifying air at atmospheric pressure in enclosed indoor rooms. -
Page 8: Device Description

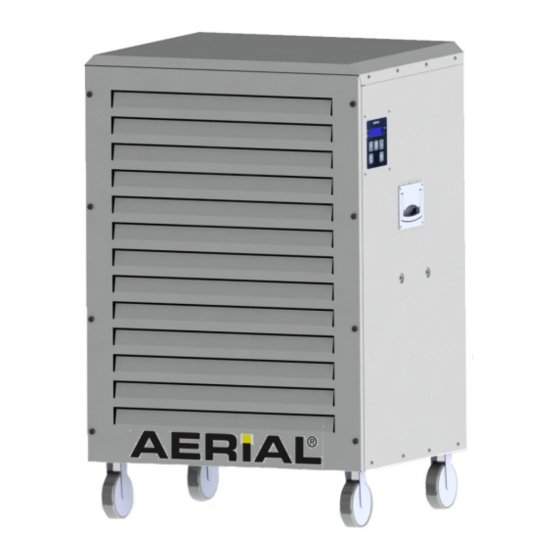

PERFORMANCE DESCRIPTION Device description The air dehumidifier is equipped with two lateral handles, two guide pulleys and two transport rollers. Fig. 1: AD810-P series air dehumidifier (isometric view) Front wall (air outlet) Carrying handle on the side Transport rollers Operating panel Page 6 of 27... - Page 9 PERFORMANCE DESCRIPTION Fig. 2: Series AD810-P air dehumidifier (rear view) Filter holder Pushbutton for manual draining Air intake area with air filter Amphenol can for dewpoint kit Power cable Condensation water connection Page 7 of 27...
- Page 10 PERFORMANCE DESCRIPTION Fig. 3: Room sensor AD810-P has been fitted with condensate drain pump, with which the condensate water is drained. The pump has a maximum head of 4 m. To close the condensate water hose, please use the quick coupling supplied (Fig. 4). Fig.
-
Page 11: Transport And Installation
TRANSPORT AND INSTALLATION Transport and installation Transport Danger to life due to electric shock Touching live parts can lead to death. DANGER Switch off the air dehumidifier via the On/Off switch, and disconnect the power plug from the socket outlet before moving the unit. - Page 12 TRANSPORT AND INSTALLATION Danger of injury The air dehumidifier is heavy. Loss of stability or uncontrolled WARNING movements may cause serious injuries and material damage. The air dehumidifier should be transported upright. Always secure the air dehumidifier against tipping or rolling. ...
-
Page 13: Installation
TRANSPORT AND INSTALLATION Installation Proceed as follows to install and transport the air dehumidifier: Install the air dehumidifier in a place in conformity with the operating conditions on a flat surface. Ensure that the condensate can always be reliably collected or discharged. Operating conditions Air dehumidifiers are intended for mobile or stationary use in closed rooms, on building sites, in water works, indoor swimming pools, garages and storage rooms. -
Page 14: Electrical Connection
TRANSPORT AND INSTALLATION Electrical connection Danger to life due to electric shock Prior to commissioning the technical data of the air DANGER dehumidifier must be compared with the conditions prevailing in the room of installation! The following items must be checked prior to electrical connection of the air dehumidifier: The mains voltage must be in conformity with the voltage of the air dehumidifier! ... -
Page 15: Connect Condensate Drain Hose
Push the quick coupling on to the condensate drain connection. Connection of the optional dewpoint kit (AERIAL Art. No. 5307-0025) Pull the power plug. Push the Amphenol plug of the dewpoint kit into the Amphenol socket on the rear side of the air dehumidifier (Fig. -
Page 16: Operation And Operator Control
OPERATION AND OPERATOR CONTROL Operation and operator control Danger of injury and damage to appliance Inadmissible ambient conditions or improper operation of the air CAUTION dehumidifier may constitute a risk. Read the instruction manual before commissioning the air dehumidifier. Operating elements AD810-P Fig. -
Page 17: Commissioning
OPERATION AND OPERATOR CONTROL Commissioning The air dehumidifier must have been properly installed and connected (refer to chapter 4, from page 9) before it can be commissioned. Before commissioning the air dehumidifier allow it to rest in its final position for about 15 minutes after transport. During this time, the oil distributed in the cooling system and churned up by transport will flow back to the compressor. - Page 18 OPERATION AND OPERATOR CONTROL Operation with optional dewpoint kit (AERIAL Art. No. 5307-0025): Use the on/off button on the operating panel to switch on the air dehumidifier with the dewpoint kit fitted (see Connection of the optional dewpoint kit, page 13) Use the arrow key to set the hygrostat to continuous operation (Fig.
-
Page 19: Set Language
MAINTENANCE AND SERVICE Changing the fan steps fan speed high Step 2: Increased fan performance Step 1: Lower fan performance fan speed low When "Stop" or "Start" flashes on the display, operation is impossible. Set language Button Press briefly Press for 5 s Display After switching on the power switch... - Page 20 MAINTENANCE AND SERVICE Danger of injury by electric shock and risk of material damage Cleaning work and spillage of condensate on live parts involve danger WARNING of electric shock. Always observe the general safety instructions when performing any maintenance and service work! ...
-
Page 21: Cleaning And Inspection
MAINTENANCE AND SERVICE Dust hazard During cleaning with compressed air dust is released into the CAUTION atmosphere. Clean foam filter from outside and inside with a vacuum cleaner, if necessary wash and dry it. Clean device with compressed air only in an open environment;... -
Page 22: Spare Parts And Customer Service
TROUBLESHOOTING Spare parts and customer service If you have any question concerning the air dehumidifier, or if you need spare parts, please contact your authorized dealer or the customer service. Troubleshooting If problems arise with the dehumidifier please check the following points. Should the fault not be located please contact your technical advisor. -
Page 23: Fault Messages
TROUBLESHOOTING Fault messages Display Possible meaning Remedy Fault Sensor problem Get in touch with AERIAL Service Loss of coolant Get in touch with AERIAL Service Filter soiled Clean or, if required, replace the filter. fan defective Get in touch with AERIAL... - Page 24 Tip: perform maintenance as soiled filters can cause described in chapter 6 at damage to the air regular intervals! Use only original AERIAL air filters. dehumidifier. Compressor and/or fan Entrust a specialized company motor are/is defective. with the repair of the air dehumidifier.
- Page 25 TROUBLESHOOTING Severe icing of cooling Wrong ambient conditions Place the air dehumidifier in a coil (evaporator). An ice or air dehumidifier room with a minimum room block builds up. defective. temperature of +10 °C and wait until the ice has defrosted. Switch the air dehumidifier on and let it run for about 3 hours.
-
Page 26: Shutdown, Storage And Disposal
SHUTDOWN, STORAGE AND DISPOSAL Shutdown, storage and disposal Shutdown If you do not need the air dehumidifier for a longer period of time you can shut it down for some time. To do so proceed as follows: Use the button for manual draining (see page 7, fig. 2) to empty the pump, and remove the condensation water hose. -
Page 27: Specifications
SPECIFICATIONS Specifications Many different components installed in an air dehumidifier decide on its dehumidifying performance. Since these components can never be completely identical the actual performance according to DIN EN 810 may deviate by up to 5% from the specified performance. General data Power supply 230 V / 50 Hz... -
Page 28: 10 Ce Declaration Of Conformity
Person established in the Community authorised to compile the technical file AERIAL GmbH • Systeme zur Manfred Föhlisch Luftbehandlung AERIAL GmbH • Systeme zur Luftbehandlung Oststrasse 148 Oststrasse 148 D - 22844 Norderstedt D - 22844 Norderstedt Description and identification of the machinery... - Page 29 CE DECLARATION OF CONFORMITY Published in L 96/357 of 29.03.2014 2014/30/EU Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast) Published in L 96/79 of 29.03.2014 Reference to the harmonised standards used, as referred to in Article 7 (2):...
- Page 32 Dealer Stamp AERIAL GmbH Systeme zur Luftbehandlung Oststrasse 148 · D-22844 Norderstedt Phone 0049 (0) 40 526 879 0 · Telefax 526 879 20 E-Mail: info@aerial.de · Internet: www.aerial.de...
