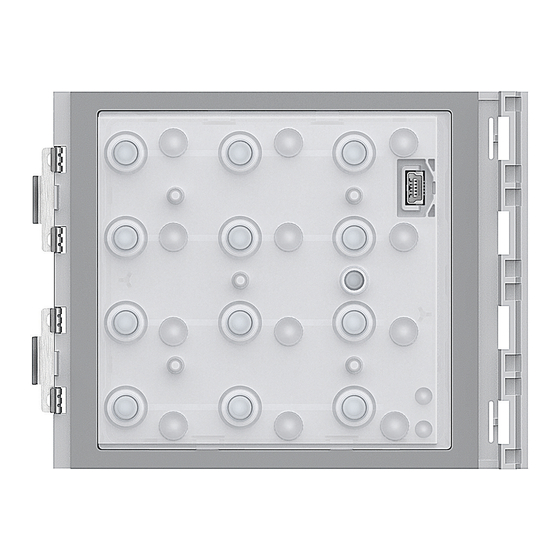

Sfera Keypad Module
353000
User and installation manual
www.bticino.com

Advertisement

Table of Contents
loading

Related Manuals for Bticino Sfera

Summary of Contents for Bticino Sfera

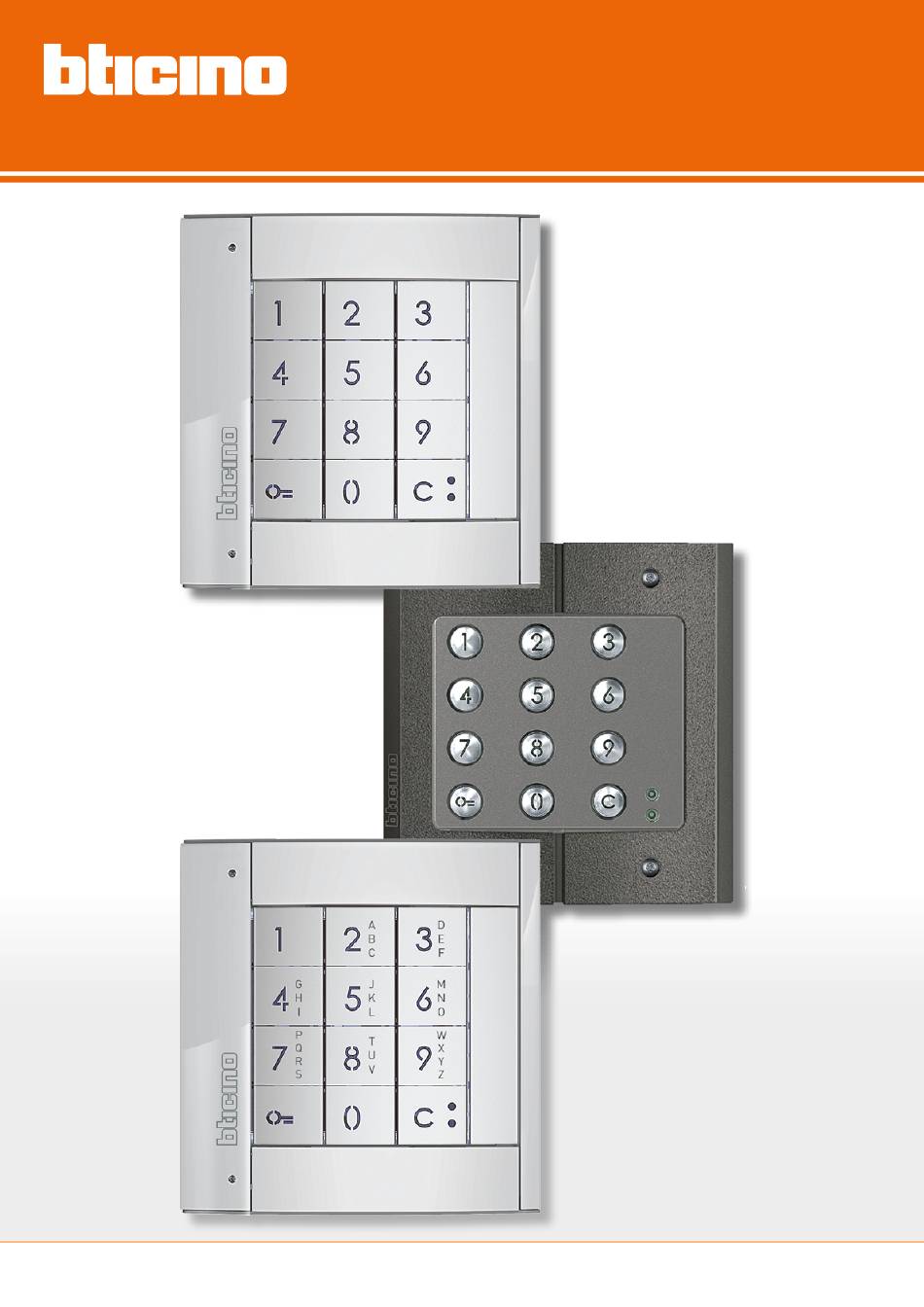

  • Page 1 Sfera Keypad Module 353000 User and installation manual www.bticino.com...
  • Page 2 Sfera Keypad Module User and installation manual...

  • Page 3: Table Of Contents

    Disassembling Use of the device Door lock control Door lock control with stand-alone Keypad Module 353000 Door lock control with Sfera Speaker Module 351100/351200/351300 and Keypad Module 353000 Direct call with Sfera Speaker Module 351100/351200/351300 and Keypad Module 353000 Device configuration...

  • Page 4: General Information

    Sfera Keypad Module User and installation manual General information The Sfera Keypad Module must be used only on BTicino 2 wires digital systems. Finishes that can be associated to the BTicino Sfera Keypad Module: Front cover 353005 Front cover 353001/02/03...

  • Page 5: Warnings And Recommendations

    Sfera Keypad Module User and installation manual Warnings and recommendations It is important to read this manual carefully before proceeding with the installation. The warranty becomes automatically void in case of negligence, improper use, tampering by unauthorised personnel. Regulatory warnings...

  • Page 6: Front View

    Sfera Keypad Module User and installation manual Front view 1. Digital keypad + key illumination LED. 3. Programming pushbutton.. key for the selection of the door lock 4. Red LED on steady: access denied, or release code programming error key for the replacement of the codes.

  • Page 7: Back View

    Sfera Keypad Module User and installation manual Back view 1. Connection of door lock pushbutton (CP- 4. Connector for the connection to P1) and tamper (CP-P2 – future application). subsequent modules. 2. Local relay contacts. 5. Connector for the connection to previous modules.

  • Page 8: Installation

    Sfera Keypad Module User and installation manual Installation Mounting Caution: Installation, configuration, starting-up and maintenance must be performed exclusively by qualified personnel.
  • Page 9 Sfera Keypad Module User and installation manual...

  • Page 10: Disassembling

    Sfera Keypad Module User and installation manual Disassembling...
  • Page 11 Sfera Keypad Module User and installation manual...

  • Page 12: Use Of The Device

    When combined with speaker module item 351100/351200/351300 and appropriately configured, it also allows direct call. Note: This manual refers to the Sfera wired stand-alone Keypad Module or paired with the Sfera Speaker Module (351100/351200/351300). If the Sfera Keypad Module is installed linked to the Display Module (352500) refer to the Display manual for the code programming.

  • Page 13: Direct Call With Sfera Speaker Module 351100/351200/351300 And Keypad Module 353000

    Direct call with Sfera Speaker Module 351100/351200/351300 and Keypad Module 353000 Linking the Sfera Speaker Module and the Keypad Module allows direct call to an internal unit using the code. Enter the call code, 1 to 4 digits, between 0 and 3999.

  • Page 14: Device Configuration

    This interruption will be notified with an extended beep and the switching on of the red LED. Note : only with Sfera Speaker Module 351100/351200/351300 + the associated Sfera Pushbutton Modules 352000/352100 or only with the Sfera Keypad Module.
  • Page 15 Sfera Keypad Module User and installation manual 3. Enter the code (4 to 9 digits). 4. Press the A short beep confirms the programming of the new administrator code. 5. Re-enter the code to confirm Exact code: Green LED ON and short beep.
  • Page 16 A short beep and the switching off of the LED indicates that the programming sequence is complete. The Sfera Keypad module is ready for normal operation. During the programming procedure, it will be necessary to follow some rules: - keys must be pressed in succession (with maximum 2 seconds in between pressures).

  • Page 17: Deleting Administrator Codes

    Sfera Keypad Module User and installation manual Deleting administrator codes 1. Press and hold down the programming pushbutton; the green LED starts flashing. 2. Press and hold down the button; the device emits 1 beep per second and a long beep after 10 seconds.

  • Page 18: Passepartout Code

    This interruption will be notified with an extended beep and the switching on of the red LED. Note : only with Sfera Speaker Module 351100/351200/351300 + the associated Sfera Pushbutton Modules 352000/352100 or only with the Sfera Keypad Module.
  • Page 19 Sfera Keypad Module User and installation manual 4. Press the A short sound confirms the programming of the new passepartout code. 5. Re-enter the code to confirm Exact code: Green LED ON and short beep. Wrong code: Red LED ON and long beep.
  • Page 20 A short beep and the switching off of the LED indicates that the programming sequence is complete. The Sfera Keypad module is ready for normal operation. During the programming procedure, it will be necessary to follow some rules: - keys must be pressed in succession (with maximum 2 seconds in between pressures).

  • Page 21: Deleting Administrator Codes

    Sfera Keypad Module User and installation manual Deleting administrator codes Three times 1. Enter the administrator code three times in a row. The device emits a long confirmation beep. The red LED flashes and then switches on to confirm that the deletion is complete.

  • Page 22: Replacement Of Passepartout Codes

    Sfera Keypad Module User and installation manual Replacement of passepartout codes 1. Press until the green LED starts flashing. 2. Enter the passepartout code 3. Press the 4. Enter the new code...
  • Page 23 Sfera Keypad Module User and installation manual 5. Press the A short sound confirms the programming of the new passepartout code. 6. Enter the code again to confirm. The device emits a long confirmation beep. 7. If the procedure is successful, the green LED stays on for approximately 1 second and then switches off.

  • Page 24: Resident Code

    LED. Entering an unrecognised code will cause the interruption of the programming procedure. This interruption will be notified with an extended beep and the switching on of the red LED. Note : only with Sfera Speaker Module 351100/351200/351300 + the associated Sfera Pushbutton Modules 352000/352100. New resident code 1.
  • Page 25 Sfera Keypad Module User and installation manual 5. Press the A short beep confirms the programming of the new resident code. 6. Re-enter the code to confirm Exact code: Green LED ON and short beep. Wrong code: Red LED ON and long beep.
  • Page 26 A short beep and the switching off of the LED indicates that the programming sequence is complete. The Sfera Keypad module is ready for normal operation. During the programming procedure, it will be necessary to follow some rules: - keys must be pressed in succession (with maximum 2 seconds in between pressures).

  • Page 27: Deleting Resident Codes

    Sfera Keypad Module User and installation manual Deleting resident codes Note : only with Sfera Speaker Module 351100/351200/351300 + the associated Sfera Pushbutton Modules 352000/352100. 1. Enter the administrator code The device emits a confirmation beep and the green LED flashes The programming stage has started.
  • Page 28 Sfera Keypad Module User and installation manual The red LED flashes and then switches on to confirm that the deletion is complete.

  • Page 29: Replacing Resident Codes

    Sfera Keypad Module User and installation manual Replacing resident codes 1. Press until the green LED starts flashing. 2. Enter the resident code. 3. Press the 4. Enter the new code...
  • Page 30 Sfera Keypad Module User and installation manual 5. Press the A short beep confirms the programming of the new resident code. 6. Enter the code again to confirm. The device emits a long confirmation beep. If the procedure is successful, the green LED stays on for approximately 1 second and then switches off.

  • Page 31: Reset

    Reset Should it become necessary to delete all the previously stored codes, it will be possible to reset the Sfera Keypad Module. After the reset, the module will be set to the default settings. Caution: disconnect the power supply (BUS).

  • Page 32: Configuration Using The Software

    Sfera Keypad Module to the PC using a USB-miniUSB cable. miniUSB - USB When updating the software the device must be powered. The Sfera Keypad Module connected using a USB cable is recognised by the PC as a virtual port (VIRTUAL COM).
  • Page 33 Sfera Keypad Module User and installation manual...
  • Page 34 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
