353200
Sfera Proximity
Reader
Installer manual
07/12-01 PC

Advertisement

Table of Contents
loading

Related Manuals for Bticino Sfera

Summary of Contents for Bticino Sfera

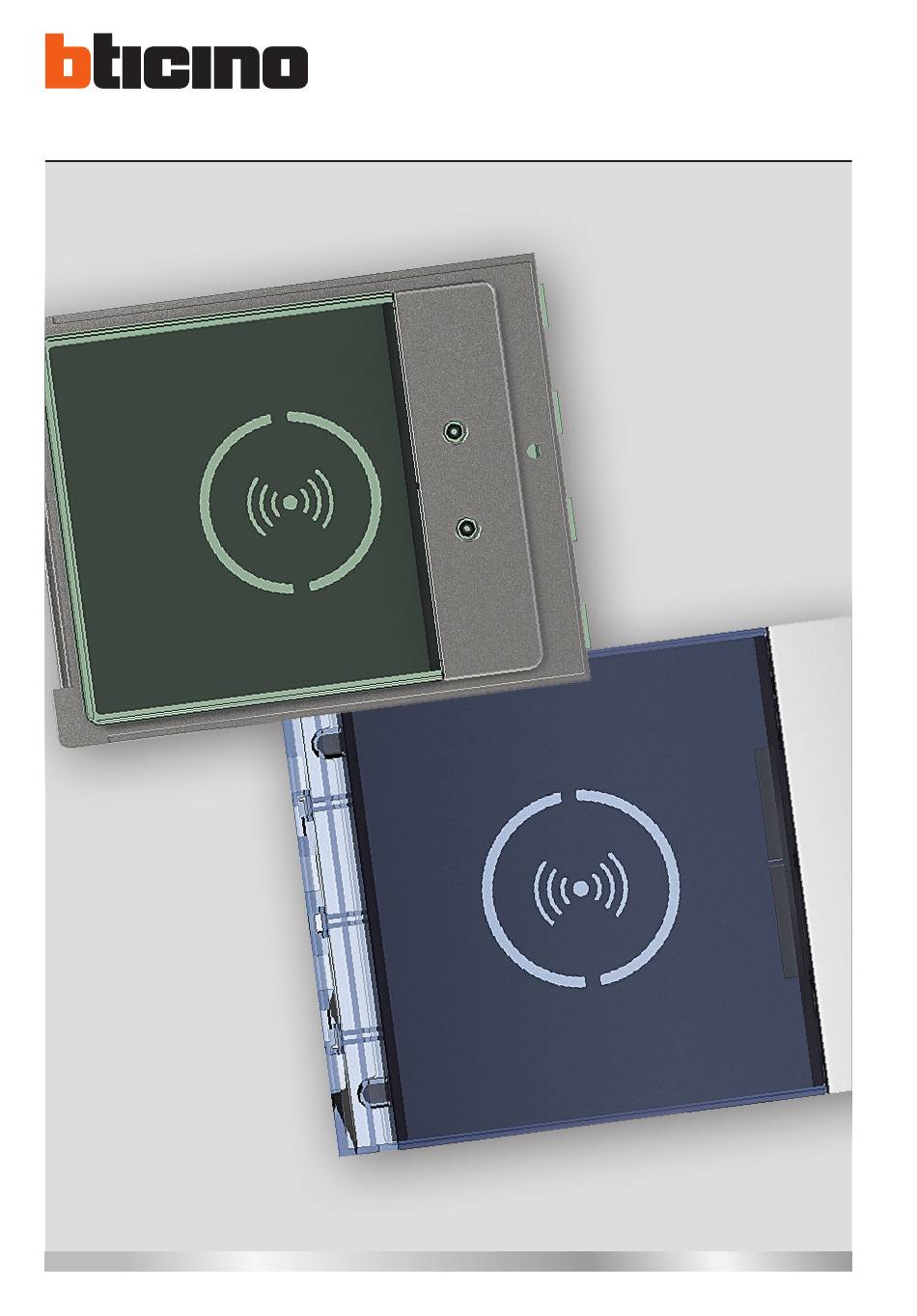

  • Page 1 353200 Sfera Proximity Reader Installer manual 07/12-01 PC...

  • Page 3: Table Of Contents

    Sfera Proximity Reader Contents 1 Introduction Warnings and recommendations 2 Description Main functions Front view Back view 3 Configuration Manager master badge 3.1.1 New manager master badge 3.1.2 Deleting the manager master badge Passepartout badge 3.2.1 New passepartout badge 3.2.2 Deleting passepartout badges Resident badge 3.3.1 New resident badge (M= 00)

  • Page 4: Introduction

    The warranty will automatically become void in case of negligence, improper use, and tampering by unauthorised personnel. The Sfera Proximity Reader must only be used with BTicino 2 wire digital systems. Front covers that may be used with the Sfera BTicino Proximity reader:...

  • Page 5: Description

    Sfera Proximity Reader 2 Description Main functions The BTicino Sfera Proximity Reader enables residents to open a door lock using univocal codes, read by appropriate badges. The device consists of an antenna used for reading the badge (transponder), and luminous and sound indicators for the control of the correct storage of the codes inside the badge.

  • Page 6: Front View

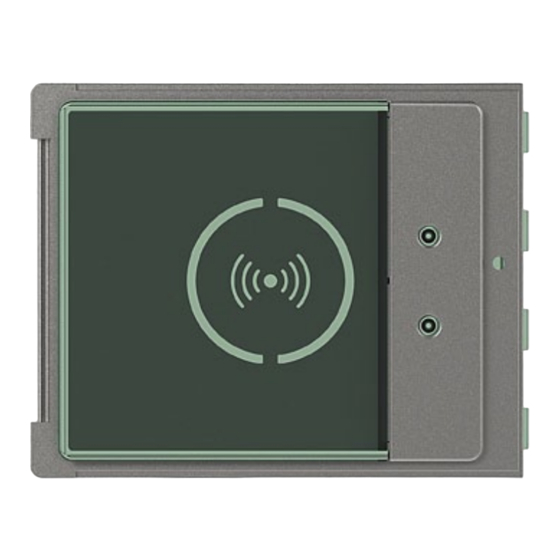

    2 Description Front view 1 - Programming reset pushbutton. 2 - Mini-USB programming connector. 3 - Red LED on steady: access denied, or programming error. 4 - Green LED on steady: access granted, or programming successful. 5 - Antenna.

  • Page 7: Back View

    Sfera Proximity Reader Back view 1 - Connection to the door lock (CP-P1) and tamper (CP-P2 – future application) pushbutton. 2 - Local relay contacts. 3 - Connection to the BUS. 4 - Connector for the connection to subsequent modules.

  • Page 8: Configuration

    3 Configuration Manager master badge For safety reasons, a “MASTER” badge is required, directly programmed by the installer, providing access to the programming of the other badges (apartment master, passepartout, and residents). To access programming mode, a master badge must be allocated to the device. Up to 20 master badges may be saved.
  • Page 9 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds from the moment the pro-...

  • Page 10: Deleting The Manager Master Badge

    3 Configuration 3.1.2 Deleting the manager master badge Press and hold down the programming pushbutton; the green LED flashes. Continue holding down the pushbutton; the device emits 1 beep per second, and a long beep after ten seconds. The red LED flashes and then switches off to confirm that the deletion has been performed.

  • Page 11: Passepartout Badge

    Sfera Proximity Reader Passepartout badge To access the programming of a “Passepartout” badge, a master badge is necessary. Up to 100 passepartout badges may be saved. The proximity reader will confirm that the badge has been accepted by means of audible signals and the switching on of the green LED.
  • Page 12 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 13: Deleting Passepartout Badges

    Sfera Proximity Reader 3.2.2 Deleting passepartout badges Place a manager master badge close to the reader; The device emits a beep, and the green LED starts Three times flashing. Manager master Repeat the operation three times in succession. The device emits a long confirmation beep.

  • Page 14: Resident Badge

    3 Configuration Resident badge To access the programming of a “RESIDENT” badge a manager master badge or an apartment badge is necessary (depending on the mode used). By configuring the device with M=00, this can be associated with 5 badges per apartment. By configuring the device with M=01, the master badge may be assigned to the apartment, and then use it to program the resident badges.
  • Page 15 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 16: Deleting Resident Badges (M=00)

    3 Configuration 3.3.2 Deleting resident badges (M=00) M= 00 managing residents using the manager master. Manager master Place a master badge close to the reader; The device emits a beep, and the green LED starts flashing. 352500 Using the key module (352000, 352100) or the display (352500), select the apartment from which the resident badges must be eliminated;...
  • Page 17 Sfera Proximity Reader Move the same master badge previously used near the reader to confirm that it has been cancelled. Manager master The device emits a long confirmation beep. The red LED flashes and then switches off to confirm that the deletion has been performed.

  • Page 18: New Apartment Master Badge (M=01)

    3 Configuration 3.3.3 New apartment master badge (M=01) M= 01 managing residents using the apartment master. Manager master Place a manager master badge close to the reader; the reader emits a short beep and the green LED starts flashing. The programming procedure starts. 352500 Using the key module (352000, 352100) or the display (352500), select the apartment the resident...
  • Page 19 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 20: Deleting The Apartment Master Badge (M=01)

    3 Configuration 3.3.4 Deleting the apartment master badge (M=01) M= 01 managing residents using the apartment master. Three times Manager Place a manager master badge close to the reader; master the device emits a beep, and the green LED starts flashing.

  • Page 21: New Resident Badge (M= 01)

    Sfera Proximity Reader 3.3.5 New resident badge (M= 01) M= 01 managing residents using the apartment master. Apartment Master Place an apartment master badge close to the reader; the reader emits a short beep and the green LED starts flashing.
  • Page 22 A short beep and the switching off of the LED confirm that the programming sequence has been completed. The Sfera Proximity Reader is ready for normal operation. The programming sequence must start within 30 seconds and must be carried out in...

  • Page 23: Deleting Resident Badges (M=01)

    Sfera Proximity Reader 3.3.6 Deleting resident badges (M=01) M= 01 managing residents using the apartment master. Three times Apartment Place an apartment master badge close to the Master reader; the device emits a beep, and the green LED starts flashing.

  • Page 24: Advanced Configuration

    Sfera Proximity Reader to the PC using a USB-miniUSB cable. miniuSB - uSB When updating the software the device must be powered. The Sfera Proximity Reader connected using an USB cable is recognised by the PC as a virtual port (VIRTUAL COM).

  • Page 25: Reset

    Sfera Proximity Reader Reset If it is necessary to delete all previously saved badges, It is also possible to reset the Sfera Proximity Reader and delete all the previously set modules. Holding down the Disconnect the power supply The red LED...

  • Page 26: Appendix

    3,5 A, 30 Vac cosφ = 0,4 Operating temperature (-25) – (+70) °C Technical After-Sales Service BTicino only accepts responsibility for perfect device operation if it is installed to the state of the art respecting the indications of the product installation manual. www.bticino.com...
  • Page 27 Sfera Proximity Reader...
  • Page 28 BTicino SpA Via Messina, 38 20154 Milano - Italy www.bticino.com BTicino SpA reserves at any time the right to modify the contents of this booklet and to communicate in any form and modality, the changes brought to the same.
