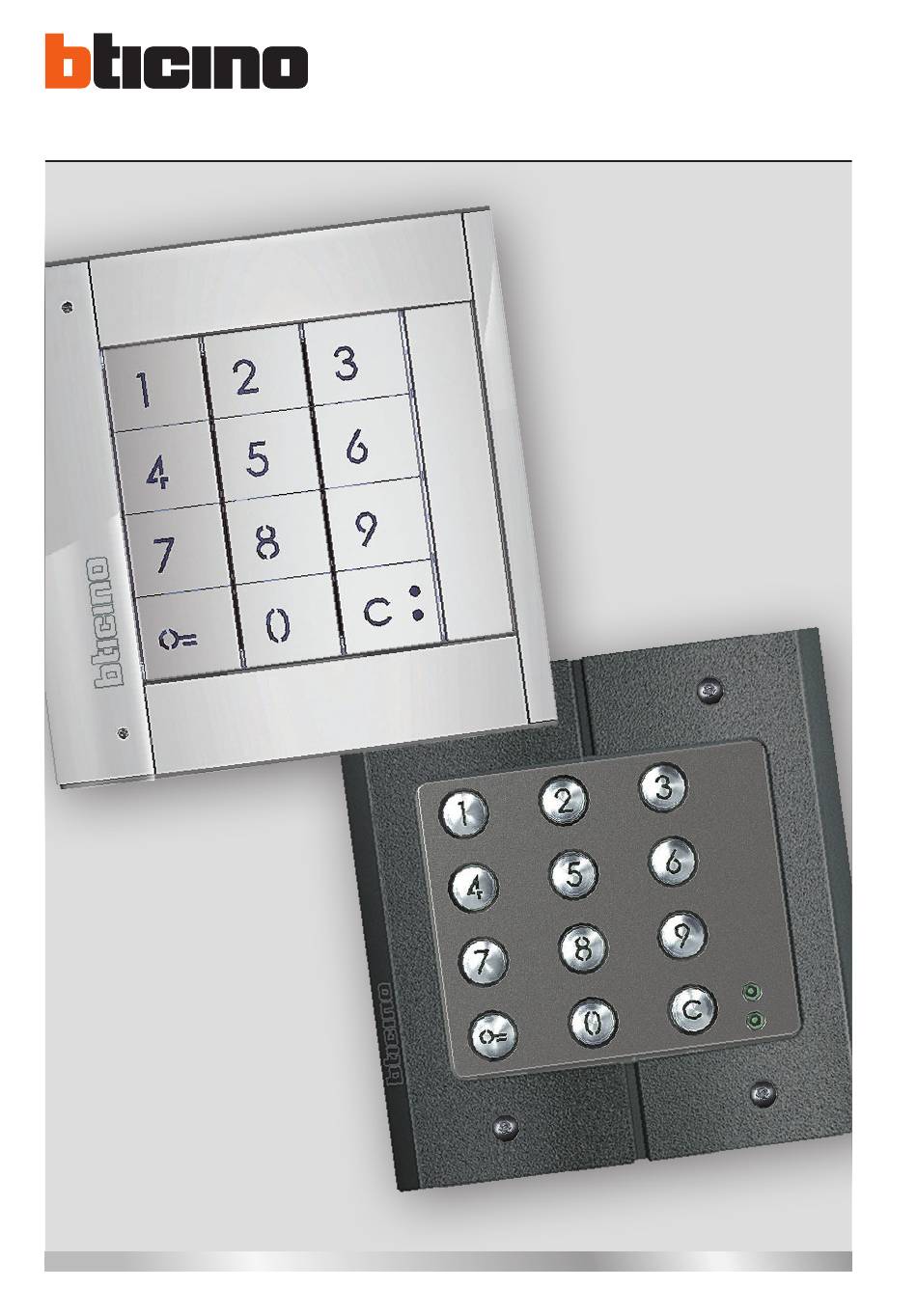

- Page 1 353000 Sfera Keypad Module Installer manual 04/16-01 PC...
-
Page 3: Table Of Contents
Sfera Keypad Module Contents 1 Introduction Warnings and recommendations 2 Description Main functions Front view Back view 3 Configuration Master code 3.1.1 New master code 3.1.2 Deleting master codes Passepartout code 3.2.1 New passepartout code 3.2.2 Deleting passepartout codes 3.2.3 Replacing the passepartout code Resident code 3.3.1 New resident code... -
Page 4: Introduction
The warranty will automatically become void in case of negligence, improper use, and tampering by unauthorised personnel. The Sfera Keypad Module must only be used with BTicino 2 wire digital systems. Front covers that may be used with the Sfera BTicino Keypad Module:... -
Page 5: Description

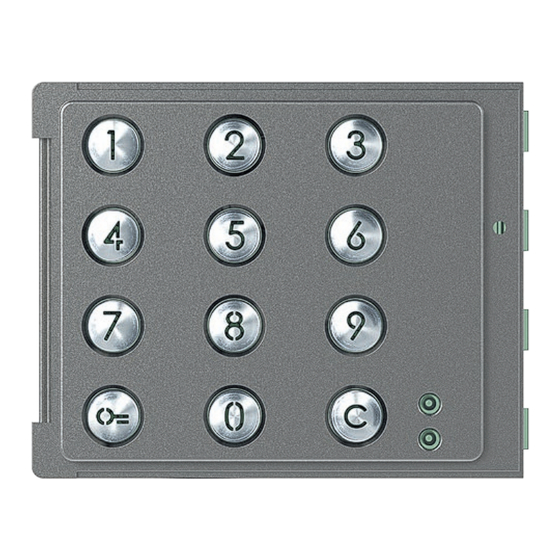

2 Description Main functions The BTicino Sfera Keypad Module can be used by residents to open a door lock using previously stored numerical codes. The device consists of a backlit pushbutton panel with 12 keys and luminous indicators, for con- trolling that the code has been entered correctly. -
Page 6: Front View
2 Description Front view 1 - Digital keypad + key illumination LED. key for the selection of the door lock release code. key for the replacement of the codes. 2 - Mini-USB programming connector. 3 - Programming pushbutton. 4 - Red LED on steady: access denied, or programming error. 5 - Green LED on steady: access granted, or programming successful. -
Page 7: Back View
Sfera Keypad Module Back view 1 - Connection of door lock pushbutton (CP-P1) and tamper (CP-P2 – future application). 2 - Local relay contacts. 3 - Connection to the BUS. 4 - Connector for the connection to subsequent modules. 5 - Connector for the connection to previous modules. -
Page 8: Configuration
Master code (only with Sfera Speaker Module 351100/351200/351300 and the associated Sfera Pushbutton Modules 352000/352100 or only with the Sfera Keypad Module) For safety reasons, the system gives the installer the possibility of programming a “MASTER” code. This can be used to access the programming of the other codes (passepartout and resident codes). - Page 9 A short beep and the LEDs switching off indicate that the programming procedure has been terminated. The Sfera Keypad Module is now ready for normal operation. During programming, some rules must be followed: - keys must be pressed consecutively (maximum 2 seconds between pressures);...
-
Page 10: Deleting Master Codes
3 Configuration 3.1.2 Deleting master codes Press and hold down the programming pushbutton; the green LED flashes. Continue holding down the pushbutton; the device emits 1 beep per second, and a long beep after ten seconds The red LED flashes and then switches off to confirm that the deletion has been performed. -
Page 11: Passepartout Code
Passepartout code (only with Sfera Speaker Module 351100/351200/351300 and the associated Sfera Pushbutton Modules 352000/352100 or only with the Sfera Keypad Module) To access the programming of a “Passepartout” code, a master code is necessary. up to 20 passepartout codes may be saved. - Page 12 A short beep and the LEDs switching off indicate that the programming procedure has been ter- minated. The Sfera Keypad Module is now ready for normal operation. During programming, some rules must be followed: - keys must be pressed consecutively (maximum 2 seconds between pressures);...
-
Page 13: Deleting Passepartout Codes
Sfera Keypad Module 3.2.2 Deleting passepartout codes Enter the master codes three times in succession. Three times The device emits a long confirmation beep. The red LED flashes and then switches off to confirm that the deletion has been performed. -
Page 14: Replacing The Passepartout Code
3 Configuration 3.2.3 Replacing the passepartout code The green LED flashes. Enter the Press the key until passepartout code. the green LED starts flashing. Enter the new Press the key. Press the key. code. A short beep confirms the programming of the new passepartout code. - Page 15 Sfera Keypad Module Re-enter the code to The device emits a If the procedure has been confirm. long confirmation successful the green beep. LED stays on for approxi- mately 1 second before switching off. During programming, some rules must be followed: - keys must be pressed consecutively (maximum 2 seconds between pressures);...
-
Page 16: Resident Code
This manual refers to the Sfera wired stand-alone Keypad Module or paired with the Sfera Speaker Module (351100/351200/351300). If the Sfera Keypad Module is installed linked to the Display Module (352500) refer to the Display manual for the code programming. - Page 17 Sfera Keypad Module Enter the resident Press the key. Press the key; code (4 to 9 digits). a short beep confirms the programming of the new resident code. Re-enter the code to confirm. Correct code: Wrong code: green LED on and short beep.
- Page 18 A short beep and the LEDs switching off indicate that the programming procedure has been ter- minated. The Sfera Keypad Module is now ready for normal operation. During programming, some rules must be followed: - keys must be pressed consecutively (maximum 2 seconds between pressures);...
-
Page 19: Deleting The Resident Code
Sfera Keypad Module 3.3.2 Deleting the resident code (only with Sfera Speaker Module 351100/351200/351300 and the associated Sfera Pushbutton Modules 352000/352100) Enter the master code. The device emits a beep, and the green LED starts flashing. The programming procedure starts. -
Page 20: Replacing The Resident Code
3 Configuration 3.3.3 Replacing the resident code The green LED flashes. Enter the resident Press the key until code. the green LED starts flashing Enter the new Press the key. Press the key; code. a short beep confirms the programming of the new resident code. - Page 21 Sfera Keypad Module Re-enter the code to The device emits a If the procedure has been confirm. long confirmation successful the green beep. LED stays on for approxi- mately 1 second before switching off. During programming, some rules must be followed: - keys must be pressed consecutively (maximum 2 seconds between pressures);...
-
Page 22: Advanced Configuration
Sfera Keypad Module to the PC using a USB-miniUSB cable. mini USB - USB When updating the software the device must be powered. The Sfera Keypad Module connected using a USB cable is recognised by the PC as a virtual port (VIR- TUAL COM). -
Page 23: Door Lock Control
Sfera Keypad Module Door lock control The TiSferaDesign software may be used to set the maximum number of digits to use when com- posing the code (4 to 9 digits). Entering the codes to open the door lock varies depending on the code length (if it is shorter than or the same as the maximum set) and the type of installation. -
Page 24: Reset
4 Advanced configuration Reset It is also possible to reset the Sfera Keypad Module and delete all the previously set codes; this will bring the module back to all the default settings. Disconnect the power Holding down the The red LED... -
Page 25: Appendix
3,5 A, 30 Vac cosφ = 0,4 Operating temperature (-25) – (+70) °C Technical After-Sales Service BTicino only accepts responsibility for perfect device operation if it is installed to the state of the art respecting the indications of the product installation manual. www.bticino.com... - Page 26 BTicino SpA Viale Borri, 231 21100 Varese - Italy www.bticino.com BTicino SpA reserves at any time the right to modify the contents of this booklet and to communicate in any form and modality, the changes brought to the same.
