SETUPS.
1
3

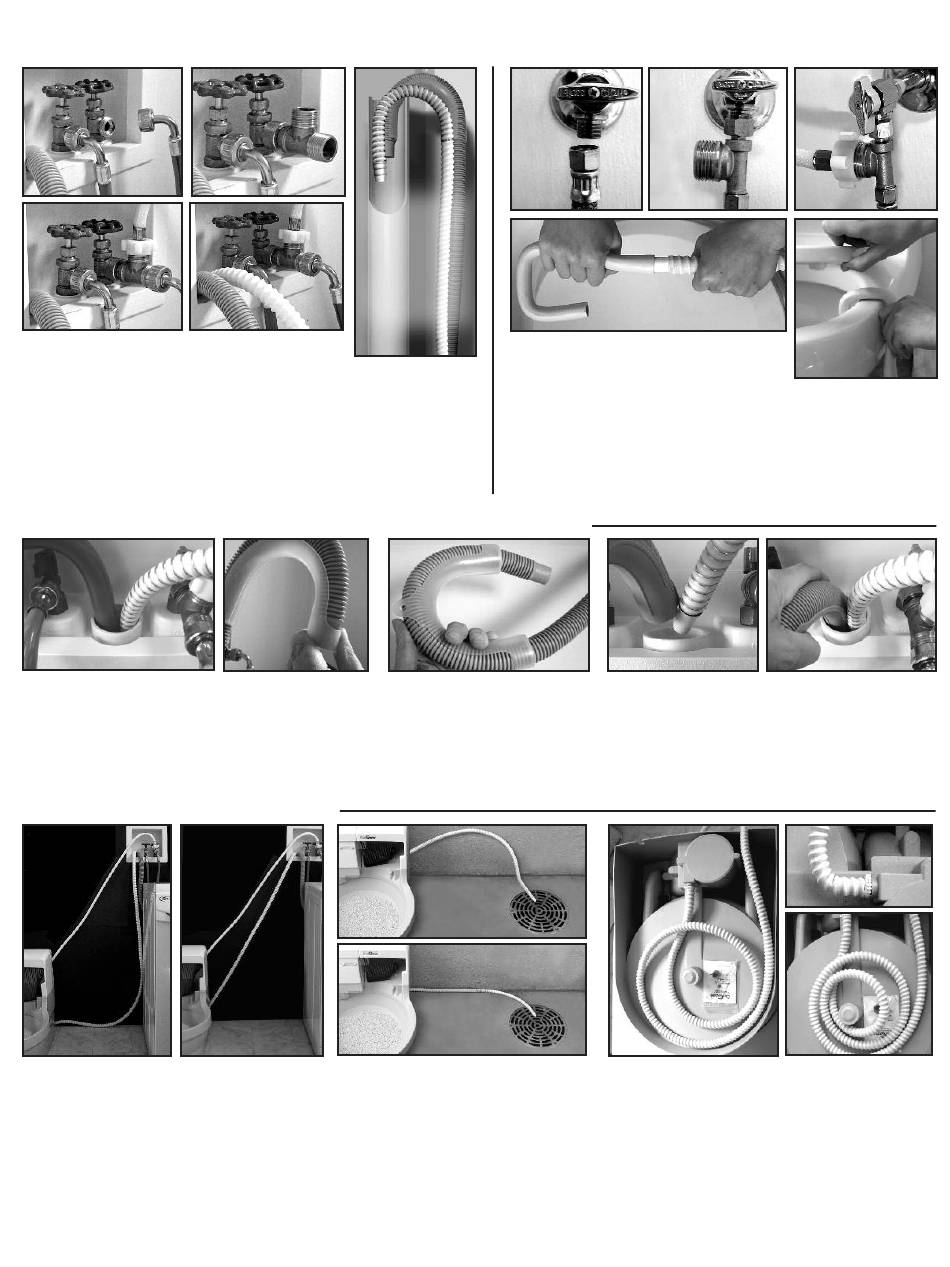

LAUNDRY or UTILITY ROOM
1. Turn off the laundry's cold-water supply valve. 2. Unscrew your washing
machine's cold-water supply hose from its valve. 3. Attach washer hose to
supplied 3/4" T-Adapter, then screw the Adapter onto the cold-water valve.
4. Screw the Genie Water Line onto the T-Adapter, then turn on cold water.
5. Put Genie DrainHose into Washer's waste pipe with Washer's drain hook.
Don't squeeze hoses. 6. Avoid clogs and overflow. Washer drain hose must
be less than 5" inside waste pipe. Plug power cord into a GFCI electric outlet.
FITTING TWO HOSES INTO ONE LAUNDRY DRAIN:
1
1. If the GenieHose and washer hose won't fit easily into
the drain, remove both hoses. Put the GenieHose in first,
then add the washer hose.
2. If the washer hose has a guard, hold the guard and
hose tightly together and push washer hose into the drain.
RIGHT & WRONG SETUPS:
YES NO
LAUNDRY DRAIN
YES. Do run Genie DrainHose along floor
for about 2', and then up to the laundry
drain pipe.
NO. Do not run the Genie DrainHose straight
up to the laundry drainpipe.
www.catGenie.com
See Simple Setup Guide for Complete Directions.
2 2
4 5
2
3. If the washer hose with its
guard still won't go into the drain,
move the washer guard up the
hose about 2 inches. Then put the
washer hose into the drain.
FLOOR DRAIN
YES. Do run DrainHose out and up
12" high, then down along floor to drain.
Level CatGenie if floor slopes to drain.
NO. Do not run DrainHose down on the
floor directly to the drain.
1
BATH or POWDER ROOM
1. Shut off cold-water line on toilet or sink and
unscrew water flex hose. 2. Attach the 3/8" T-Adapter to flex hose and
to cold-water line. 3. Screw the Genie Water Supply to the T-Adapter.
Turn cold water on. Check for leaks or drips. 4. For toilet use only,
connect the Genie Hook to the Genie DrainHose. Push until the white tip
on the Hose is all the way into the Hook. 5. Put the Genie DrainHook
over the toilet rim. Plug the Genie power cord into a GFCI electric outlet.
3
4. Another option is to put the hoses in together
with the GenieHose a little ahead of the edge of
the washer hose.
5. Push both hoses in until they are firmly
secured inside the drainpipe.
YES
NO
COILING the DRAIN HOSE
YES. Do make wide, unkinked coils if you need to
store the DrainHose under the Base. Run the hose
through the notches in the Base.
NO. Do not make tight coils or kinks in the Genie Hoses.
NO. Do not pinch or squeeze Hoses.
10
2 2
4
4
YES
3
5
5
NO
NO
1-888-735-3927
