ADDAC307 Assembly Guide
STEP 13:

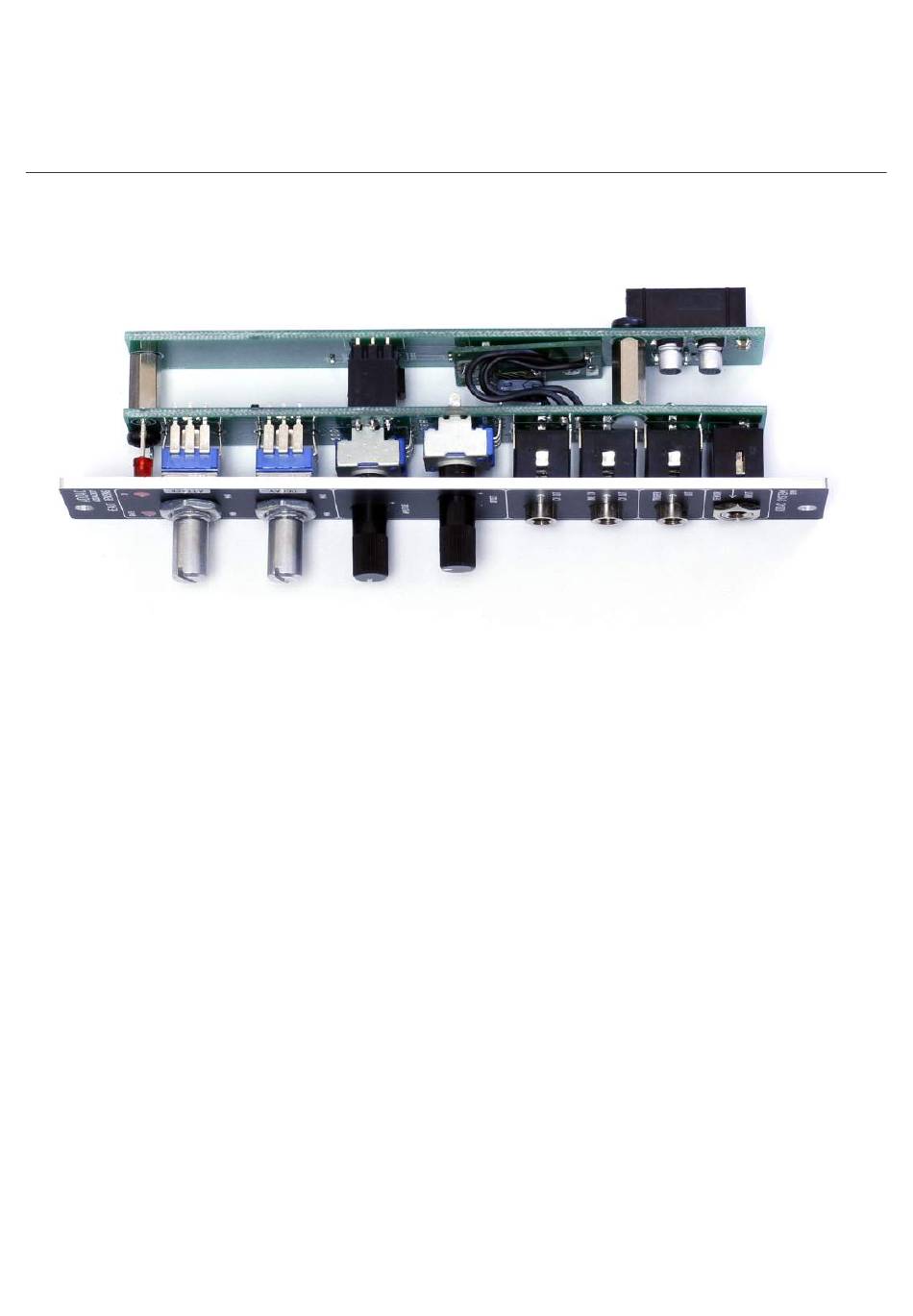

Last step, close the 2 pcbs together, place the bottom 2 screws and solder the 2x3 male header.
ADDAC SYSTEM
page 8
