ADDAC307 Assembly Guide
STEP 6:

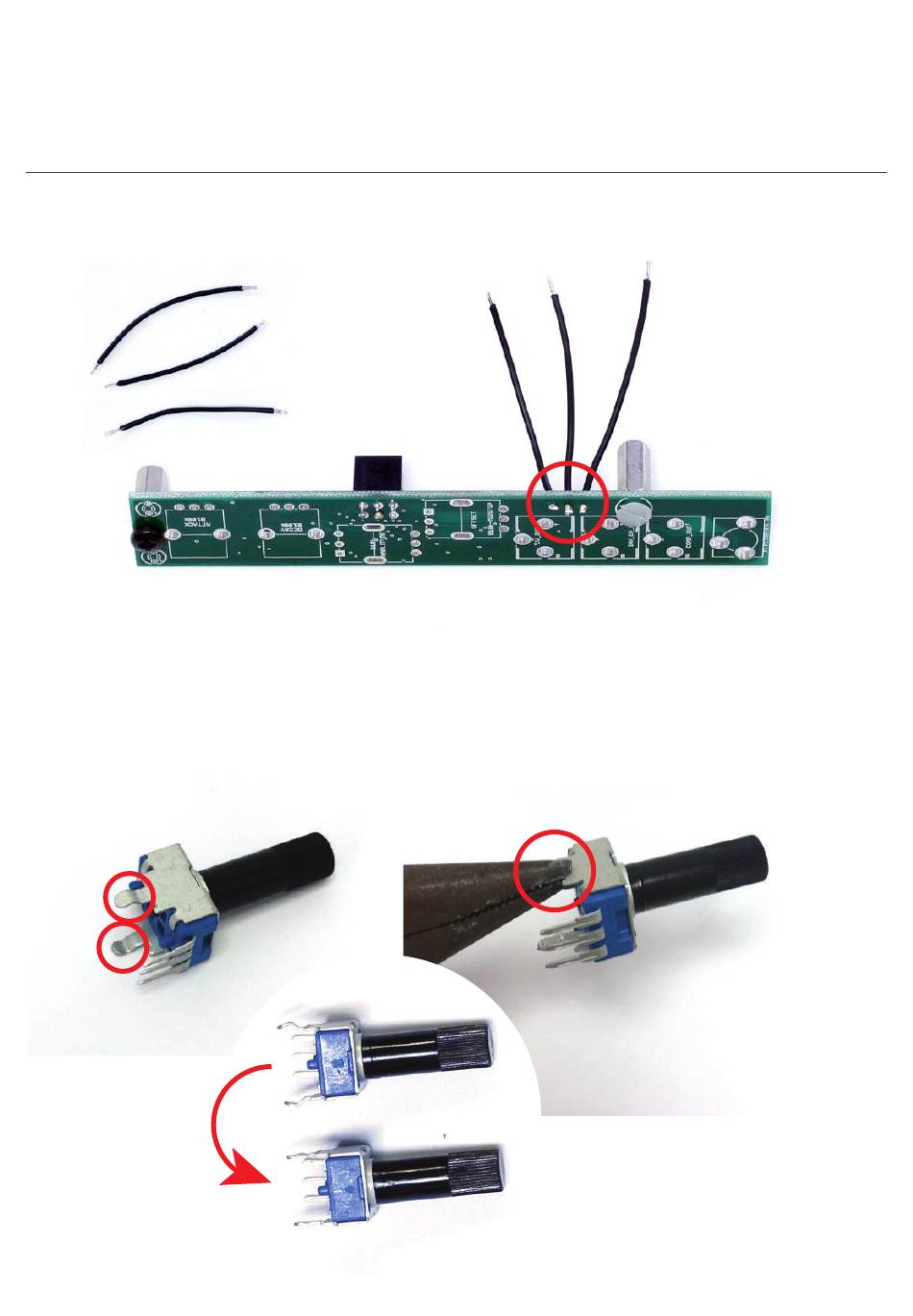

Pick the black wire, cut it into 3 pieces, strip it and pre tin the stripped tips.
Solder it to the 3 holes like shown below.
STEP 7:
Grab the the 2 trim pots and flatten out their legs with the help of some pliers, like shown below.
