ADDAC System ADDAC307 Heart Sensing Assembly Manual page 2

ADDAC307 Assembly Guide
May.2019

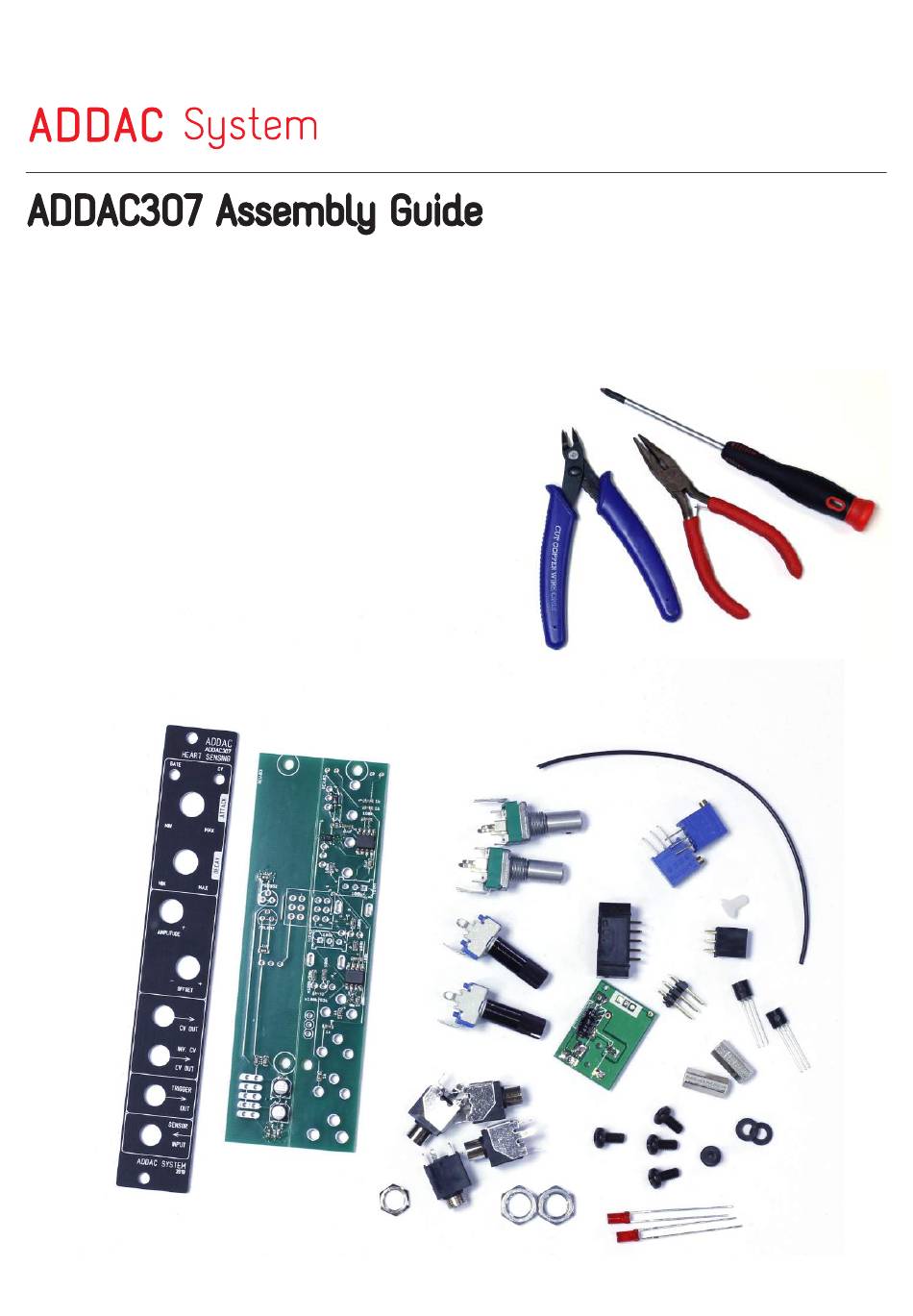

Parts included in the kit:
1x Front Panel
2x Pcbs (front and back)
1x Small Pcb
2x 12mm female/female spacer
2x M3 fiber washer
5x M3 screws
1x Plastic M3 screw
1x 2x3 pin male pinheader
1x 2x3 pin male pinheaders
2x B10k metal shaft potentiometers
1x B10k trimmer potentiometer
1x B10k trimmer potentiometer with Mid-Stop
3x Mono Jacks
1x Stereo Jack
2x Leds
1x 2x5 boxed power header
1x Ribbon connector
ADDAC SYSTEM
Tools Needed:
Wire cutter
Pliers
Philips key
page 2
