ADDAC307 Assembly Guide

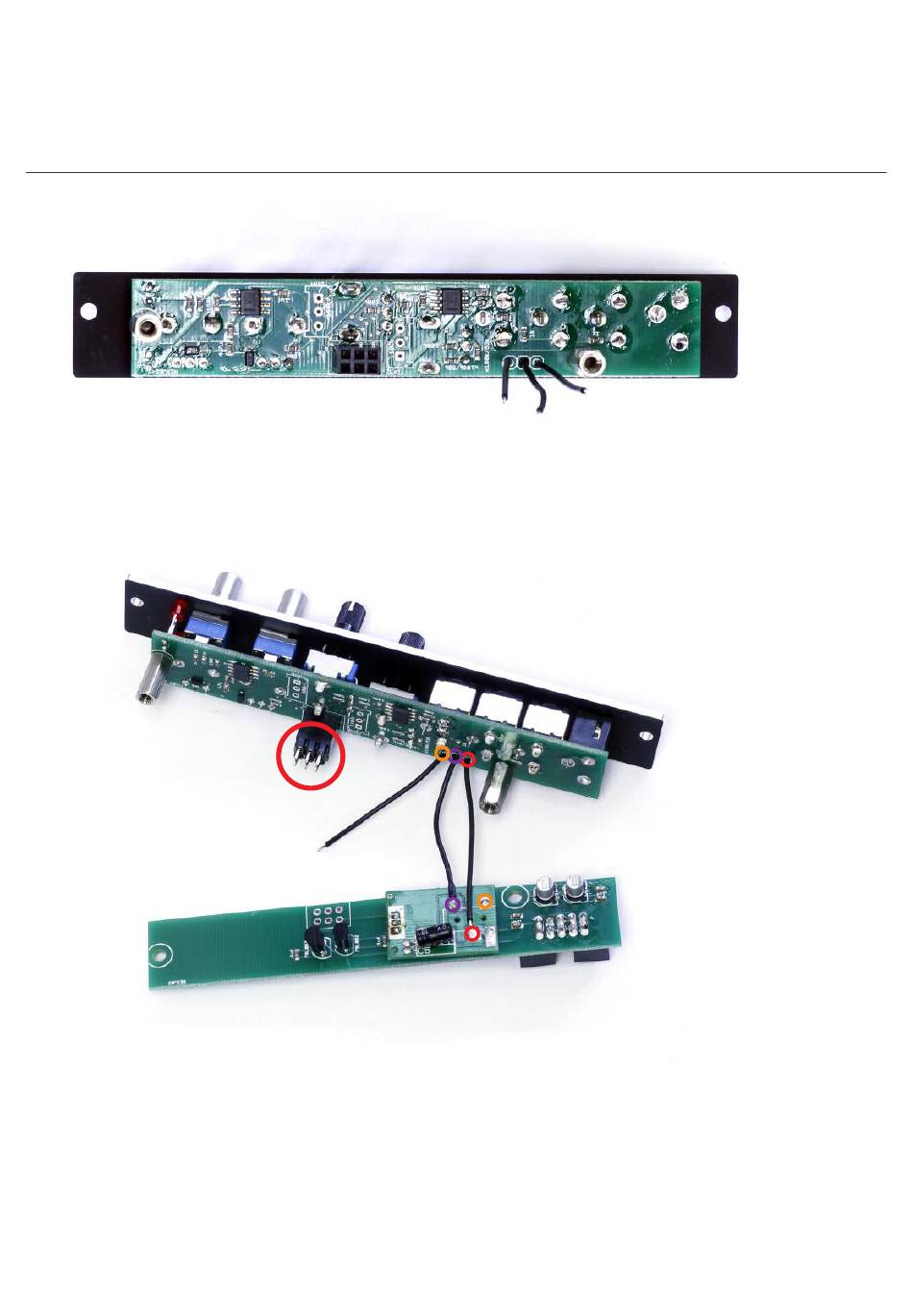

STEP 11:
Top view after all front panel parts are soldered.
STEP 12:
Next we'll connect both pcbs, follow the soldering of the 3 wires like shown below.
Also place the 2x3 male header into the female header.
ADDAC SYSTEM
page 7
