Paradox Digiplex EVO ZX8D Instructions

ZX8D-EI01
ZX8D
8-Zone Expansion Module V1.0
Instructions
PARADOX.COM
Printed in Canada - 11/2008

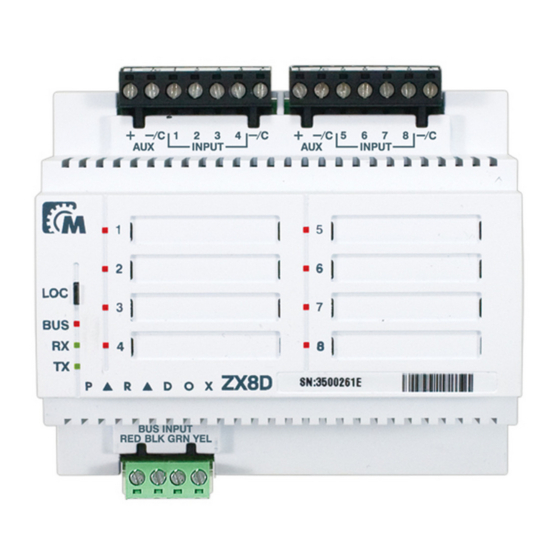

The ZX8D 8-zone Expansion Module connects to the
EVO control panel's Combus and acts as an interface
between the control panel and any hardwired
detection devices.
Compatibility
EVO48, EVO192
DGP-848, DGP-NE96, EVO96
Installation
Figure 1: DIN Rail Mounting
The ZX8D is a
standard 35mm
DIN rail module.
Using the supplied
DIN rail, the ZX8D
can be mounted in
any location.
Alternatively, it can
be mounted in a
Release
standard DIN rail
clip
enclosure. To
attach the module,
align the top of the DIN rail as shown in Figure 1 and
apply pressure to the module until it clicks into place.
To remove the ZX8D from a DIN rail, pull the release
clip and remove the module.
To facilitate installation and servicing, the ZX8D
terminals can be detached from the module. Wires can
be labeled using the supplied tie wraps.
NOTE: The ZX8D does not support ATZ zone
doubling.
Upgrading the Firmware
The ZX8D firmware can be upgraded through
WinLoad using the CV4USB RS-485/RS-232
Converter. Refer to the firmware upgrade instructions
found at: paradox.com - Software - WinLoad -
Firmware Upgrade Instructions
Zone LED Feedback
LED
off
red
red flash
35mm
DIN rail
Communication LED Feedback
RX
BUS
(from panel)
green green flash
red off
red off
red green
red flash off
red flash green flash
blue flash off
LOC Button
The ZX8D LOC button is used to enter Test Mode (see page 2).
A Module Locate can be performed using section [4002] (EVO) or [952] (DGP-48 /
DGP-848). To end a module locate, press and hold LOC for 2 seconds.
Status
Relay Module
zone closed
N.O. N.C. C
zone open
zone tamper
TX
Condition
(to panel)
green flash OK (panel communication in progress)
off Short on GRN or YEL
green Communication failure / Too many modules on bus
green Bus lines reversed (GRN / YEL)
off Bus power too low
green flash Locate mode
off Firmware upgrade in progress
External Module
Tamper Switch
(N.C.)
_
+
Detachable
Terminals
Pry with
screwdriver if
necessary.
Zone Labels
Space is provided to
label each zone.
