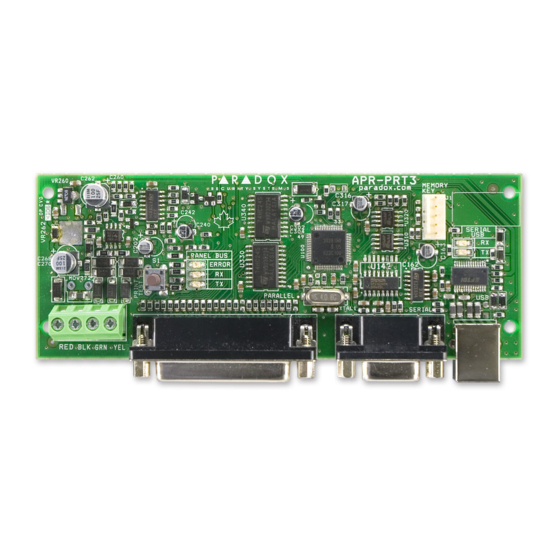

PRT3 Printer Module:
C-Bus Programming Instructions
We hope this product performs to your complete satisfaction. Should you have any
questions or comments, please visit www.paradox.com and send us your comments.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGIPLEX EVO PRT3 and is the answer not in the manual?

Questions and answers

Related Manuals for Paradox DIGIPLEX EVO PRT3

Summary of Contents for Paradox DIGIPLEX EVO PRT3

  • Page 1 PRT3 Printer Module: C-Bus Programming Instructions We hope this product performs to your complete satisfaction. Should you have any questions or comments, please visit www.paradox.com and send us your comments.

  • Page 2: Table Of Contents

    Table of Contents Technical Specifications ..............................1 Panel Specifications ..............................1 Installation ..................................2 Overview ..................................2 Programming Sections ..............................3 Serial Port Setup ................................3 Virtual PGM Programming ............................. 4 C-Bus Entry Options ..............................8 Virtual Input Options ..............................14 PGM Activation Event ..............................

  • Page 3: Installation

    Introduction The PRT3 Printer Module can be used as an interface between C-Bus and your Digiplex system. When in home automation mode, the Printer Module can receive and send commands to and from the C-Bus PC interface and the Digiplex control panel, linking your building automation capabilities with your security system.

  • Page 4: Programming Sections

    This option allows you to select the home automation protocol for the Printer Module. Set option [5] to ON and option [6] to OFF to select the Clipsal C-Bus Protocol. For more information on the ASCII Protocol, see the ASCII Protocol Programming Instructions on our website at paradox.com.

  • Page 5: Virtual Pgm Programming

    Sections [070] to [072] C-Bus Applications These sections allow you to enable which C-Bus application(s) the Printer Module can use to send and receive commands. Note that the Printer Module supports communication with the following three C-Bus applications: Section Application Hexadecimal Value [070] __ /__...
  • Page 6 Section [100] - Options [1] and [2] Virtual PGM Deactivation Option When the Virtual PGM Activation Event occurs (see “Virtual PGM Activation Event” on page 7), this option determines when the virtual PGM will return to its normal state (deactivate). Depending on the programmed value, the virtual PGM can stay activated indefinitely.
  • Page 7 [161] __/__/__ (000 to 255) x Base time [311] __/__/__ (000 to 255) x Base time [171] __/__/__ (000 to 255) x Base time [321] __/__/__ (000 to 255) x Base time [181] __/__/__ (000 to 255) x Base time [331] __/__/__ (000 to 255) x Base time [191]...
  • Page 8 Sections [102] to [105] Virtual PGM Activation Event The Virtual PGM Activation Event determines which event will activate the Printer Module’s virtual PGM output(s). The Event Group specifies the event, the Feature Group identifies the source, and the Start # and End # set the range within the Feature Group. Note that Event Groups [064] to [067] may be selected when programming virtual PGMs (see “Appendix 1: Programming PGMs”...

  • Page 9: C-Bus Entry Options

    Virtual PGM8 [176] __/__/__ [177] __/__/__ [178] __/__/__ [179] __/__/__ [186] __/__/__ [187] __/__/__ [188] __/__/__ [189] __/__/__ Virtual PGM9 [196] __/__/__ [197] __/__/__ [198] __/__/__ [199] __/__/__ Virtual PGM10 [206] __/__/__ [207] __/__/__ [208] __/__/__ [209] __/__/__ Virtual PGM11 Virtual PGM12 [216] __/__/__...
  • Page 10 [404] __/__/__ (000 to 255) ON Ramp Final Level 000* OFF Group Address [405] __/__/__ (000 to 255) Variable [406] __/__/__ (000 to 015) OFF Ramp Period 000* [407] __/__/__ (000 to 255) OFF Ramp Final Level 000* *Not used with air-conditioning (values ignored if selected) Refer to the table below for a list of the programming sections for all virtual PGMs.
  • Page 11 = default setting Section C-Bus Entry [2] OFF / [3] OFF [2] ON / [3] OFF [2] OFF / [3] ON [2] ON / [3] ON* [400] none ramp [410] none ramp [420] none ramp [430] none ramp [440] none ramp [450] none...
  • Page 12 [520] none ramp [530] none ramp [540] none ramp [550] none ramp [560] none ramp [570] none ramp [580] none ramp [590] none ramp [600] none ramp [610] none ramp [620] none ramp [630] none ramp [640] none ramp [650] none ramp [660]...
  • Page 13 [442] [592] [452] [602] [462] [612] [472] [622] [482] [632] [492] [642] [502] [652] [512] [662] [522] [672] [532] [682] [542] [692] Section [403]* ON Ramp Period *Not used with air conditioning The ON Ramp Period section allows you to assign a ramp time value when an ON Ramp command has been set (see “ON Commands” on page 9).
  • Page 14 [444] [594] [454] [604] [464] [614] [474] [624] [484] [634] [494] [644] [504] [654] [514] [664] [524] [674] [534] [684] [544] [694] Section [405] OFF Group Address Variable The OFF Group Address Variable section allows you to assign which C-Bus group will receive the programmed OFF command (see “OFF Commands”...

  • Page 15: Virtual Input Options

    [526] [676] [536] [686] [546] [696] Section [407]* OFF Ramp Final Level * Not used with air conditioning The OFF Ramp Final Level section allows you to assign a final level of light intensity when an OFF Ramp command has been set (see “OFF Commands”...
  • Page 16 Virtual Input 1 Open [702] __/__/__ (000 to 255) Group Address Variable Virtual Input 1 Open [703] __/__/__ (000 to 002) 000* Command Virtual Input 1 Close [704] __/__/__ (000 to 255) Group Address Variable Virtual Input 1 Close [705] __/__/__ (000 to 002) 000* Command...
  • Page 17 Section [700] - Options [3] and [4] Virtual Input Close Option The virtual input can be closed by either receiving a virtual input close command, after a timer elapses or either. This option determines how the virtual input will close. = default setting Section Virtual Input...
  • Page 18 [730] seconds minutes [810] seconds minutes [740] seconds minutes [820] seconds minutes [750] seconds minutes [830] seconds minutes [760] seconds minutes [840] seconds minutes [770] seconds minutes [850] seconds minutes Section [702] Virtual Input Open Group Address Variable The Virtual Input Open Group Address Variable section allows you to set which C-Bus group will cause a virtual input on the Printer Module to open.
  • Page 19 Section [704] Virtual Input Close Group Address Variable The Virtual Input Open Group Address Variable section allows you to set which C-Bus group will cause a virtual input on the Printer Module to close. Enter 000-255 to assign which group address variable will trigger a virtual input to close. For further information on Group Address Variables, refer to the appropriate C-Bus documentation.
  • Page 20 Section [900] Security Report Security reports are messages sent between the PRT3 and the C-Bus. Messages that are received by the C-Bus can be used to trigger automated events. Section Data Description Default [900] __/__/__ (001 to 008)† Area affected by security application Section 901 Report Options Global Security report*...
  • Page 21 Figure 2: .PRT3 Connection Remove AC power and battery before adding a module to the system. Refer to the panel’s Reference and Installation Manual for the maximum allowable installation distance from the control panel. Printer cable length must not exceed 25ft. For information on using the printer Module as an interface with home automation modules, see the ASCII Protocol programming instructions or C-BUS Programming instructions.

  • Page 22: Pgm Activation Event

    Appendix 1: Programming PGM A PGM is a programmable output that toggles to its opposite state (i.e. a normally open PGM will close) when a specific event occurs in the system. For example, a PGM can be used to reset smoke detectors, activate strobe lights, open/close garage doors and much more. PGM Activation Event The PGM Activation Event determines which event from what source will activate the PGM.
  • Page 23 Event Event Feature Group Feature Start # End # Group TLM Trouble (see NOTE 3 on page 27) Smoke detector reset Arm with no entry delay Arm in Stay mode Arm in Away mode Full arm when in Stay mode Voice module access Remote control access Non-reportable Event...
  • Page 24 Event Event Feature Group Feature Start # End # Group User Codes 001 to 255 001 to 255 001 to 255 User Codes 256 to 511 000 to 255 000 to 255 Disarm with Master User Codes 512 to 767 000 to 255 000 to 255 User Codes 768 to 999...
  • Page 25 Event Event Feature Group Feature Start # End # Group Zone Numbers 001 to 192 001 to 192 Fire Alarm Restore Any zone number Not Used Not Used User Codes 001 to 255 001 to 255 001 to 255 User Codes 256 to 511 000 to 255 000 to 255 Early to Disarm by User...
  • Page 26 Event Event Feature Group Feature Start # End # Group Combus Fault Module Tamper ROM/RAM error TLM Trouble Fail to Communicate Module Trouble Printer Fault AC Failure Battery Failure Auxiliary Failure Any module trouble Not Used Not Used Combus Fault Module Tamper ROM/RAM error TLM Trouble...
  • Page 27 Event Event Feature Group Feature Start # End # Group Door Numbers 001 to 032 001 to 032 Request for Exit Any door number Not Used Not Used Door Numbers 001 to 032 001 to 032 Access Denied Any door number Not Used Not Used Door Numbers...
  • Page 28 Event Event Feature Group Feature Start # End # Group Intellizone Delay Engaged (see Note 4 on page 27) Fire Delay Engaged Auto Arm Arming with Voice Module (set See Note 1 Status 3 until Exit Delay finishes) on page 27 Tamper Zone Low Battery Fire Loop Trouble...
  • Page 29 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded. Because Seller does not install or connect the products and because the products may be used in conjunction with products not manufactured by Seller, Seller cannot guarantee the performance of the security system and shall not be responsible for circumstances resulting from the product’s inability to operate.
  • Page 30 For technical support in Canada or the U.S., call 1-800-791-1919, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.com. Printed in Canada 09/2009 PARADOX.COM...
