PRT3 Printer Module:
ASCII Protocol Programming Instructions
We hope this product performs to your complete satisfaction. Should you have any
questions or comments, please visit www.paradox.com and send us your comments.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digiplex EVO PRT3 and is the answer not in the manual?

Questions and answers

Related Manuals for Paradox Digiplex EVO PRT3

Summary of Contents for Paradox Digiplex EVO PRT3

  • Page 1 PRT3 Printer Module: ASCII Protocol Programming Instructions We hope this product performs to your complete satisfaction. Should you have any questions or comments, please visit www.paradox.com and send us your comments.

  • Page 2: Table Of Contents

    Table of Contents Technical Specifications ..........1 Request Area Label ..........14 Panel Specifications ..........1 Request User Label ..........14 Installation ..............3 Area Arm ..............14 Overview ..............3 Area Quick Arm ............14 Programming Sections ..........3 Area Disarm .............
  • Page 3 Introduction The PRT3 Printer Module can be used as an interface between a home automation module and your Digiplex system. When in home automation mode, the Printer Module can receive and send commands to and from the home automation module and the Digiplex control panel, linking your home automation capabilities with your security system.

  • Page 4: Installation

    Installation The Printer Module is connected to the control panel’s combus. Connect the four terminals labeled red, black, green, and yellow of the module to the corresponding terminals on the control panel as shown in Figure 2 on page 22. See the EVO or DGP-848 Reference & Installation Manual for the maximum allowable installation distance from the control panel.

  • Page 5: Serial Port Setup

    ASCII Protocol, set options [5] and [6] to OFF . = default setting For more information on the Clipsal C-Bus Protocol, see the C-Bus Programming Instructions on our website at paradox.com. Virtual Input Programming The home automation module can be programmed to open/close the Printer Module’s virtual inputs and generate activity within the Digiplex system.
  • Page 6 Section Data Description Default [701] __/__/__ (000 to 255) x Base Time Virtual Input 1 Timer Refer to the table below for a list of the programming sections for all virtual inputs. Virtual Virtual Virtual Virtual Section Section Section Section Input Input Input...
  • Page 7 [790] close command virtual input timer close command or virtual input timer [800] close command virtual input timer close command or virtual input timer [810] close command virtual input timer close command or virtual input timer [820] close command virtual input timer close command or virtual input timer [830] close command...

  • Page 8: Virtual Pgm Programming

    Virtual PGM Programming The Printer Module supports up to 30 virtual PGMs which are not related to any physical output on the module, but operate in the same manner and are programmed in the same way as traditional PGMs. The tables below offer an example of the virtual PGM programming sections which must be set for virtual PGM 1.
  • Page 9 = default setting Virtual Section [1] OFF / [2] OFF [1] ON / [2] OFF [1] OFF / [2] ON [1] ON / [2] ON [100] no deactivation deactivation event virtual PGM timer deactivation event or virtual PGM timer [110] no deactivation deactivation event virtual PGM timer...
  • Page 10 [201] __/__/__ (000 to 255) x Base time [351] __/__/__ (000 to 255) x Base time [211] __/__/__ (000 to 255) x Base time [361] __/__/__ (000 to 255) x Base time [221] __/__/__ (000 to 255) x Base time [371] __/__/__ (000 to 255) x Base time [231]...
  • Page 11 Sections [102] to [105] Virtual PGM Activation Event The Virtual PGM Activation Event determines which event will activate the Printer Module’s virtual PGM output(s). The Event Group specifies the event, the Feature Group identifies the source, and the Start # and End # set the range within the Feature Group. Note that Event Groups [064] to [067] may be selected when programming virtual PGMs (see “Appendix 1: Programming PGMs”...
  • Page 12 Sections [106] to [109] Virtual PGM Deactivation Event If the Virtual PGM Deactivation Option is set to follow the Virtual PGM Deactivation Event (see “Virtual PGM Deactivation Option” on page 7), the virtual PGM will return to its normal state when the event programmed occurs (see table below). The Event Group specifies the event, the Feature Group identifies the source, and the Start # and End # set the range within the Feature Group.

  • Page 13: Ascii Protocol

    ASCII Protocol The ASCII Protocol is a serial communication protocol which allows your home automation module to communicate with the Digiplex control panel through the PRT3 Printer Module. The home automation module must be programmed with the ASCII Protocol in order for successful communication to occur.

  • Page 14: Request Area Status

    Request Area Status The following commands request the area status. For the panel’s maximum number of areas, refer to “Panel Specifications” on page 1. Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 <cr> Request Area Status 01 <cr>...

  • Page 15: Request Area Label

    Request Area Label The following commands request the area label. For the panel’s maximum number of areas, refer to “Panel Specifications” on page 1. Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 <cr> Request Area Label 01 <cr>...

  • Page 16: Area Disarm

    A (Regular arm) Quick Arm Area 02 F (Force arm) <cr> S (stay arm) I (Instant arm A (Regular arm) Quick Arm Area 08 F (Force arm) <cr> S (stay arm) I (Instant arm The One-Touch feature must be enabled in the Digiplex control panel to use this feature. See the appropriate Digiplex control panel’s Reference and Installation Manual for more information.

  • Page 17: Fire Panic

    Fire Panic The following commands are used for fire panic alarms in up to eight areas. For the panel’s maximum number of areas, refer to “Panel Specifications” on page 1. Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Panic 3 - Fire Area 01 <cr>...

  • Page 18: System Events

    System Events All Digiplex system events are sent through the Printer Module to the home automation module using the following format. Byte 1 Bytes 2-4 Byte 5 Bytes 6-8 Byte 9 Bytes 10-12 xxx* yyy** zzz*** System Event * xxx represents the 3-digit event group (G). ** yyy represents the 3-digit event number (N).
  • Page 19 Event Event Group Description Event Number (N) Event Number Description Area Number (A) Group (G) Auto Arming Arming by WinLoad Late to Close No Movement Arming Special Arming Partial Arming 001-008 One-touch Arming Future Use Future Use (InTouch) Voice Module Arming Disarm with Master 001-999 User Codes...
  • Page 20 Event Event Group Description Event Number (N) Event Number Description Area Number (A) Group (G) Zone Tamper Restore 001-192 Zone Numbers 001-008 Special Tamper Keypad Lockout 001-008 TLM Trouble AC Failure Battery Failure Auxiliary Current Limit Trouble Event 000-008 Bell Current Limit Bell Absent Clock Trouble Global Fire Loop...
  • Page 21 Event Event Group Description Event Number (N) Event Number Description Area Number (A) Group (G) Power up after total power down Software reset (Watchdog) Test Report Future Use Special Events 000-008 WinLoad In (connected) WinLoad Out (disconnected) Installer in programming Installer out of programming Early to Arm by User 001-999...
  • Page 22 Event Event Group Description Event Number (N) Event Number Description Area Number (A) Group (G) Intellizone Delay Engaged** Fire Delay Engaged Auto Arm Arming with Voice Module (set See Note 1 until Exit Delay finishes) Status 3 on page 21 Tamper Zone Low Battery Fire Loop Trouble...

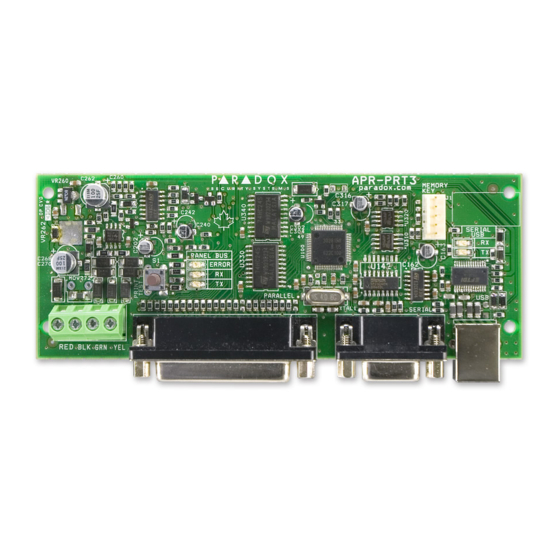

  • Page 23 Figure 2: .PRT3 Connection 1) Green “RX” LED: Flashes when the Printer Module is receiving data through the serial port only. 2) Red “TX” LED: Flashes when the Printer Module is transmitting data through the serial port only. 3) 25-Pin Parallel Port: Connect the Printer Module’s 25-pin parallel port to any dot matrix printer. Note: The dot matrix printer must support a minimum of 80 columns.

  • Page 24: Pgm Activation Event

    Appendix 1: Programming PGM A PGM is a programmable output that toggles to its opposite state (i.e. a normally open PGM will close) when a specific event occurs in the system. For example, a PGM can be used to reset smoke detectors, activate strobe lights, open/close garage doors and much more. PGM Activation Event The PGM Activation Event determines which event from which source will activate the PGM.
  • Page 25 Event Event Feature Group Feature Start # End # Group Zone Numbers 001 to 192 001 to 192 Zone is in Fire Loop Trouble Any zone number Not Used Not Used TLM Trouble (see NOTE 3 on page 29) Smoke detector reset Arm with no entry delay Arm in Stay mode Arm in Away mode...
  • Page 26 Event Event Feature Group Feature Start # End # Group Auto Arming Arming by WinLoad Late to Close No Movement Arming Partial Arming Special Arming One-touch Arming Future Use Future Use (InTouch) Voice Module Arming Any special arming event Not Used Not Used User Codes 001 to 255 001 to 255...
  • Page 27 Event Event Feature Group Feature Start # End # Group Auto Arm Cancelled One-touch Stay/Instant Disarm Disarming with WinLoad Disarming with WinLoad after alarm WinLoad cancelled alarm Special Disarm Events Future Use Future Use Future Use (InTouch) Voice Module Disarming Any special disarm event Not Used Not Used...
  • Page 28 Event Event Feature Group Feature Start # End # Group TLM Trouble (see NOTE 2 on page 29) AC Failure Battery Failure Auxiliary Current Limit Trouble Event Bell Current Limit Bell Absent Clock Trouble Global Fire Loop Any trouble event Not Used Not Used TLM Trouble...
  • Page 29 Event Event Feature Group Feature Start # End # Group Power up after total power down Software reset (Watchdog) Test Report Future Use Special Events WinLoad In (connected) WinLoad Out (disconnected) Installer in programming Installer out of programming Any special event Not Used Not Used User Codes 001 to 255...
  • Page 30 Event Event Feature Group Feature Start # End # Group User Codes 001 to 255 001 to 255 001 to 255 User Codes 256 to 511 000 to 255 000 to 255 Access Denied to User User Codes 512 to 767 000 to 255 000 to 255 User Codes 768 to 999...
  • Page 31 Warranty Paradox Security Systems Ltd. (“Seller”) warrants its products to be free from defects in materials and workmanship under normal use for a period of one year. Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded. Because Seller does not install or connect the products and because the products may be used in conjunction with products not manufactured by Seller, Seller cannot guarantee the performance of the security system and shall not be responsible for circumstances resulting from the product’s inability to operate.
  • Page 32 For technical support in Canada or the U.S., call 1-800-791-1919, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. For technical support outside Canada and the U.S., call 00-1-450-491-7444, Monday to Friday from 8:00 a.m. to 8:00 p.m. EST. Please feel free to visit our website at www.paradox.com. Printed in Canada 10/2009 PARADOX.COM...
