4 Installation
4.4 ÄKTAprocess Setup
4.4.1 Assembly of ÄKTAprocess
All connections to and from the monitor and the keyboard (DVI signal, USB connection
and power) are included in one multi-conductor cable (ODU minisnap 24-pin connector).
One ODU minisnap 3-pin connector is used for the power supply.
These two cables are attached to the system, and are located underneath the electrical
cabinet.
The operator console can be mounted on either the left or right system handle. A rotation
stop is fitted to prevent the console from colliding with the system cabinet. Instructions
for mounting the console are given below.
Mount operator console on left side
Follow the instruction below to mount the operator console on the left side.
Step
1
2
3
90
Action
Open the box and remove the assembled console. Do not remove the
polystyrene foam protection, this can be used for lifting.

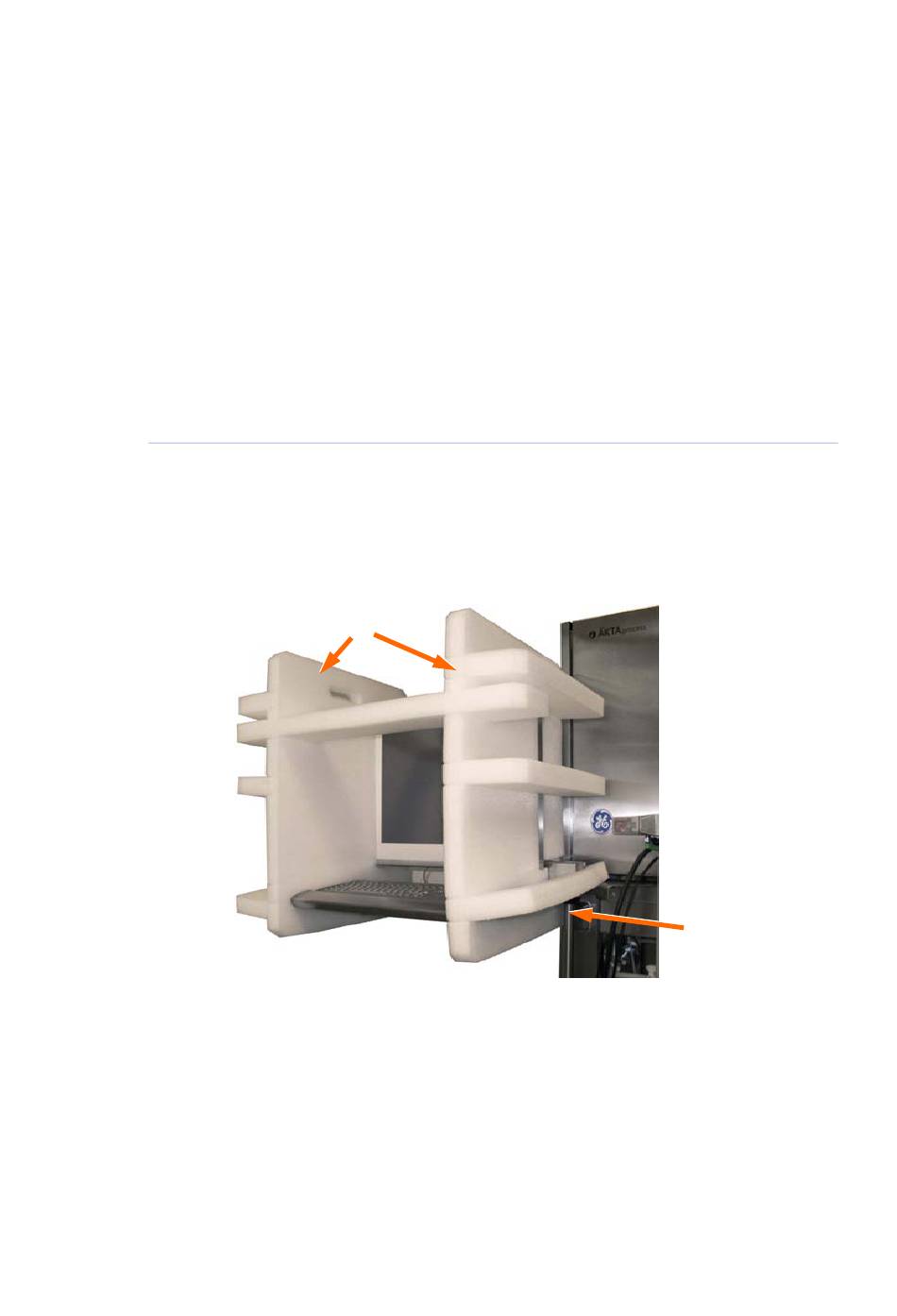

Carefully slide the console arm over the left system handle (B) until it is
firmly attached. Keep the polystyrene foam protection (A) in place when at-
taching the console arm.
A
Remove the polystyrene foam protection.
ÄKTAprocess Operating Instructions 29-0252-49 AA
B
