Bticino SFERA NEW Quick Start Manual

SFERA NEW - SFERA ROBUR

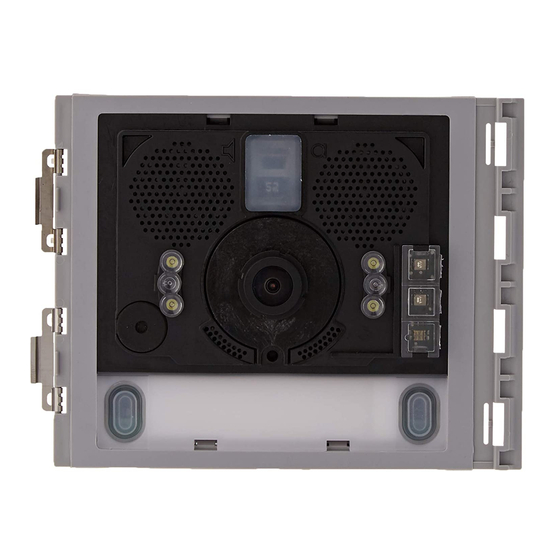

Wide angle audio and video module
Description
Wide angle audio/video module for the installation of 2 WIRE colour video systems.
With Colour camera with 1/3" sensor and white LEDs for the lighting of the shooting
field. Mist prevention heating resistance. Loudspeaker and Microphone volume
adjustments. It can manage up to 98 pushbutton calls using the additional double
row pushbutton modules. It offers the possibility of opening an electrical door lock
directly connected to clamps S+ and S- (18 V 4 A impulsive - 250 mA holding current
30 Ohm max) and of connecting a local door lock release pushbutton on clamps PL.
Preset for additional power supply. Fitted with front LEDs for the notification of the
operating status: door lock release, communication active, call put through, and
system busy. Integrated optic sensor for the switching on of the night backlighting.
To be completed with surround plate. The device must be configured physically or
using a PC with the specific software, which can be downloaded free of charge from
www.homesystems-legrandgroup.com; this mode has the advantage of offering
many more options when compared with the physical configuration.
Related items
351301 Sfera New wide angle A/V front cover - Allmetal (IK 08)
351302 Sfera New wide angle A/V front cover - Allwhite (IK 08)
351303 Sfera New wide angle A/V front cover - Allstreet (IK 08)
351311 Sfera New wide angle A/V front cover with 1 pushbutton - Allmetal (IK 08)
351312 Sfera New wide angle A/V front cover with 1 pushbutton - Allwhite (IK 08)
351313 Sfera New wide angle A/V front cover with 1 pushbutton - Allstreet (IK 08)
351321 Sfera New wide angle A/V f/cover with 2 pushbuttons on double row - Allmetal (IK 08)
351322 Sfera New wide angle A/V f/cover with 2 pushbuttons on double row - Allwhite (IK 08)
351323 Sfera New wide angle A/V f/cover with 2 pushbuttons on double row - Allstreet (IK 08)
351305 Sfera Robur wide angle A/V f/cover (IK 10)
351315 Sfera Robur wide angle A/V f/cover with 1 pushbutton (IK 10)
351325 Sfera Robur wide angle A/V f/cover with 2 pushbuttons on double row (IK 10)

Technical data

Power supply from SCS BUS:
Stand by absorption (with backlighting LEDs off):
Stand by absorption (with backlighting LEDs on):
Max. operating absorption:
Colour sensor:
Lens:
Resolution:
Illumination of the viewing field:
Brightness adjustment:
Interlace:
Mist prevention heating resistance
Operating temperature:
Protection index (pushbutton panel assembled):

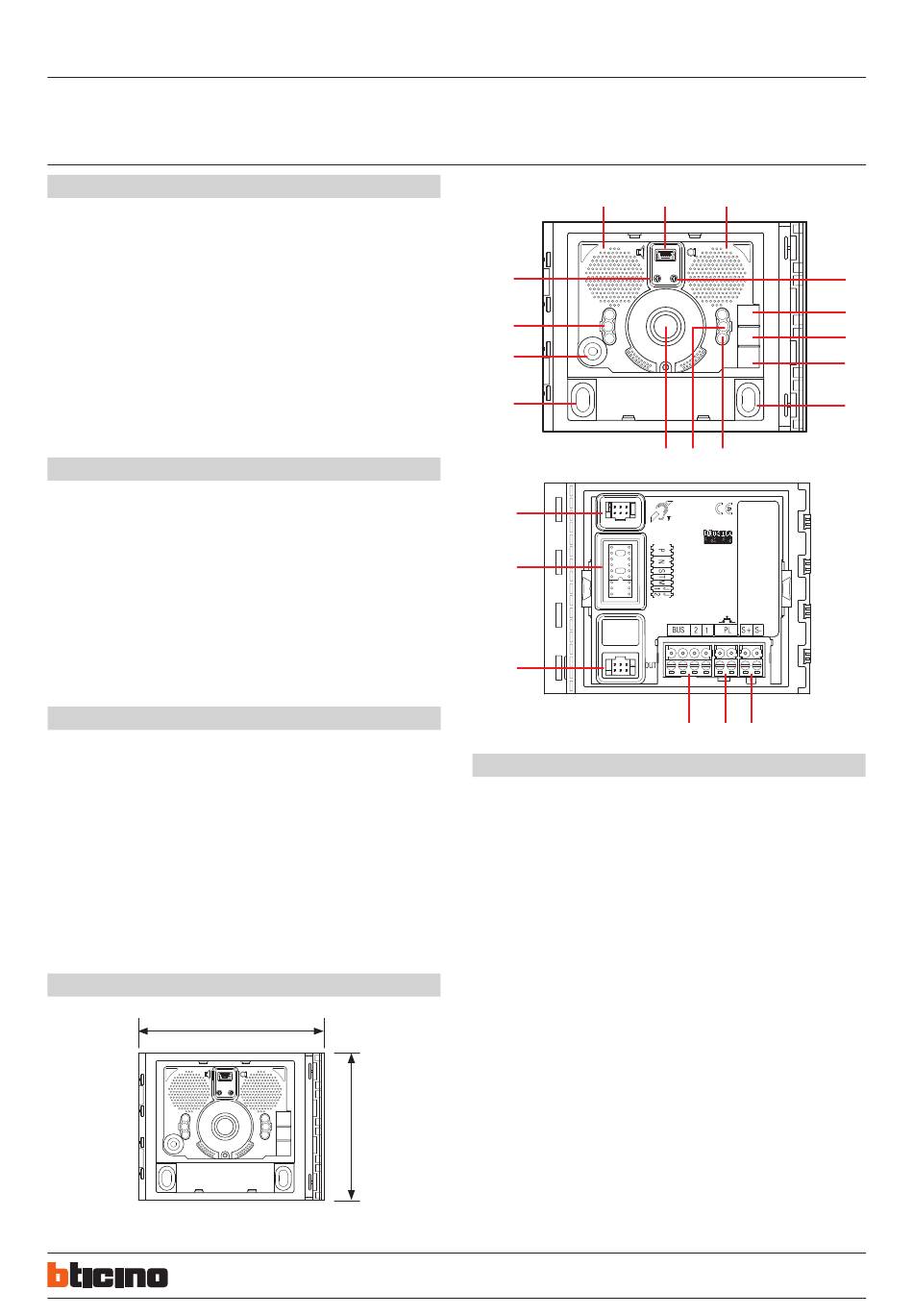

Dimensional data

115 mm
Front view
12
11
Rear view
13
18
17
18 - 27 Vdc
15 mA
Legend
20 mA
1. Loudspeaker
140 mA
2. Mini-USB connector for the connection to the PC : download/upload the advanced
1/3"
configuration and device firmware update
F2.5 f1.8 mm
3. Microphone volume adjustment
330 TV lines (horizontal)
white LED 4. LED for door status notification. GREEN ON = door open
Automatic
5. LED for communication status notification. GREEN ON = active communication
2 : 1
6. LED for system status notification. GREEN ON = put through call
(-25) - (+70)°C
7. Call pushbuttons
IP 54
8. White LEDs for night lighting of the shooting field
9. Light sensor for automatic switching on of the night backlighting
10. Wide angle colour camera
11. Microphone
12. Loudspeaker volume adjustment
13. Connector for the connection of the 352700 teleloop module
14. Plug-in clamps for the connection and control of the electrical door lock
(18 V 4 A impulsive 250 mA holding current 30 ohm max)
15. Plug-in clamps for the connection of the local door lock release pushbutton
91 mm
16. Plug-in clamps for the connection of the local power supply and the 2 WIRE SCS BUS
17. Connector for the connection to subsequent modules
18. Configurator socket
BT00598-c- EN 15/05/2017
2 WIRE Video Door Entry system
1 2
8
7
10
RED ON= busy system
351300
1
9 8
16 15 14
3
4
5
6
7
1
