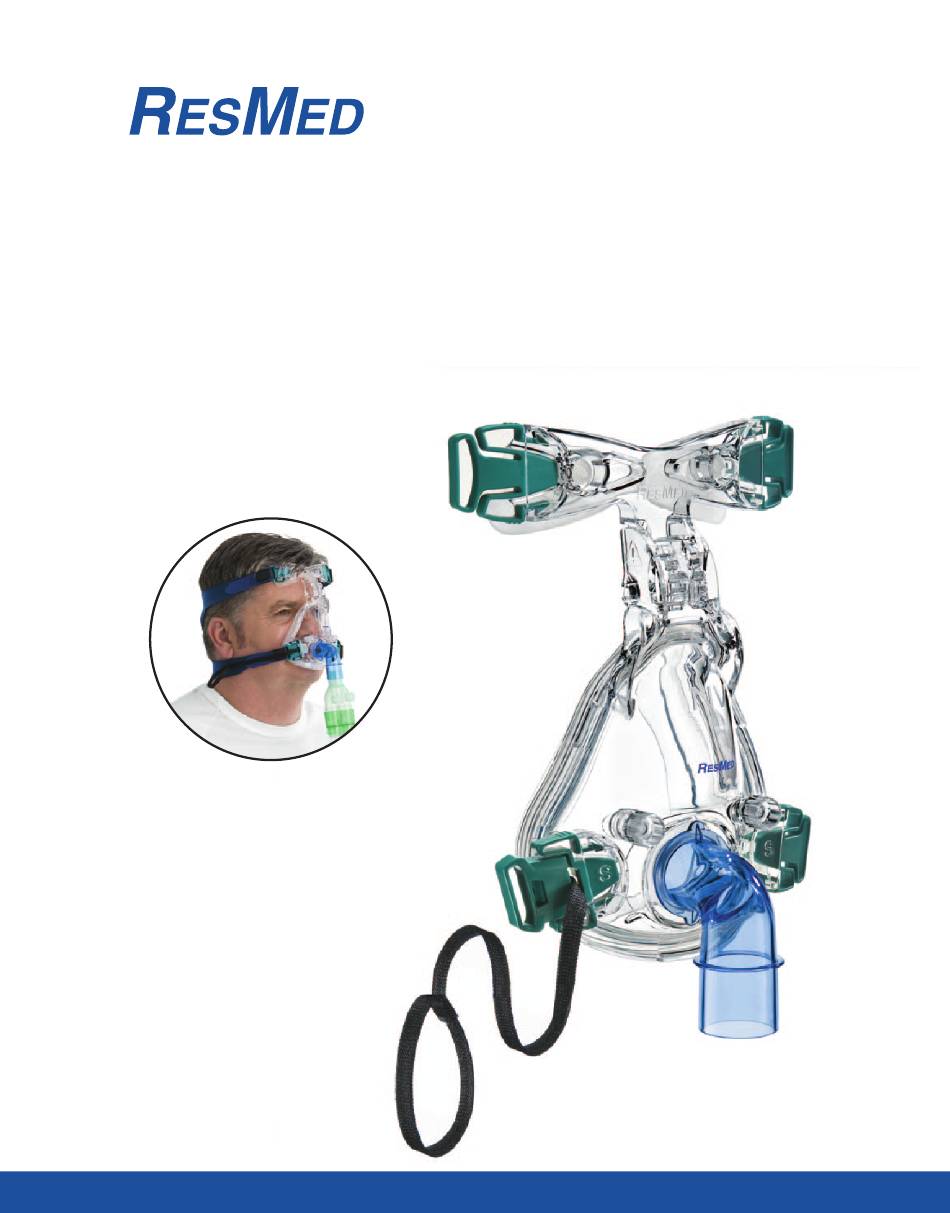

- Page 1 Ultra Mirage™ NoN-veNted full face mask Clinical Guide English...
- Page 2 Imbottitura del supporto frontale / Almohadilla del apoyo para la frente / Almofada do suporte da testa / Kussentje van voorhoofdsteun Ultra Mirage NON-VENTED FULL FACE MASK Forehead support / Stirnbauteil / Support frontal / Supporto frontale / Apoyo para la...
- Page 3 Disassembling for Cleaning / Demontage zu Reinigungszwecken / Fitting the Mask / Anlegen der Maske / Mise en place du masque / Come indossare la maschera / Colocación de la mascarilla / Colocação Démontage pour le nettoyage / Smontaggio per la pulizia / da máscara / Het masker opzetten Desmontaje para la limpieza / Desmontagem para limpeza / Demontage voor reiniging...
- Page 4 Reassembling the Mask / Wiederzusammenbau der Maske / Remontage du masque / Riassemblaggio della maschera / Montaje de la mascarilla / Montagem da máscara / Het masker opnieuw monteren Luer lock ports cap / Anschlusskappen für Luer-Verbindungsstück / Bouchon(s) d'entrée de raccord Luer / Tappi porte con connessione Luer / Tapas de puerto Luer lock / Tampas das portas com fecho do tipo Luer / Poortkap(pen) met...
-
Page 5: Intended Use
The Ultra Mirage NV Full Face Mask is to be used on adult patients (>30 kg), requiring non-life-support ventilatory assistance. The Ultra Mirage NV Full Face Mask is intended for single-patient re-use in the home or multipatient re-use in the hospital/institutional environment. - Page 6 ANY reaction to any part of the mask system, discontinue use and investigate the possible causes. • ResMed has tinted the Ultra Mirage NV Full Face Mask elbow blue to identify it as a non-vented mask for use with active exhaust non-invasive ventilator systems only.
-
Page 7: Removing The Mask
Leak or variation in the leak may cause mistriggering of the ventilator. Removing the Mask Normal Release To remove the Ultra Mirage NV Full Face Mask, squeeze one of the lower headgear clips and pull the mask and headgear up over the patient’s head. Emergency Release Cord The Emergency Release Cord (Figure 1) allows the mask to come away from the face quickly in the event of an emergency. -
Page 8: Disassembling For Cleaning
Simply pull the Emergency Release Cord and the two part clip separates, allowing you to remove the mask from the face. Figure 1: Emergency Release Cord. Note: The Emergency Release Cord should only be used to remove the mask in the event of an emergency. Overuse of the Emergency Release Cord may result in the deterioration of the two part clip mechanism. -
Page 9: Cleaning The Mask In The Home
The mask should be reprocessed when used between patients. Cleaning, disinfection and sterilisation instructions are available from the ResMed website, www.resmed.com/masks/sterilization. If you do not have Internet access, please contact your ResMed representative. Reassembling the Mask See section D on the illustrations sheet. -
Page 10: Technical Specifications
Note: The Emergency Release Cord must be attached to one of the bottom headgear straps in order to function correctly. Disposal The Ultra Mirage NV Full Face Mask does not contain any hazardous substances and may be disposed of with your normal household refuse. Technical Specifications... - Page 11 Pressure Maximum Leak (cm H (L/min) 4–20 Dead Space Dead space is the empty volume of the mask up to the elbow. The dead space of the mask varies according to cushion sizes but is less than 260 mL. Standards CE designation in accordance with EC directive 93/42/EEC, class IIa.
-
Page 12: Ordering Information
Temperature limitation Does not contain natural rubber latex Manufacturer Clinical Guide Indicates a Warning or Caution and alerts you to a possible injury or explains special measures for the safe and effective use of the device. Ordering Information Part No. Item System 60643... -
Page 13: Consumer Warranty
European Union. Note: Translations are based on the English version in this guide. However, there may be minor variations based on the disinfection/sterilisation procedures applicable in some countries. ResMed has reviewed these changes and all procedures included here have been validated. - Page 14 See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip Ultra Mirage and Mirage are trademarks of ResMed Ltd and Mirage is registered in the U.S. Patent and Trademark Office. CIDEX and STERRAD are trademarks of Johnson & Johnson. Alconox is a trademark of Alconox Inc.
- Page 15 608323/2 2018-02 Ultra Mirage NVFFM CLINICAL EUR 1 - ENG 608323 Global leaders in sleep and respiratory medicine www.resmed.com...
