Break In Service
50 Hours

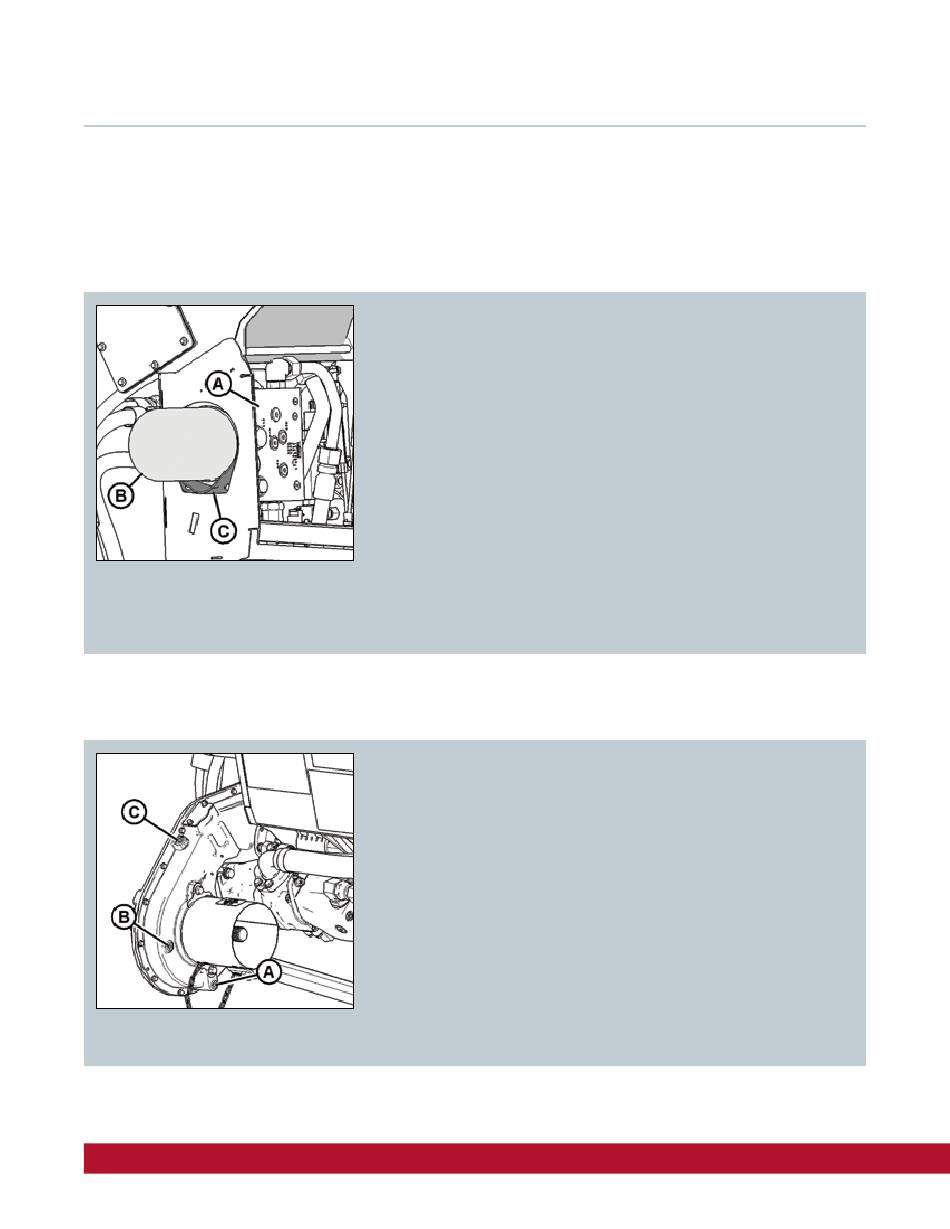

Change float module hydraulic oil filter. Change the oil filter after the first 50 hours of operation,
and every 250 hours thereafter.
New filter part number: 202986
Change header drive gearbox oil.
6 Draper Clinic Handout - FD1 FlexDraper
Clean around the mating surfaces of the filter (B) and manifold (A).
Place a suitably sized container (approximately 1 liter [0.26 gallons])
under the oil drain spout (C) to collect oil runoff.
Remove the spin-off filter (B) and clean the exposed filter port in the
manifold (A).
Apply a thin film of clean oil to the O-ring provided with the new filter.
Turn the new filter into the manifold (A) until the O-ring contacts the
mating surface. Tighten the filter an additional 1/2 to 3/4 turn by hand.
Confirm oil level in the reservoir and add as required
Refer to Section 5.4 Hydraulics in the Operators Manual
for more information.
Remove the oil drain plug (A) and the filler plug (C), and allow
the oil to drain.
Replace the oil drain plug (A) and remove the oil level plug (B).
Add SAE 85W-140 (API service class GL-5) oil into the filler plug (C)
until it runs out of the oil level hole (B).
NOTE: The header drive gearbox holds approximately 2.5 liters
(2.6 quarts) of oil.
Refer to Section 5.3 Maintenance Requirements in the Operators
Manual for more information.
®
