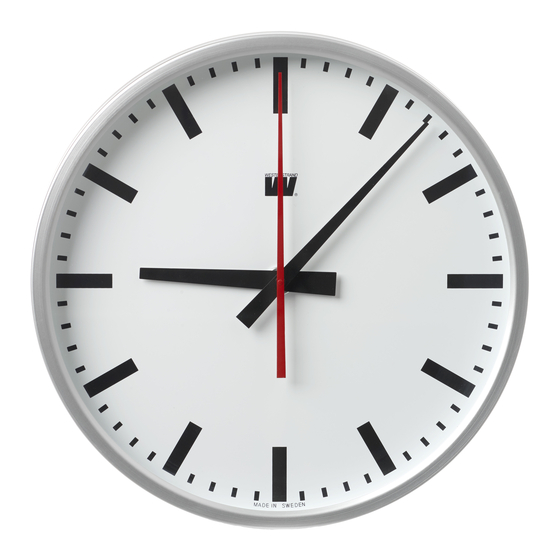

WESTERSTRAND Analogue NTP Clock Manual

Diameter 400-900 m.m; with power-over-ethernet connection
Hide thumbs Also See for Analogue NTP Clock:

Advertisement

Quick Links

Download this manual
Contents
General .....................................................................................................................................................................2
LAN connection .......................................................................................................................................................2
Functional description ..............................................................................................................................................3
Installation ................................................................................................................................................................3
Configuration using a WEB-browser .......................................................................................................................4
RASER .....................................................................................................................................................................9
Technical specification...........................................................................................................................................11
WESTERSTRAND URFABRIK AB
P.O. Box 133
SE-545 23 TÖREBODA
Analogue
NTP Clock
diameter 400-900 m.m
With Power-Over-Ethernet connection
Tel. +46 506 48000
Fax. +46 506 48051
WESTERSTRAND
Analogue NTP Clock
Manual
Internet::
E-mail:
Document: 1868en02.doc
Author: TAn
Date: 2011-11-21
Page: 1 of 11
http://www.westerstrand.se
info@westerstrand.se

Advertisement

loading
Need help?

Need help?

Do you have a question about the Analogue NTP Clock and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WESTERSTRAND Analogue NTP Clock

Summary of Contents for WESTERSTRAND Analogue NTP Clock

  • Page 1: Table Of Contents

    Document: 1868en02.doc WESTERSTRAND Author: TAn Date: 2011-11-21 Analogue NTP Clock Page: 1 of 11 Manual Analogue NTP Clock diameter 400-900 m.m With Power-Over-Ethernet connection Contents General ..................................2 LAN connection ...............................2 Functional description ..............................3 Installation ................................3 Configuration using a WEB-browser ........................4 RASER ..................................9...

  • Page 2: General

    Page: 2 of 11 General Westerstrand Analogue NTP Clock with Power over Ethernet (PoE) connection provides the possibility to create a time distribution system with high accuracy and high reliability. Initial setting function and error correction is automatic. The movement starts automatically after reception of correct time.

  • Page 3: Functional Description

    Document: 1868en02.doc WESTERSTRAND Author: TAn Date: 2011-11-21 Analogue NTP Clock Page: 3 of 11 Functional description After connection of the network cable, the hands are driven to the position 12:00. When the hands have reached this position the hands will be stopped and wait for the correct time. The hands will not move until the time code has been accepted.

  • Page 4: Configuration Using A Web-Browser

    If you forget the password, then start TELNET. The last line shows a number of characters within square brackets []. Contact Westerstrand and enter this value. After login a list of functions is displayed: WESTERSTRAND URFABRIK AB P.O.
  • Page 5 Document: 1868en02.doc WESTERSTRAND Author: TAn Date: 2011-11-21 Analogue NTP Clock Page: 5 of 11 Status >> Show status of the clock. The IP address of the clock MAC= Unique address. Always 00-90-C2-aa-bb-cc. The last 3 numbers (aa-bb-cc) are found on the network card, e.g.
  • Page 6 Document: 1868en02.doc WESTERSTRAND Author: TAn Date: 2011-11-21 Analogue NTP Clock Page: 6 of 11 General >> Program general parameters Name Symbolic name, max. 48 signs. This name is shown in the status menu. Model Type of clock: Single Single sided without second pointer...
  • Page 7 IP address of DNS server SNMP If SNMP is ON the clock will send SNMP traps to the selected SNMP server. The clock also will answer SNMP poll requests. Please contact Westerstrand for more information about SNMP and MIB-files. WESTERSTRAND URFABRIK AB P.O.
  • Page 8 Document: 1868en02.doc WESTERSTRAND Author: TAn Date: 2011-11-21 Analogue NTP Clock Page: 8 of 11 NTP >> NTP mode NTP Server Select NTP server, e.g. 192.168.1.5 or as an URL ntp1.sp.se. Country/Timezone Select country. A NTP server sends UTC time. The clock will correct this to local time and adjust for DST (Day-Light-Saving) automatically.

  • Page 9: Raser

    Find a Westerstrand Ethernet module 1. Set firmware mask. Examples: Search all Westerstrand Ethernet modules (default) Search only modules with firmware text NUR as first letters, e.g. NUR-A136 2. Set IP mask. Examples: Broadcast to all, i.e. 255.255.255.255 (default) Only show answers from segment 255.255.13.255...
  • Page 10 Date: 2011-11-21 Analogue NTP Clock Page: 10 of 11 Parameters Set parameters in selected clocks. . Please contact Westerstrand for more information about parameter setting using RASER. More functions If the info window is right-clicked more functions are displayed. [Clear]...

  • Page 11: Technical Specification

    Document: 1868en02.doc WESTERSTRAND Author: TAn Date: 2011-11-21 Analogue NTP Clock Page: 11 of 11 Technical specification General Synchronisation 0,1 sec/24 h at 22 ° C (stand-alone mode) Accuracy Hand movement Hour hand sweeping. Minute hand stepping, 1 step/minute. Network Protocols supported...
