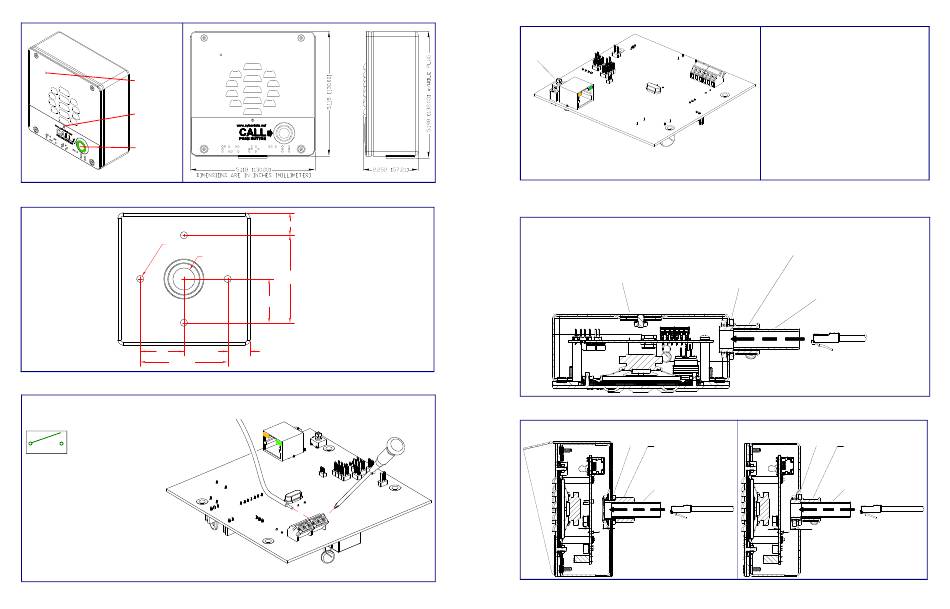

CyberData 011186 Installation Quick Reference page 2

Features Dimensions (Front and Side View)
Microphone
Hole
Speaker
Drain Hole
Call Button
Dimensions (Rear View and Mounting Holes)
Dimensions are in Inches [Millimeter]
ø0.280 [ø7.11]
(4 Places)
1.690
[42.93]
3.380 [85.85]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
Wire (IN)
Terminal Block
can accept
3 4
16 AWG wire
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
*Contacts 1 and 2 on the J3 terminal block are only
for powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
© 2015, CyberData Corporation, ALL RIGHTS RESERVED
0.869 [22.07]
ø0.854 [ø21.69]
3.380
[85.85]
1.690
[42.93]
0.869 [22.07]
1
6 J3 Terminal Block
930471H Quick Reference
RTFM Button
SW1
Side Conduit Network Cable Entry Restrictions
*More installation and mounting
information is illustrated in the
V3 Intercom Operations Guide.
Hole Plug
Assembly
Rear Conduit Network Cable Entry Restrictions
With Shroud
Spacer
1/2" Conduit
Connector
(Not Provided)
1/2" Conduit
(Not Provided)
Approx. 29/64'
[11.5mm] with
Optional Shroud On
Quick Reference
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
• Press and release the RTFM button within a five
second window.
Note The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
To restore the device to factory default settings:
• Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
1/2" Conduit
Connector
(Not Provided)
Spacer
1/2" Conduit
(Not Provided)
Network
Cable In
Without Shroud
Spacer
1/2" Conduit
Connector
(Not Provided)
1/2" Conduit
(Not Provided)
Network
Cable In
Approx. 3/8"
[9.5mm] without
Optional Shroud On
930471H © 2015, CyberData Corporation, ALL RIGHTS RESERVED
Network
Cable In
