Bamboo Clothes Rail
339 /2155
- Please keep for future reference

Dimensions

Width - 115cm
Depth - 3 5.5cm
Height - 148.5cm
Important –
Please read these instru ctions ful ly before startin g assembl y
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Issue 1 - 11/10/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 339 /2155 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos 339 /2155

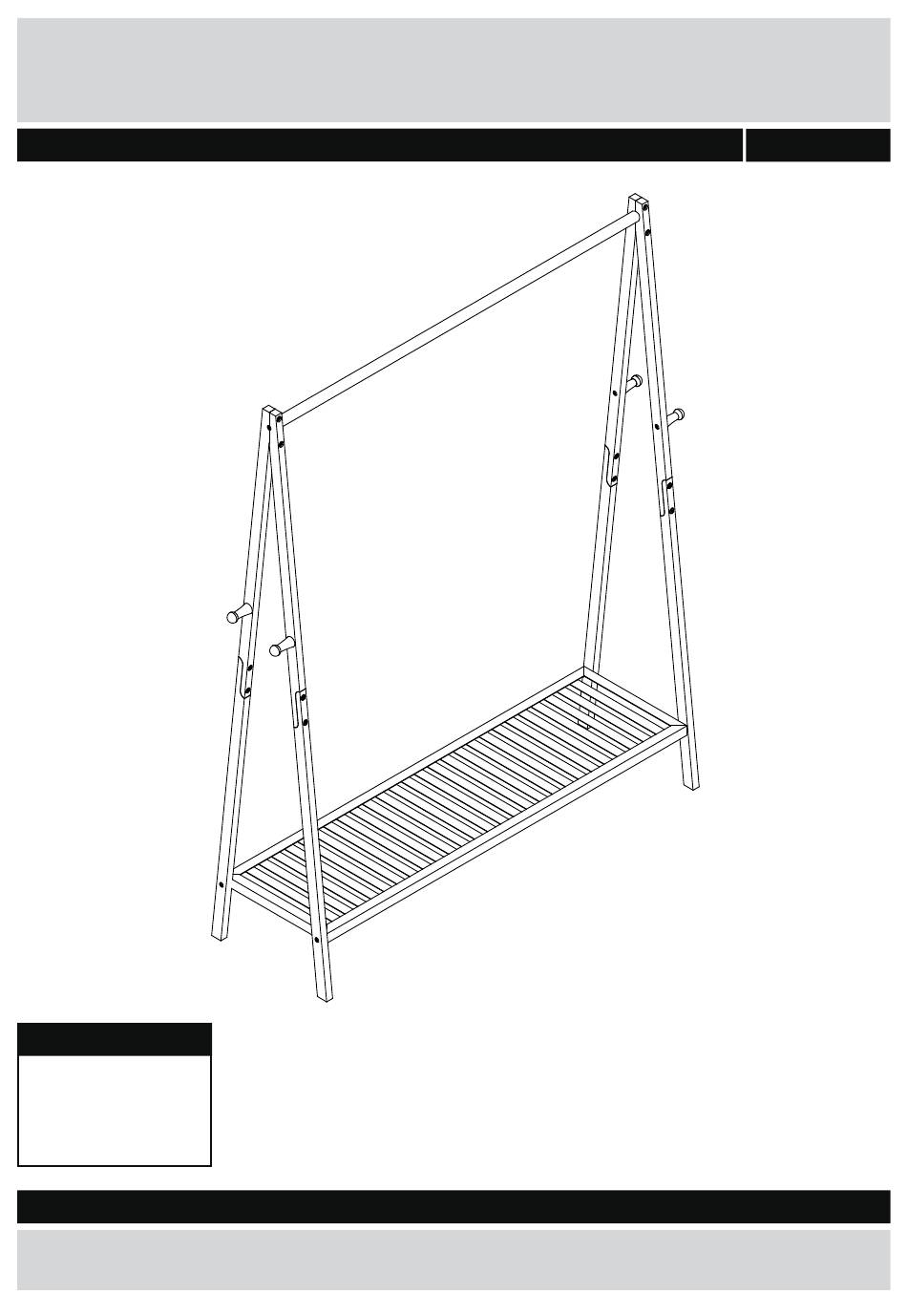

  • Page 1 Bamboo Clothes Rail Assembly Instructions 339 /2155 - Please keep for future reference Dimensions Width - 115cm Depth - 3 5.5cm Height - 148.5cm Important – Please read these instru ctions ful ly before startin g assembl y If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800...
  • Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Pls do not stand or put weight • We do not on the product during assembly, components and tools listed on recommend the this could cause damage.
  • Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: 0845 640 0800 Please check you have all the parts listed below Bottom Leg x 4 Top Leg x 4 Rail x 1 Shelf x 1 Peg x 4...
  • Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Bolt x 8 Bolt x 2 Wrench x 1 (M6 x 20mm) (M6 x 30mm)
  • Page 5 Assembly Instructions Step 1 Building the legs Insert rivet nuts bolts into leg Use Allen key Phillips screwdriver to lock bolts and rivet nuts together. Repeat with the remaining three legs. Step 2 Assembling the leg frames Insert bolts into as shown.Insert rivet nuts into the other leg.
  • Page 6 Assembly Instructions Step 3 Assemble the rail and shelf to side stretchers Attach rail to one leg frame with bolts Attach shelf to the assembly with bolts ,spring washers and nuts Fasten the bolts spring washers ,nuts using Allen key wrench Attach the other leg frame to the assembly as shown.
  • Page 7 MAX 10 kg MAX 1 kg MAX 1 kg MAX 20 kg If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800 Argos Ltd MK9 2NW...
