- Page 1 Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Document 411-0038-31 Rev. B November 2020...
- Page 2 Vaddio is a brand of Legrand AV Inc.· Phone 800.572.2011 / +1.763.971.4400 · Fax +1.763.971.4464 · Email av.vaddio.support@legrand.com · Visit us at www.legrandav.com for firmware updates, specifications, drawings, manuals, technical support information, and more. ©2020 Legrand AV Inc. ® Vaddio is a registered trademark of Legrand AV Inc. NDI is a registered trademark of NewTek, Inc.
-
Page 3: Table Of Contents
Contents Overview What's in this Guide Camera Features Unpacking the Camera A Quick Look at the Camera Front of the Camera Back of the Camera Installing the Camera Don’t Void Your Warranty! Before You Start Cabling Notes Functional Check Status Light Video Resolution Setting About Ceiling-Mounted Cameras Installing the Wall Mount... -
Page 4: Overview
This guide covers: Unpacking the camera Tips for a successful installation Camera power-on Complete product information is available in the Complete Manual for RoboSHOT 12E NDI and RoboSHOT 30E NDIHigh-Performance PTZ Cameras. Download manuals, dimensional drawings, and other information from www.legrandav.com. Camera Features ®... -
Page 5: Unpacking The Camera
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Unpacking the Camera Make sure you received all the items you expected. Caution Always support the camera's base when picking it up. Lifting the camera by its head or mounting arm will damage it. -
Page 6: A Quick Look At The Camera

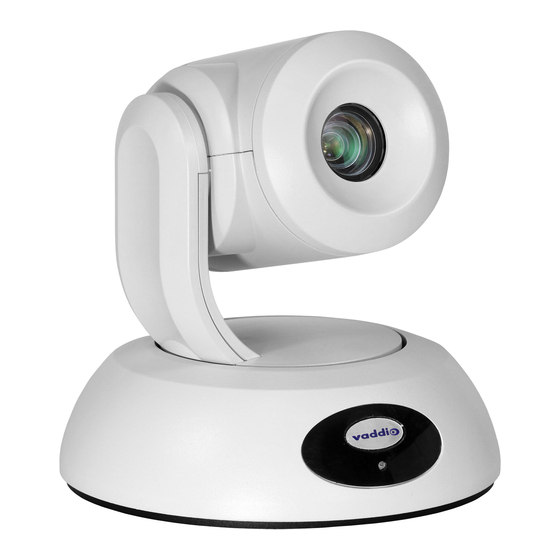

RoboSHOT NDI cameras are available in black or white. Front of the Camera Camera and Zoom Lens RoboSHOT 12E NDI: 12x zoom is ideal for classrooms and small to medium sized conference rooms. RoboSHOT 30E NDI: 30x zoom delivers superb clarity and detail even in large spaces. -
Page 7: Back Of The Camera
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Back of the Camera The connector panels of the RoboSHOT 12E NDI and RoboSHOT 30E NDI cameras are identical. From left to right: Network PoE+: RJ-45 connector. Connect to the network via PoE+ injector for power, control, and video. -
Page 8: Installing The Camera
This product is for indoor use only. Use an appropriate protective enclosure if installing it outdoors or in a humid environment. Do not install or operate this product if it has been dropped, damaged, or exposed to liquids. If any of these things happen, return it to Vaddio for safety and functional testing. Before You Start... -
Page 9: Cabling Notes
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Cabling Notes Use Cat-5e or better cable. Cat-6 or Cat-7 cabling allows longer maximum cabling distance, and may provide better performance in noisier RF or EMF environments. We recommend shielded cabling if the cables will be coiled, run tightly with other cables, or routed near sources of electromagnetic interference such as power lines or fluorescent light fixtures. -
Page 10: Status Light
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Status Light The light in the camera's base indicates its current state. Blue: Normal operation (blinks once when the camera receives a command from the remote) Red: On-air tally (signal provided by external device via serial connection) -
Page 11: Installing The Wall Mount
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Installing the Wall Mount The camera is shipped with a Thin Profile Wall Mount. Other mounting options are available as well. Contact us if you don't have the camera mount you need. -
Page 12: Connecting The Camera
IP address before you connect it to the network. Work with the network administrator to determine how to configure the equipment. Refer to the Complete Manual for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras (System Administration section) for information on configuring static IP addresses. -
Page 13: Installing The Camera
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Installing the Camera Be sure you have already set the camera's video resolution switch. Caution Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in equipment damage and will void the warranty. -
Page 14: Operation, Storage, And Care
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Operation, Storage, and Care For smears or smudges on the product, wipe with a clean, soft cloth. Use a lens cleaner on the lens. Do not use any abrasive chemicals. -
Page 15: Compliance And Conformity Statements
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Compliance and Conformity Statements Compliance testing was performed to the following regulations: FCC Part 15 (15.107, 15.109), Subpart B Class A ICES-003, Issue 54: 2012 Class A EMC Directive 2014/30/EU... -
Page 16: European Compliance
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras European Compliance This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 17: Photo Credits
Installation Guide for RoboSHOT 12E NDI and RoboSHOT 30E NDI High-Performance PTZ Cameras Photo Credits This manual may include some or all of these photos. European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats-... -
Page 18: Index
Index operating environment 11 output resolution 7 anatomy of the camera 3-4 packing lists 2 power 10 on and off 10 behavior on power-up 10 product capabilities 1 cable 4, 6 resolution 7 connectors 4, 6 RJ-45 connectors 6 please check them (PLEASE) 6 rotary switch 7 recommendations 6 camera mount, installing 8...
