Precision Digital Corporation ProVu PD6200 Quick Start Manual

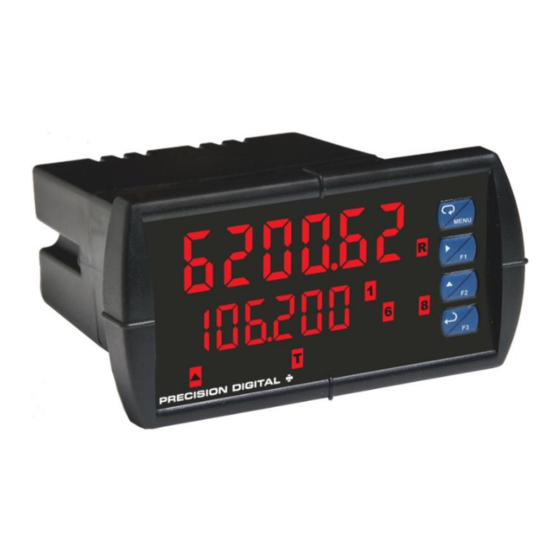

ProVu PD6200 Analog Input Rate/Totalizer
Thank you for your purchase of the
ProVu PD6200 rate/totalizer.
This quick start guide will briefly
describe some of the common setup
procedures for this meter.
This guide includes:
Installing MeterView Pro......................
Basic Wiring for ProVu Meter..............
Program and Scale the Input...............
Program Relays for Automatic Reset...
Program 4-20 mA Analog Output.........
Return Meter to Factory Defaults.........
For additional information about the
ProVu PD6200 rate/totalizer not covered
in this quick start guide, please consult
the instruction manual included on the
CD or available at
P
R
© 2016 Precision Digital Corporation.
.
All rights reserved
Quick Start Guide
www.predig.com.
V
U
S
ERIES
Menu Button - Use this button to
access Programming Mode and to
return to Run Mode.
Note: If you think you have made a mistake while
programming the meter, use this button to
return the meter to Run Mode without saving.
Right/F1 Button - Use this button to
2
change the selected digit while input-
3
ting a numeric value in Programming Mode.
4
6
Up/F2 Button - Use this button to
7
increment the selected digit while
8
inputting a numeric value in Programming
Mode.
Enter/F3 Button - Use this button to
access or accept a menu item while
in Programming Mode.
®
233 South Street
Hopkinton MA 01748-2208 USA
Tel. (508) 655-7300 www.predig.com
MeterView Pro
USB Install
