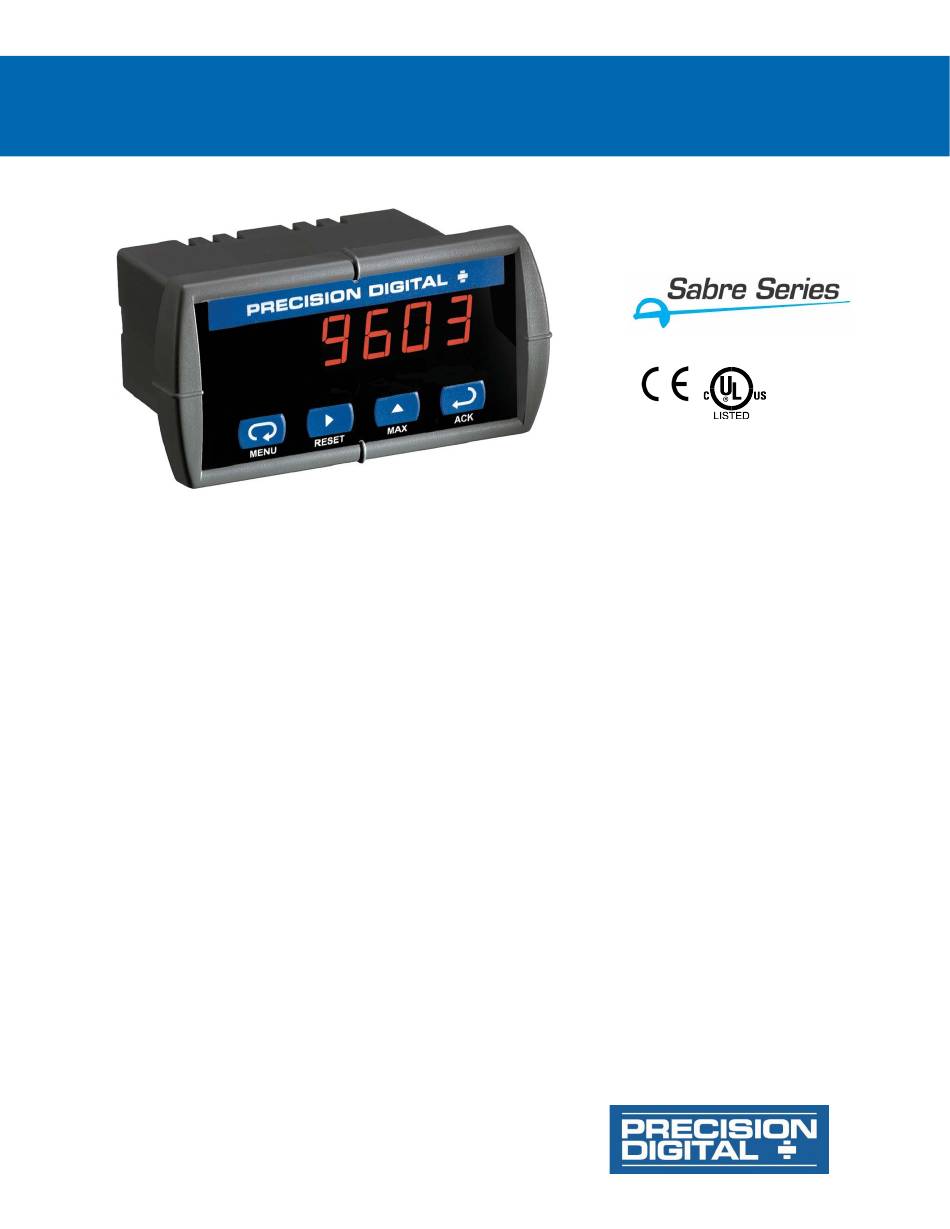

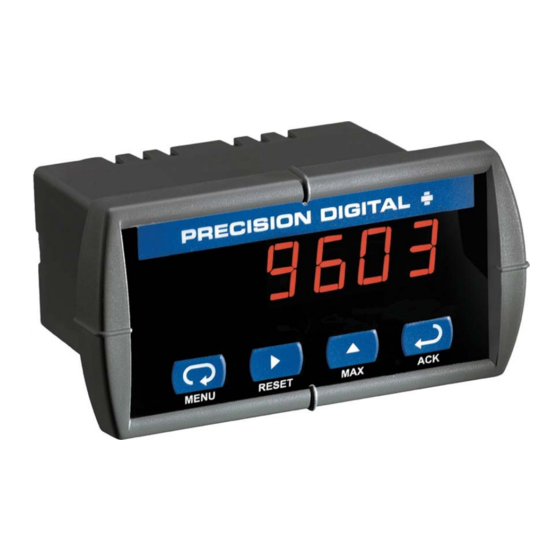

Sabre P PD603 Low-Cost Process Meter
Instruction Manual
•
1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
•
0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs
•
4-Digit Display, 0.56" (14.2 mm)
•
Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel
•
Isolated 24 VDC @ 200 mA Transmitter Power Supply Option
•
No Assembly Required
•
Operating Temperature Range: 0 to 65°C (32 to 150°F)
•
UL & C-UL Listed. E160849; 508 Industrial Control Equipment
•
Input Power Options: 85-265 VAC or 12-36 VDC
•
Max/Min Display
•
Easy Front Panel Programming; No Jumpers, Switches or Solder Pads
•
1-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
Advertisement
Table of Contents
Related Manuals for Precision Digital Corporation Sabre P PD603
Summary of Contents for Precision Digital Corporation Sabre P PD603
- Page 1 Sabre P PD603 Low-Cost Process Meter Instruction Manual • 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front • 0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs • 4-Digit Display, 0.56" (14.2 mm) • Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel •...
-
Page 2: Introduction
Sabre P PD603 Low-Cost Process Meter Instruction Manual Disclaimer INTRODUCTION The information contained in this document is The Sabre P model PD603 is an easy to use 1/8 DIN subject to change without notice. Precision Digital digital panel meter that has all the important features makes no representations or warranties with customers want in a process input meter. -
Page 3: Table Of Contents
Sabre P PD603 Low-Cost Process Meter Instruction Manual Table of Contents Table of Figures INTRODUCTION --------------------------------------- 2 Figure 1. Panel Cutout and Mounting ....6 Figure 8. Meter Dimensions - Side View ....6 ORDERING INFORMATION ------------------------ 2 Figure 9. Case Dimensions - Top View ....6 SPECIFICATIONS ------------------------------------- 4 Figure 2. -
Page 4: Specifications
Sabre P PD603 Low-Cost Process Meter Instruction Manual SPECIFICATIONS TIGHTENING Screw terminal connectors: 5 lb-in TORQUE (0.56 Nm) Except where noted all specifications apply to operation at +25°C. OVERALL 2.45" x 4.68" x 4.19" General DIMENSIONS (62 mm x 119 mm x 106 mm) DISPLAY 0.56"... -
Page 5: Compliance Information
Sabre P PD603 Low-Cost Process Meter Instruction Manual COMPLIANCE INFORMATION SAFETY INFORMATION Safety UL LISTED USA and Canada UL 508 Industrial Control Equipment UL FILE NUMBER E160849 CAUTION: Read WARNING: Risk of complete instructions electric shock. FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel... -
Page 6: Installation
Sabre P PD603 Low-Cost Process Meter Instruction Manual INSTALLATION MOUNTING DIMENSIONS There is no need to remove the meter from its case to complete the installation, wiring, and setup of the 1.76" (45mm) meter. Unpacking Remove the meter from box. Inspect the packaging and contents for damage. -
Page 7: Connections
Sabre P PD603 Low-Cost Process Meter Instruction Manual Connections Signal Connections Signal connections are made to a five-terminal All connections are made to removable screw connector labeled SIGNAL on Figure 4. The COM terminal connectors located at the rear of the meter. -
Page 8: Setup And Programming
Sabre P PD603 Low-Cost Process Meter Instruction Manual SETUP AND PROGRAMMING Display Functions and Messages The meter displays various functions and messages Overview during setup/programming and operation. The following table shows the displayed functions and There are no jumpers involved in the setup process of messages with their action/setting description. -
Page 9: Main Menu
Sabre P PD603 Low-Cost Process Meter Instruction Manual Main Menu Setting Up the Meter ( setu ) The main menu consists of the following functions: The Setup menu is used to select: Setup and Password. Input signal the meter will accept •... -
Page 10: Programming The Meter ( Prog )
Sabre P PD603 Low-Cost Process Meter Instruction Manual Programming the Meter ( prog ) Error Message ( ; rr ) An error message indicates that the calibration or The meter may either be scaled (ScAL) without scaling process was not successful. -
Page 11: Setting Up The Password ( Pass )
Sabre P PD603 Low-Cost Process Meter Instruction Manual OPERATION Setting Up the Password ( pass ) For process inputs, the meter is capable of accepting The Password menu is used to program a four-digit positive and negative signals and displaying these password to prevent unauthorized changes to the signals in engineering units from -1999 to 9999 (e.g. -
Page 12: Troubleshooting
Sabre P PD603 Low-Cost Process Meter Instruction Manual TROUBLESHOOTING The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. Troubleshooting Tips Symptom Check/Action... -
Page 13: Eu Declaration Of Conformity
EN 55011:2009+A1:2010, EN 61000-6-2:2005, EN 61010-1:2010, and EN 61326:2013 and there were no major technical changes affecting the latest technical knowledge for the products listed above. Product Markings: Signed for and on behalf of Precision Digital Corporation: Name: Jeffrey Peters Company:... - Page 14 Sabre P PD603 Low-Cost Process Meter Instruction Manual Contact Precision Digital Technical Support Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: support@predig.com Sales Support Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com...
