1．List of included items

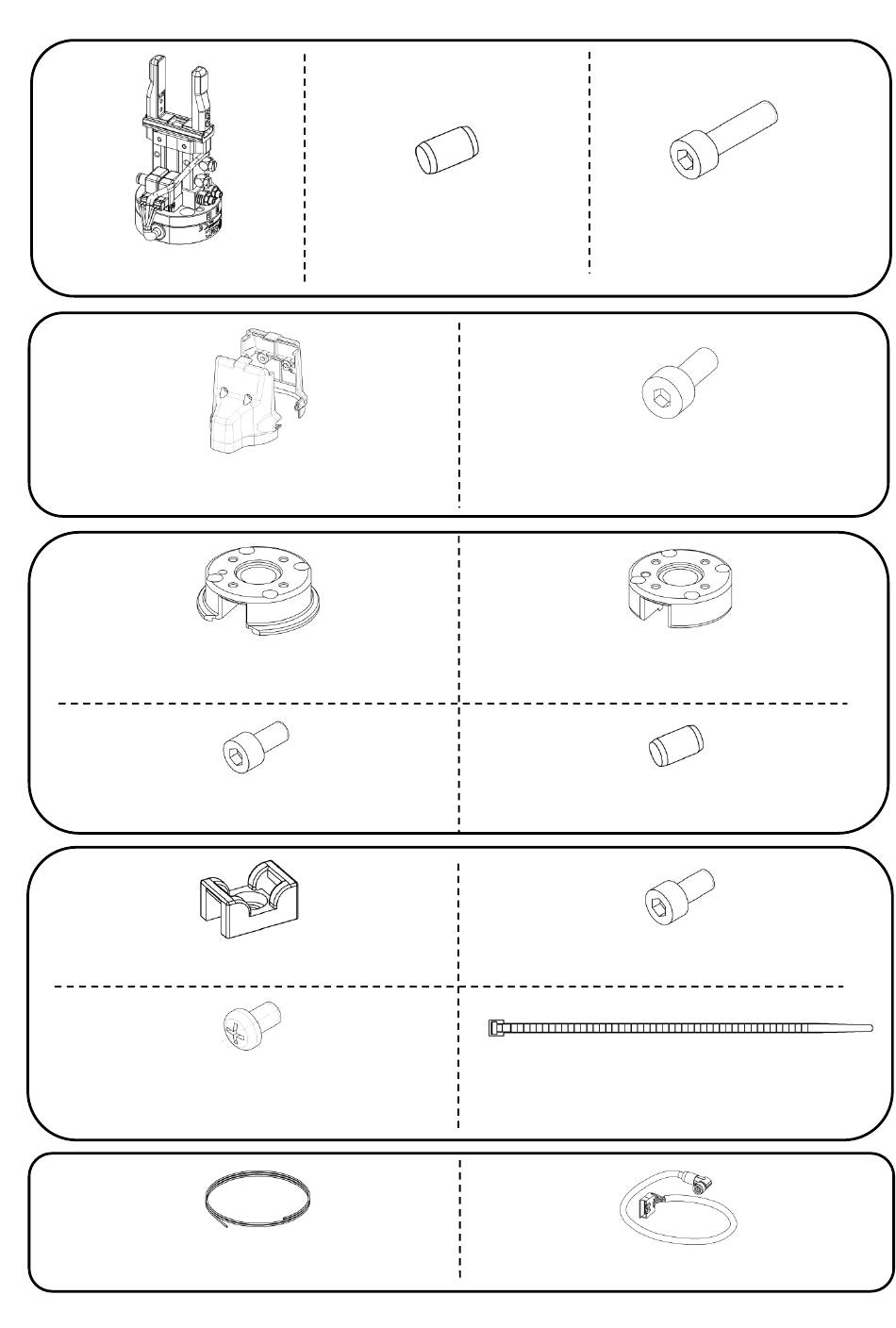

Air gripper unit 1pc.

Protection cover (Valve side) 1pc.

Protection cover (Switch side) 1pc.

Flange for MOTOMAN-HC10 1pc.

* For JMHZ2-16D-X7400B-HC10-(*).

Hexagon socket head cap screw (M6x12)

4pcs. For mounting the flange.

INSULOK® tie mount 2pcs.

Cross recessed resin round head screw

(M4×6) 2pcs.

For plugging when INSULOK®

cable tie fixtures are not used.

Coil tube for piping φ4

(TU0425BU-100) 2m.

Parallel pin (6×10) 1pc.

For positioning the product.

Hexagon socket head cap screw (M4×8) 2pcs.

- 4 -

Hexagon socket head cap

screw (M6×23) 4pcs.

For mounting the product.

Hexagon socket head cap screw

(M4×10) 4pcs. For mounting the cover.

Flange for MOTOMAN-HC10DT 1pc.

* For JMHZ2-16D-X7400B-HC10DT-(*).

Parallel pin (6×10mm) 1pc.

For positioning the flange.

For fixing INSULOK® tie mount.

INSULOK® tie 2pcs.

M8-Molex Conversion cable 1pc.
