Step 9: Install Vertical Gpu Mount - SINGULARITY COMPUTERS SPECTRE III Assembly Manual

Step 9: Install Vertical GPU Mount.

Pieces Involved

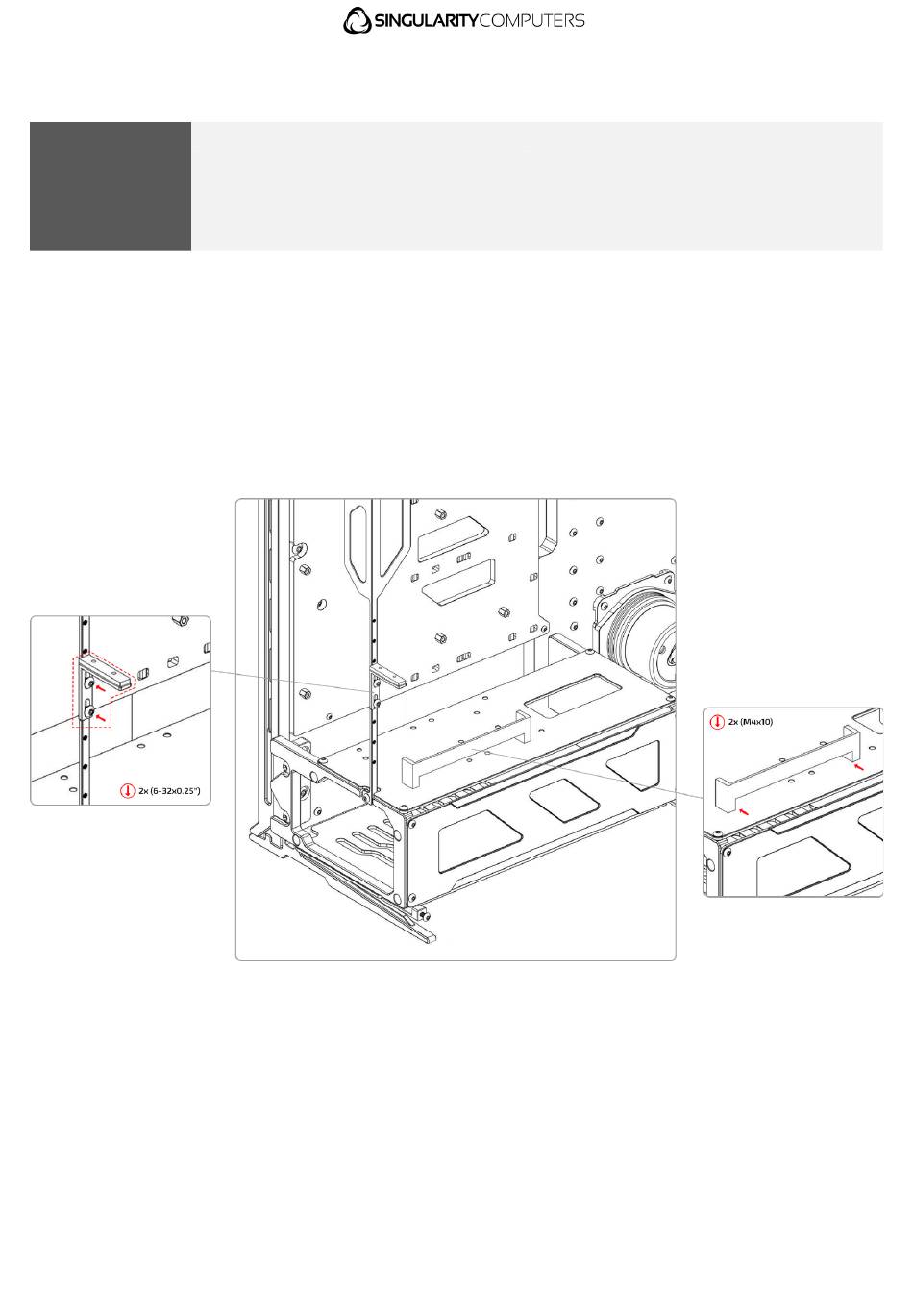

Remove the PSU Side Panel to gain access into the PSU Shroud. Install the Vertical GPU Bracket
using the 2x M4 x 10mm Fasteners, which also has the Ribbon Cable attached. The fasteners are
installed up from underneath the PSU Top panel. There are several holes in the PSU Top Panel
also for the 2nd Vertical GPU Mount and SSD Mounting so be careful to select the correct
mounting holes.
Install the Vertical GPU Angle using the x2 6-32 x 0.25" Fasteners. Be careful to select the correct
position on the Rear IO Panel so that the angle is at the correct height for your GPU.
Revision 1.2
• Spectre 3.0 Case
• Vertical GPU Bracket & Ribbon
Cable
• Vertical GPU Angle
| Spectre 3.0 Assembly Manual
• Vertical GPU Spacer
• Fasteners – 2x 6-32 x 0.25"
• Fasteners – 8x M4 x 10mm
Page | 17
