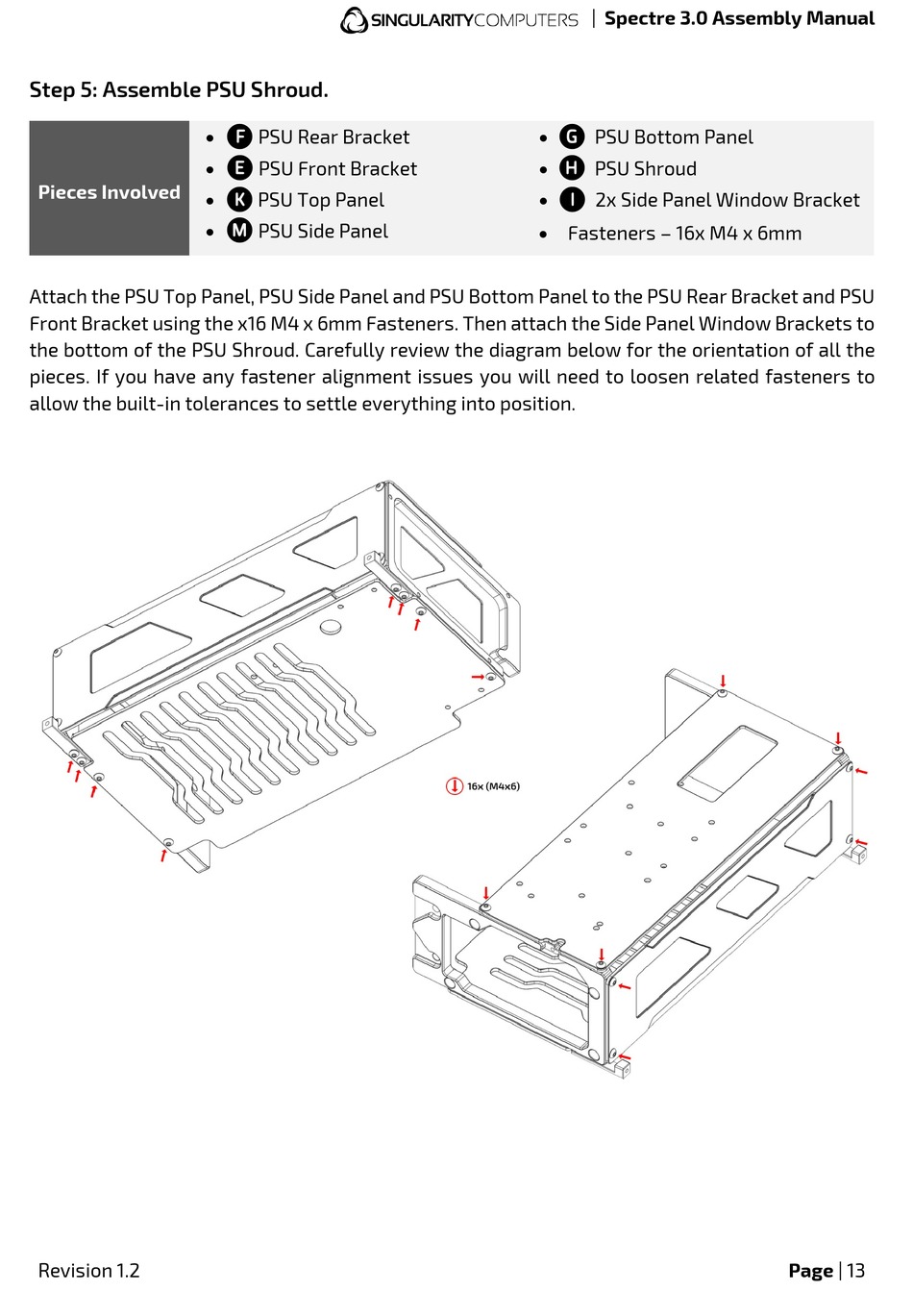

Step 5: Assemble PSU Shroud.

Pieces Involved
Attach the PSU Top Panel, PSU Side Panel and PSU Bottom Panel to the PSU Rear Bracket and PSU
Front Bracket using the x16 M4 x 6mm Fasteners. Then attach the Side Panel Window Brackets to
the bottom of the PSU Shroud. Carefully review the diagram below for the orientation of all the
pieces. If you have any fastener alignment issues you will need to loosen related fasteners to
allow the built-in tolerances to settle everything into position.
Revision 1.2
f
•
PSU Rear Bracket
e
•
PSU Front Bracket
k
•
PSU Top Panel
m
•
PSU Side Panel
| Spectre 3.0 Assembly Manual
g
•
PSU Bottom Panel
h
•
PSU Shroud
i
•
2x Side Panel Window Bracket
• Fasteners – 16x M4 x 6mm
