FARBWERK

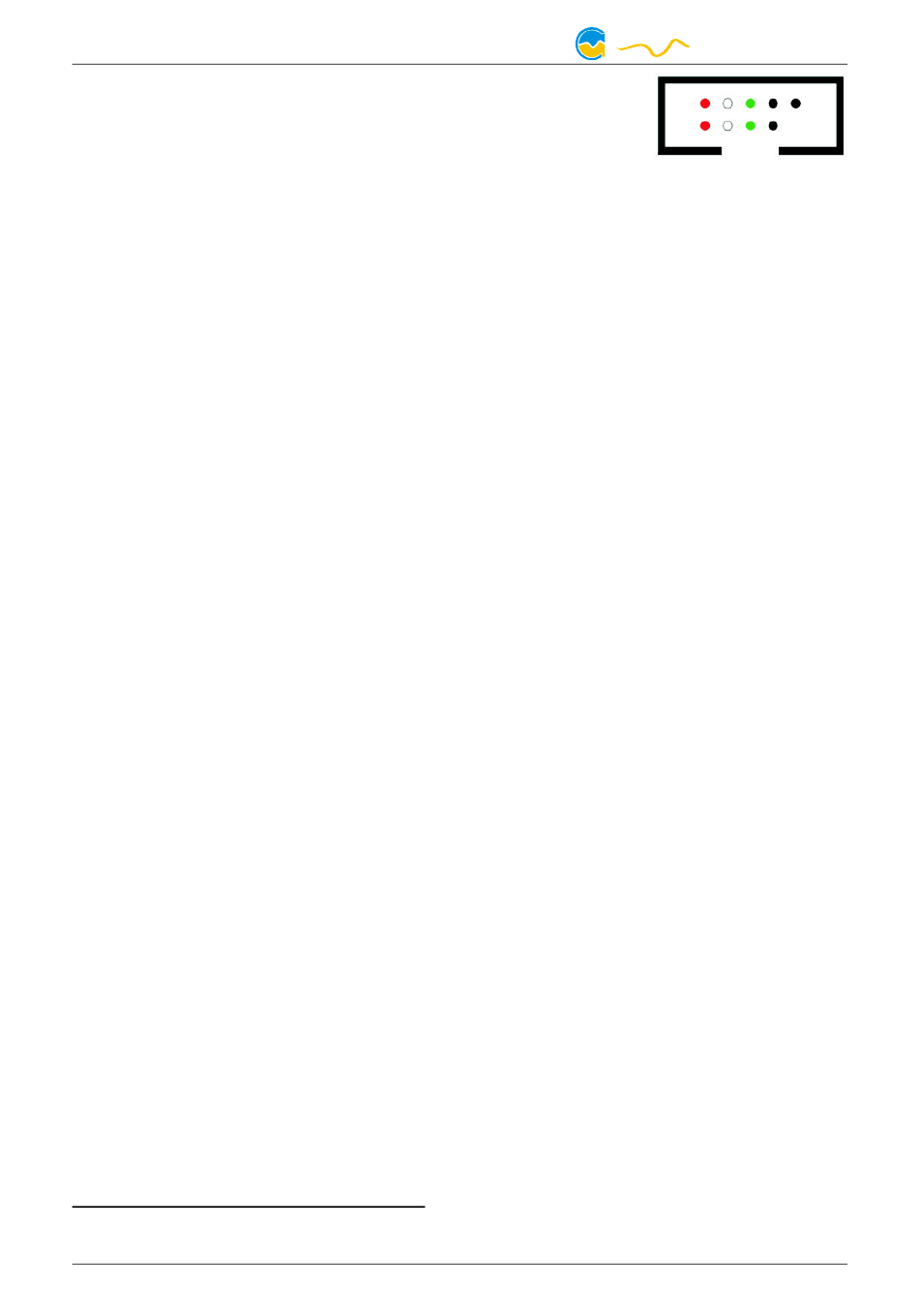

USB device. The black wires (GND) are to be connected to
the side of the missing pin, see picture with colored pin as-
signment.
Pin assignment:
Pin 1: +5 V (red)
Pin 2: D-
Pin 3: D+ (green)
Pin 4: GND (black)
Pin 5: not connected
5.5.
5.5.
5.5. aquabus 1/2
5.5.
aquabus 1/2
aquabus 1/2
aquabus 1/2
Connector for communication with other Aqua Computer devices. Use a compati-
ble aquabus cable (not included in delivery, article no. 53122/53162) to connect
the farbwerk controller board to a suitable connector of a compatible device, for
example an aquaero. USB and aquabus interface can be used at the same time.
Pin assignment:
Pin 1: GND
Pin 2: SDA
Pin 3: SCL
Compatible aquabus devices:
aquaero 6 XT (53146, 53206, 53250, 53251, 53262, 53263)
●
aquaero 6 PRO (53145, 53253)
●
aquaero 6 LT (53234)
●
aquaero 5 XT (53089, 53125, 53249)
●
aquaero 5 PRO (53090, 53252)
●
aquaero 5 LT (53095)
●
5.6.
5.6.
5.6. Temperature sensors
5.6.
Temperature sensors
Temperature sensors
Temperature sensors
Connector for up to four temperature sensor.
Pin assignment:
Pin 1/3/5/7: Signal 1-4
Pin 2/4/6/8: GND
Compatible sensors:
Temperature sensor inline G1/4 (53066)
●
Temperature sensor inner/outer thread G1/4 (53067)
●
Temperature sensor G1/4 (53147)
●
Temperature sensor plug&cool (53025)
●
Temperature sensor 70 cm (53026)
●
5.7.
5.7. Status LED
Status LED
5.7.
5.7.
Status LED
Status LED
The blue status LED should always be active if power is supplied. For revisions 1
and 2 (black circuit boards), the LED is soldered into the circuit board and can not
be removed.
Revision 8 (white circuit boards) only: The status LED is removable and can be in-
serted from both sides. A red LED is also included in delivery and can be used in-
- 6 -
(white)
Aqua Computer GmbH & Co. KG
Gelliehäuser Str. 1, 37130 Gleichen
aqua
computer
© 2014-2020
