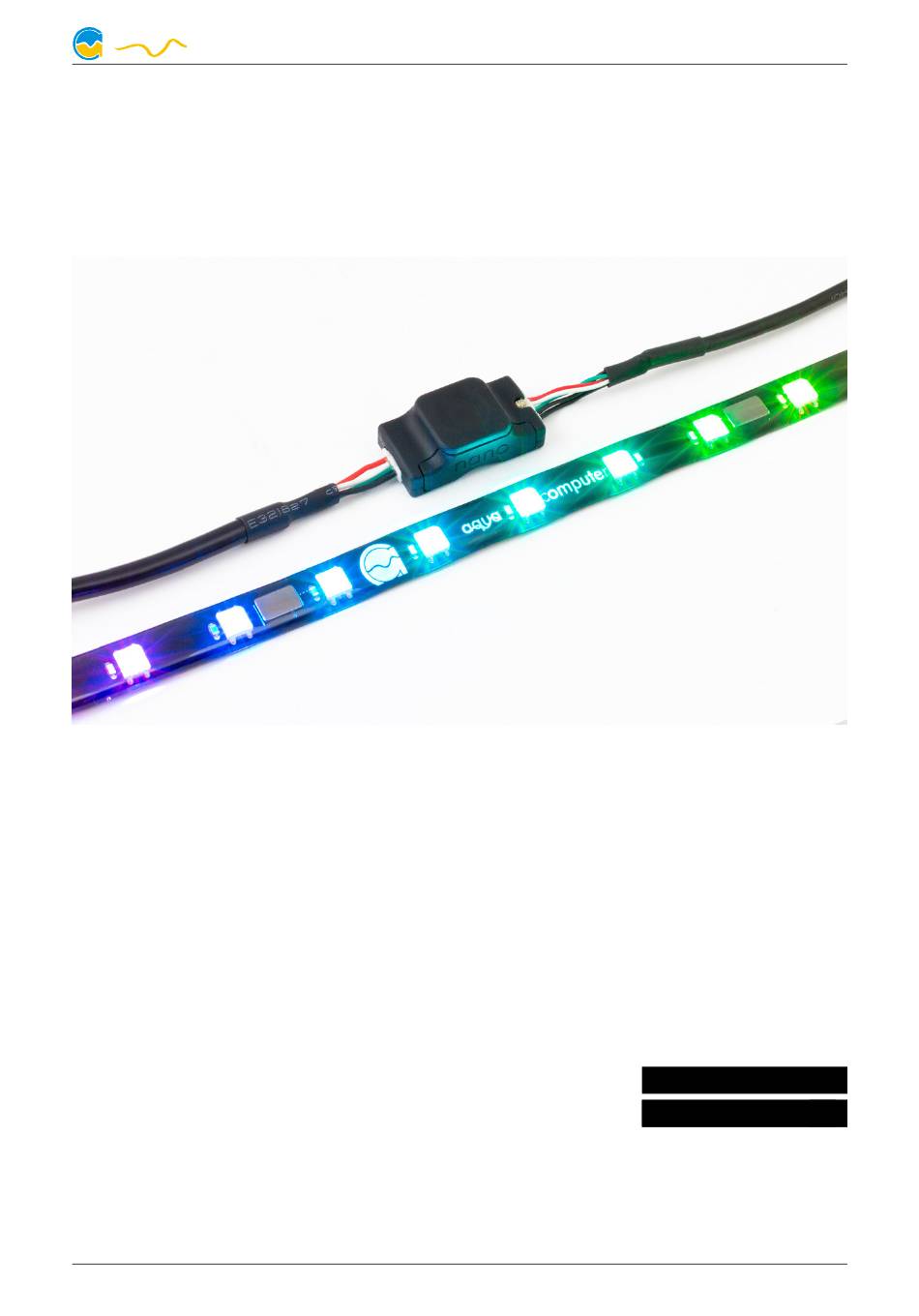

- Page 1 DEUTSCH: SEITE 23 Current as of April 2020 All information contained in this manual is subject to change without prior notice. All rights reserved. © 2019-2020 Aqua Computer GmbH & Co. KG - 1 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 2: Table Of Contents
10.2. Modify existing LED controllers...........13 10.3. Modify LED assignments............14 10.4. Duplicate LED controllers............14 10.5. Multi-assign LED controllers............14 10.6. Delete LED controllers...............14 10.7. Transparency................14 10.8. Sound controlled effects.............15 - 2 - Aqua Computer GmbH & Co. KG © 2019-2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 3: Preface

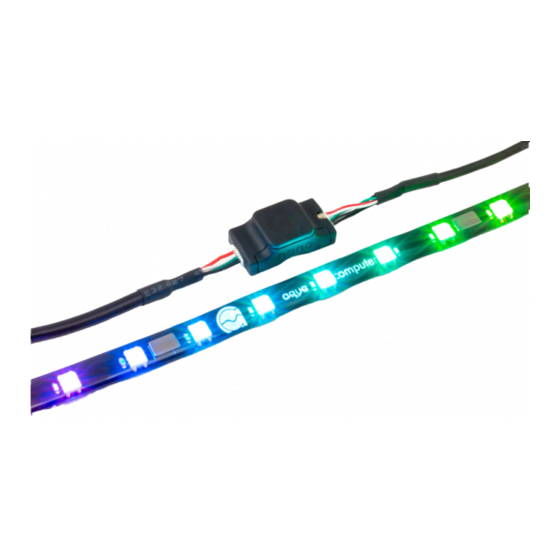

Preface Preface Preface The farbwerk nano is a RGBpx effect controller for up to 90 individually address- able LEDs. Additionally, the device is equipped an ambient brightness sensor. Considering the fast technical development, we reserve the right to perform alter- ations to the products at any time. -
Page 4: Safety Precautions
Aqua Computer GmbH & Co. KG customers using or selling this product for use in such application do so at their own risk and agree to fully indemnify Aqua Computer GmbH &... -
Page 5: Connector "Rgbpx" (Four Contacts)
5. 5. 5. 5. Intelligent push button Intelligent push button Intelligent push button Intelligent push button The push button of the farbwerk nano has three modes of operation. 5.1. 5.1. 5.1. 5.1. Toggle strip on/off by pressing the button briefly... -
Page 6: Installation Of The Aquasuite Software
Clicking the gear symbol will access the basic configuration page of the selected list element. In order to save all settings into a device, click the disk symbol in the headline. - 6 - Aqua Computer GmbH & Co. KG © 2019-2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 7: Overview Pages (Aquasuite)
The new element will be displayed in the upper left corner and the configuration window is displayed. Configure the element as described in the next chapters. © 2019-2020 Aqua Computer GmbH & Co. KG - 7 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 8: Editing Existing Elements
To do so, add an “User defined” element to an overview page. Switch to the “Display” tab in following dialog box, select the type of element to be - 8 - Aqua Computer GmbH & Co. KG © 2019-2020 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 9: Export And Import Of Overview
This includes data from connected USB devices as well as hardware data supplied by the Aqua Computer background service. Displayed data may be filtered using the text box next to the magnifier icon, a chart shows the develop- ment over a maximum of ten minutes. -
Page 10: Log Settings
FARBWERK NANO In contrast, the “Data log” may be used to selectively and permanently store data from all connected Aqua Computer devices and hardware data supplied by the background service. Logged data can then be analyzed by creating charts or be exported to files. -
Page 11: Manual Data Export
“Data sources” window section. You may add an unlimited number of data sources to each export data set, the total number of ex- port data sets is also unlimited. © 2019-2020 Aqua Computer GmbH & Co. KG - 11 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 12: Sensor Configuration
Sensor configuration Sensor configuration Sensor configuration Select “Sensors” from the device list below the “farbwerk nano” entry. In the upper area, the 16 available sensors are displayed including current data. In the lower area, the currently selected sensor can be configured. -
Page 13: Rgbpx Configuration
RGBpx configuration RGBpx configuration RGBpx configuration Select “RGBpx” from the device list below the “farbwerk nano” entry. In the RGBpx overview, select the RGBpx output. After selecting the RGBpx output, new LED controllers can be added. Po- sition and number of assigned LEDs can be modified for existing LED controllers, multiple assignments and controller settings can be modified. -
Page 14: Modify Led Assignments
Transparency The default configuration defines all colors of the LED controllers in the farbwerk nano as “solid”, meaning without transparency. If multiple LED controllers are assigned to a LED or an area of LEDs, the LED controller with the highest priority determines the color of the LED. As described above, this is always the LED controller the furthest up in the list of controllers. -
Page 15: Sound Controlled Effects
Profile management farbwerk nano Profile management farbwerk nano Select “Profiles” from the device list below the “farbwerk nano” entry. The profile management can be used to select up to four profiles manu- ally or automatically. In order to use this functionality, LED controllers must be assigned to the individual profiles as described above. -
Page 16: System Settings Farbwerk Nano
USB power supply USB power supply The farbwerk nano is supplied with power through the USB connection. In default configuration, power consumption is limited to a maximum current of 0.5 Amps. This value complies with the maximum allowed current according to the USB spec- ification. -
Page 17: Firmware Update
© 2019-2020 Aqua Computer GmbH & Co. KG - 17 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 18: Hotkeys
Click the entry “aquasuite web” to publish data on the internet or import data from the internet. The server for this service is operated by Aqua Computer and provid- ed for use with the aquasuite, without warranty for error free operation or perma- nent availability. -
Page 19: Data Access
Data import Data import To import a data set from the Aqua Computer server, the “access key” of the data set is required. The access key can be found in the aquasuite on the computer providing the data in the “Data access” section. -
Page 20: Reorder Menu Items
Service administration Service administration The background service configures special USB settings for all connected Aqua Computer devices, provides hardware data, software sensors, pro- file management and aquasuite web and should therefore always be ac- tive. The hardware monitoring features of the background service can be disabled for specific categories if errors occur. -
Page 21: Technical Details And Care Instructions
“Register key” button, the update service period is permanently assigned to the selected device and stored on the Aqua Computer update server. The key will not have to be re-entered after re-installation of the software or transfer of the de- vice to another computer, but transferring the update service period to another de- vice is not possible. -
Page 22: Waste Disposal
24/7. To get in direct contact with our customer support team, we offer several options: Email: support@aqua-computer.de Postal address: Aqua Computer GmbH & Co. KG Gelliehäuser Str. 1 37130 Gleichen Germany Tel: +49 (0) 5508 9749290 (9-16 h CET, German and English language) - 22 - Aqua Computer GmbH &...
