5.4. Connector "USB"

5.4. Connector "USB"
5.4. 5.4. Connector "USB" Connector "USB"
This connector is used for USB communication with a PC. Connect to an internal
USB header of your motherboard. Take special care to make sure the pin align-
ment matches your motherboard!
The corresponding connector on the motherboard is usually
a 9 pin connector with two independent USB ports. Both
rows of 4/5 pins can be used to connect an USB device.

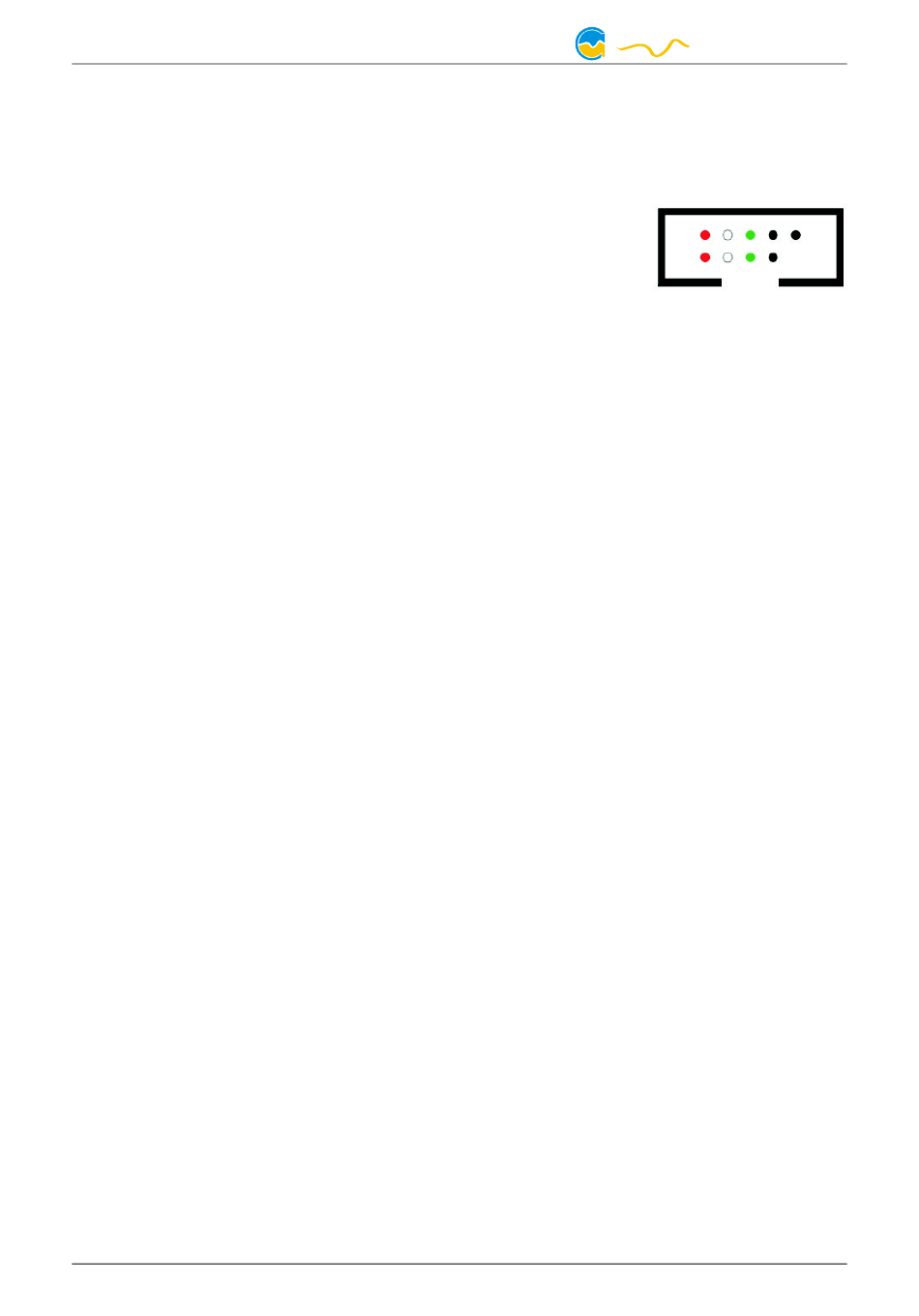

The black wires (GND) are to be connected to the side of
the missing pin, see picture with colored pin assignment.
Pin assignment: Pin 1 not connected
Pin 2 GND (black)
Pin 3 D+
Pin 4 D-
Pin 5 +5 V (red)

5.5. Connector "aquabus"

5.5. Connector "aquabus"
5.5. 5.5. Connector "aquabus" Connector "aquabus"
Connector for communication with other Aqua Computer devices. USB and
aquabus interface can be used at the same time.
Pin assignment: Pin 1 GND
Pin 2 aquabus SDA
Pin 3 aquabus SCL
Pin 4 +5 V
Compatible aquabus devices:
aquaero 6 XT (53146, 53206, 53250, 53251, 53262, 53263)
●
aquaero 6 PRO (53145, 53253)
●
aquaero 6 LT (53234)
●
aquaero 5 XT (53089, 53125, 53249)
●
aquaero 5 PRO (53090, 53252)
●
aquaero 5 LT (53095)
●
5.6.

5.6. Connector "flow sensor"

Connector "flow sensor"
5.6. 5.6. Connector "flow sensor" Connector "flow sensor"
Flow sensor and special interconnecting cable are optional accessories and not in-
cluded in delivery.
Pin assignment: Pin 1 GND
Pin 2 flow sensor +5 V
Pin 3 flow sensor signal
Compatible flow sensors:
Flow sensor with 5.6 mm nozzle (53061, requires cable 53212)
●
Flow sensor "high flow" (53068, requires cable 53212)
●
Flow sensor high flow LT (53291)
●
Flow sensor high flow 2 (53292)
●
- 6 -
(green)
(white)
